15.6 Inch FHD TFT LCD Module 1920x1080 30 Pin eDP Rear Folded Connector Laptop LCD Screen Anti Glare Notebook Display Panel
15.6 Inch FHD eDP Laptop LCD Panel
1920×1080 resolution, 30 pin eDP interface, rear-folded connector structure, anti-glare surface, 350 nits brightness, and 65% NTSC color gamut for notebook PC replacement and OEM display projects.
Product Overview
YVO1560VQE-Y2 is a 15.6 inch Full HD TFT LCD panel suitable for notebook screen replacement, OEM laptop assembly, repair projects, and LCD spare parts supply. It features 1920×1080 resolution, eDP1.2 interface, normally black display mode, rear-folded connector structure, anti-glare surface treatment, 350 cd/m² typical brightness, and 65% NTSC typical color gamut for better notebook display performance.
This model is mainly used for compatible 15.6 inch FHD notebook applications, and can also be evaluated for selected embedded eDP display projects when the mainboard signal output and mechanical structure are suitable. For replacement or project use, compatibility should be confirmed based on the original panel model, connector type, pin definition, connector position, rear-folded connector structure, outline size, thickness, and mounting structure.
Key Features
15.6 Inch Full HD Display
1920×1080 resolution for notebook PC screen replacement and OEM display projects.
eDP1.2 Interface
eDP1.2 signal interface for compatible notebook LCD panel applications and OEM integration projects.
30 Pin eDP Connector
30 pin eDP connector layout with 300E30-1010RC-G3 connector type for project matching and replacement use.
Rear-Folded Connector Structure
Rear-folded connector design for matching specific notebook LCD installation structures and cable routing requirements.
350 Nits Brightness
350 cd/m² typical brightness with anti-glare surface treatment for clear indoor viewing.
65% NTSC Color Gamut
65% NTSC typical color gamut for better color performance in notebook display applications.
Product Appearance and Detail View

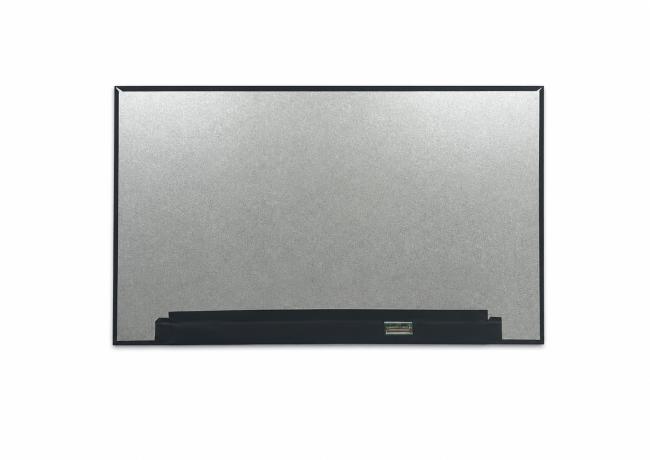

Rear-Folded Structure View
Complete rear view for checking the rear-folded connector structure, PCB area, connector position, outline structure, and installation direction.

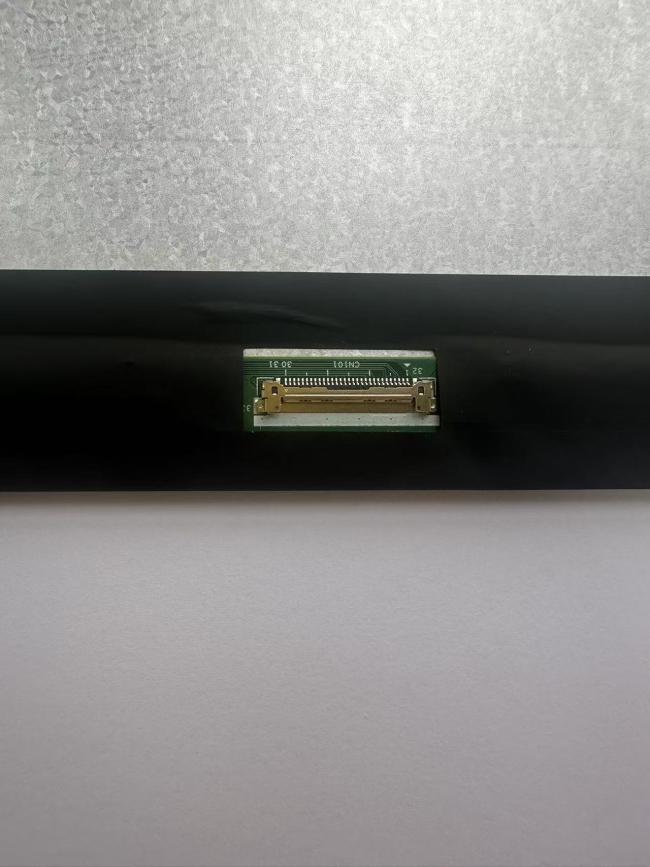

Enlarged Connector Detail
Enlarged detail view for checking the 30 pin eDP connector position, PCB area, and matching requirements.
Technical Specifications
| Model | YVO1560VQE-Y2 |
| Display Size | 15.6 Inch |
| Resolution | 1920 × 1080 |
| Active Area | 344.16(H) × 193.59(V) mm |
| Outline Dimension | 350.6(Typ.) × 205.17(Typ.) × 3.0 Max mm |
| Pixel Pitch | 0.1793 × 0.1793 mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Brightness | 300 cd/m² Min. / 350 cd/m² Typ. |
| Contrast Ratio | 1000:1 Min. / 1200:1 Typ. |
| Response Time | 20 ms Typ. / 25 ms Max. |
| Display Colors | 16.7M, 6bit + HFRC |
| Color Gamut | 65% NTSC Typ. |
| Display Mode | Normally Black |
| Signal Interface | eDP1.2 |
| Connector Type | 300E30-1010RC-G3 |
| Structure Type | Rear-Folded Connector Structure |
| Input Voltage | 3.3V Typ. |
| Power Consumption | 750 mW Max. @ Mosaic pattern, FV=60Hz |
| Surface Treatment | AG Anti-Glare |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| RoHS | Compatible |
Compatibility Notice
Compatibility should be confirmed before ordering. Please check the original LCD panel model, resolution, connector type, pin definition, connector position, rear-folded connector structure, outline size, thickness, and mounting structure. Our team can help match a suitable replacement model based on your original LCD panel part number. For non-laptop applications, compatibility should also be confirmed based on the mainboard eDP signal output and mechanical installation space.
Application Scenarios
LCD Panel Supply and Model Matching Support
We support laptop LCD panels, TFT LCD modules, touch screens, Raspberry Pi displays, digital photo frames, HDMI-compatible LCD displays, driver boards, and related display products.
For laptop LCD panel projects, we can help match suitable models based on the original panel number, screen size, resolution, interface, connector position, outline size, brightness, structure type, and application requirements.
Quality Check Before Shipment
Products are checked before shipment based on the product type, including appearance, packaging, connector condition, basic display function, and when applicable, touch response and power input. For sample orders or project-based orders, we can also help confirm key specifications before shipment.
FAQ for Laptop LCD Panel Orders
How do I confirm compatibility?
Please send the original LCD panel model number, screen size, resolution, connector type, connector position, rear structure type, and clear photos of the front and rear side. We will help check whether this model or a suitable replacement can match your requirement.
Can you supply samples?
Yes, sample orders are available for model confirmation and project testing.
What information should I provide before ordering?
Please provide the original panel model, required quantity, application, delivery country, and any special requirements such as brightness, interface, connector position, rear-folded structure, or packaging.
Do you support bulk orders?
Yes, small-batch and bulk orders can be supported based on stock status, model availability, and project requirements.
Can you help match replacement models?
Yes, we can help recommend suitable LCD panel models based on the original screen model and key specifications.
