Large Venue 3LCD Laser Projector with 20,000 Lumen Brightness WUXGA Resolution and 360° Flexible Installation
Price:
Negotiable
MOQ:
1pc
Delivery Time:
5-20days
Brand:
SMX
Product Description

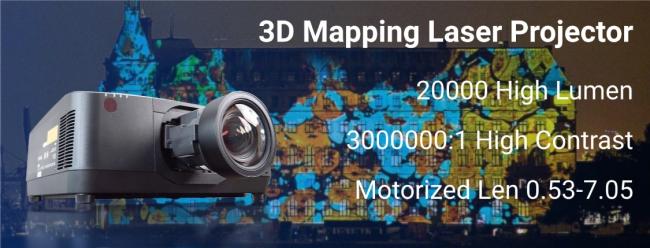

SMX 20000 Lumen 3LCD Laser Projector
The SMX MX-X20000U is a professional 3LCD laser projector delivering 20,000 lumens of brightness. Designed for commercial, public space, and higher education applications, it features advanced installation capabilities and comprehensive connectivity options. With a full range of optional motorized lenses and 360° flexible installation, this projector offers exceptional versatility.
HDBaseT input provides a single connection for uncompressed full HD digital video, audio, Ethernet, power, and control signals. The HDBaseT Repeater enables signal cascading for edge-blending or stacking applications.
Key Features
- 20,000 High Lumen Output
- 3,000,000:1 High Contrast Ratio
- WUXGA Native Resolution (1920 x 1200)
- Built-In HDBaseT Support
- Lens Shift and Keystone Correction for Flexible Installation
- Multiple Input / Output Interfaces
- 20,000 Hours Ultra-long Life Laser Light Source

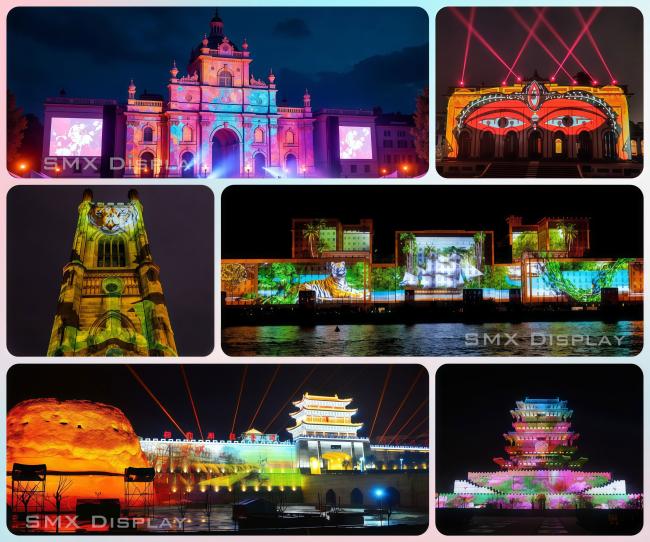

Applications
- Large conference rooms and lecture halls for business meetings and academic presentations
- Educational institutions, including universities and training centers, for enhanced learning experiences
- Exhibitions and museums for displaying exhibits and artworks
- Events and performances, including concerts and outdoor activities
- Control rooms and monitoring centers for real-time data display
- Commercial advertising and digital signage in public spaces

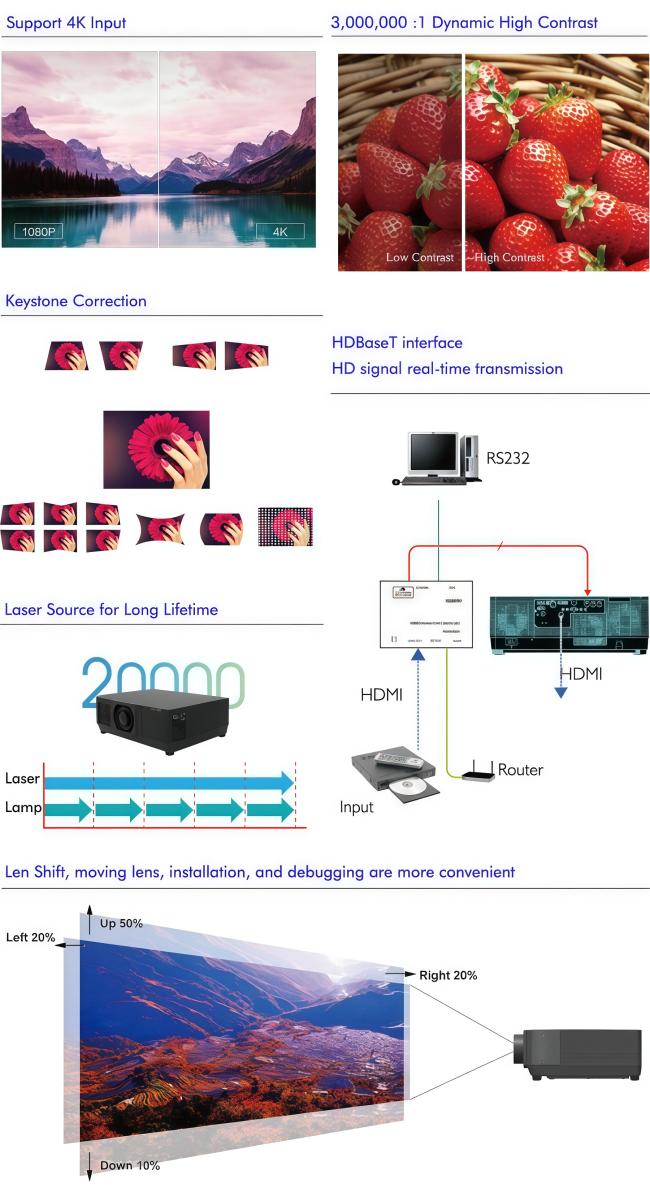

Advanced Functions
- Motorized Zoom and Focus: Simplifies installation and operation with remote-controlled lens adjustments.
- Virtual Remote: Control the projector directly from a computer via a VGA cable without additional control cables.
- Dual HDMI Inputs: Enable quick switching between presentations and simultaneous digital connections for high-definition sources.
- Lens Shift: Vertical (±65%) and horizontal (±25%) lens shift enable flexible projector placement with lossless image panning.
- Edge Blending: Seamlessly blends multiple projected images to display a single high-resolution image.
- Closed Dustproof Design: Maintenance-free operation without filter replacement requirements.
- 360° Flexible Installation: Allows complete rotation for versatile mounting options.
Technical Specifications
| Model | MX-X20000U |
| Brightness | 20,000 Lumens |
| Display Technology | 3x1.0" Liquid Crystal Display (3LCD) |
| Native Resolution | WUXGA (1920 x 1200) |
| Laser Lifetime | Normal mode: 20,000 hours | ECO mode: 30,000 hours |
| Contrast Ratio | 3,000,000:1 |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| Lens Shift | Vertical: ±65% | Horizontal: ±25% |
| Noise Level | Full: 46dB | Normal: 44dB | Eco1: 43dB | Eco2: 42dB |
| Input/Output Ports | VGA (1), HDMI 1.4 (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), Audio in (1), DMX512 (1), HDMI 1.4 OUT (1), Audio out (1) |
| Control Interfaces | RS232C (Input/Output), Wired Remote (Input/Output) |
| Keystone Correction | Vertical: ±30° | Horizontal: ±30° |
| Product Dimensions | 599 × 240.2 × 493.8mm (excluding lens) |
| Net Weight | 28.9kg (excluding lens) |
