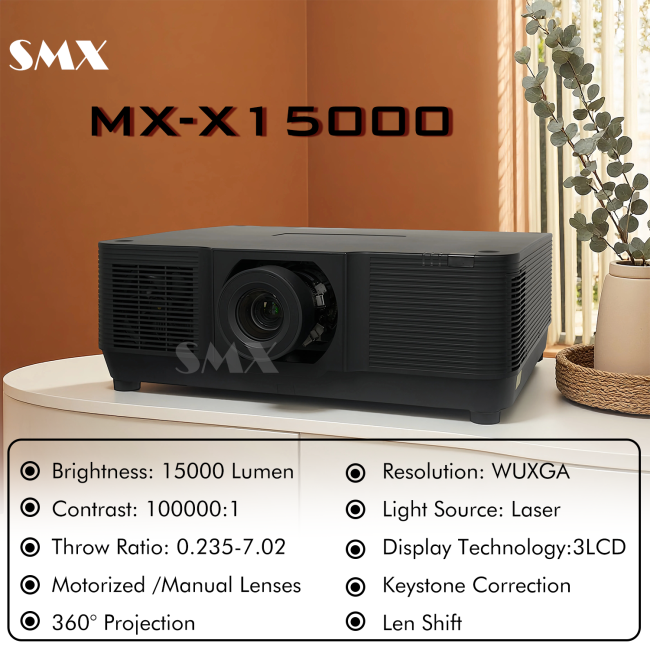

Outdoor Large Venue Engineering Projectors 15000 Lumen LCD Laser WUXGA Projector

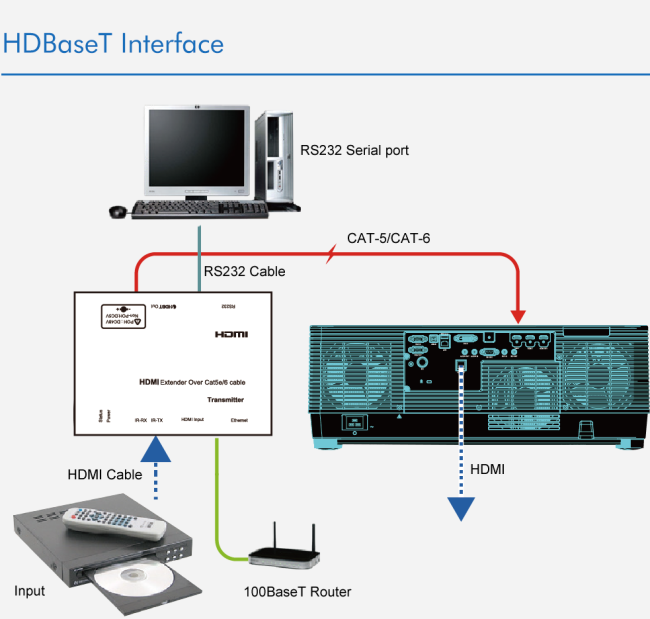

The SMX's MX-X15000U is a 3LCD Laser Projector with 15,000 lumens. It features advanced professional installation capabilities suitable for commercial and public spaces, as well as higher education applications. With multiple digital inputs, it connects to any computer or high-definition device. Offers a full range of optional motorized lenses and 360° flexible installation. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, Ethernet, power, and control signals.
Key Features:
- 15,000 Lumen High Brightness
- 1,000,000:1 High Contrast
- 20,000 Hours Laser Lifespan
- Support 360° projection
- Zoom&Focus&Lens Shift function
- Up to 500'' super big screen
- Versatile Installation Capability
Recommended Applications:
Outdoor Large Venue Projection, 3D Mapping & Building Projection, Immersive Experience Projection, 3D Hologram Projection, Exhibitions and Museums, Commercial Advertising and Digital Signage.
Laser Light Source
With a lifespan of 20,000 hours, assuming 4 hours of use per day, the light source can be used for around 13 years.
3LCD Display Technology
3LCD is a projection technology that uses three separate liquid crystal panels (one each for red, green, and blue) to create a bright, vibrant, and color-rich image.

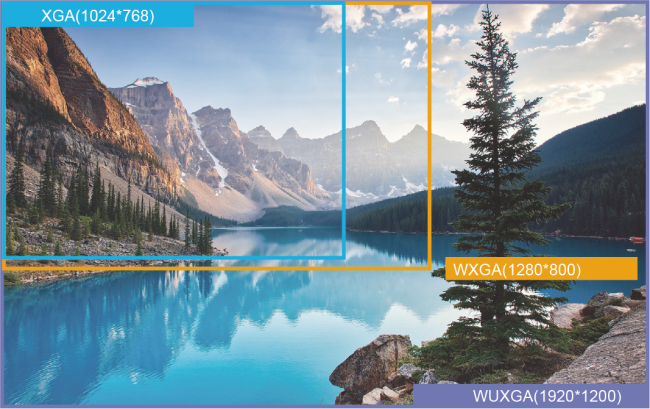

WUXGA Resolution (1920*1200)
WUXGA offers higher vertical resolution than 1080p, capable of showing greater detail, and is suitable for professional presentations and high-quality video playback.

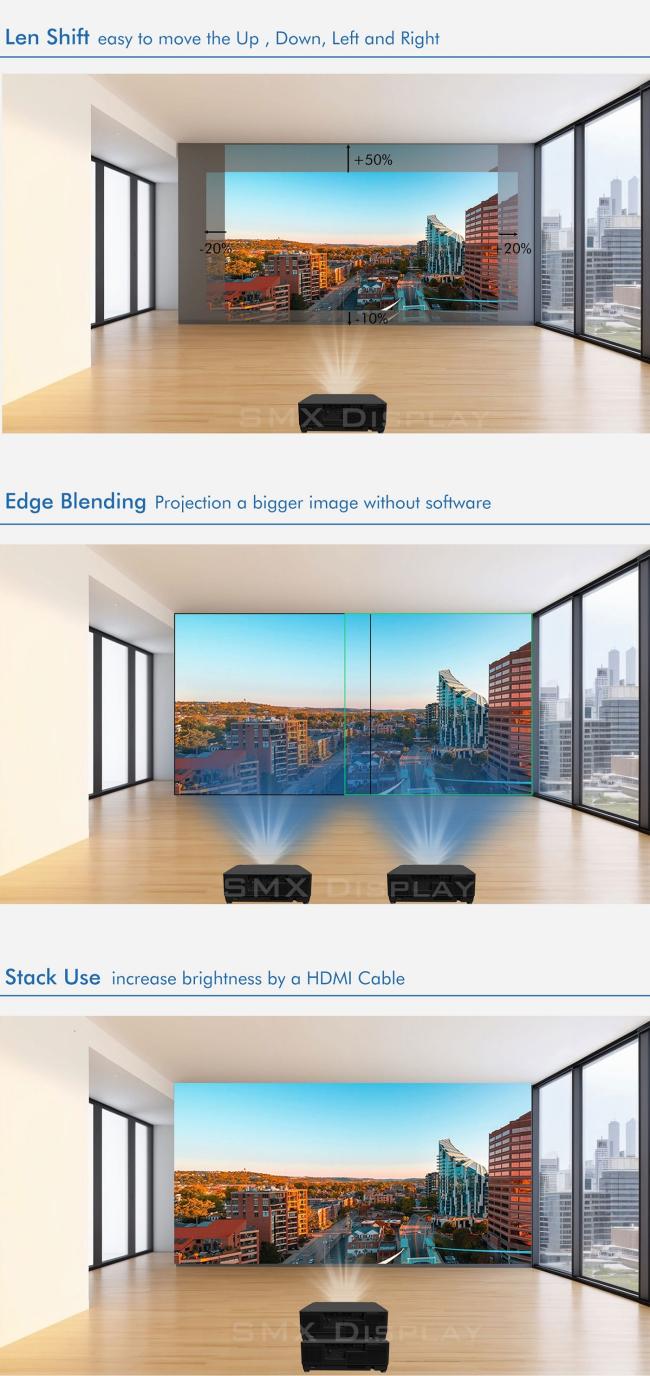

Lens Shift
Vertical and horizontal lens shift enable flexible projector placement. It allows lossless panning of the image through the menu, and users can easily adjust the position of the projected image.
High Contrast
The high contrast ratio of 1,000,000:1 significantly improves the projector's image quality, enhancing color performance, detail recognition, and overall viewing experience.

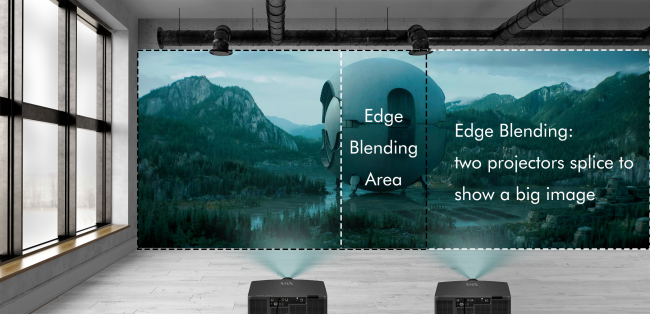

Edge Blending
The edge blending function allows multiple projectors to splice together a complete picture, achieving seamless connection, ultra-large screen, bright and vivid, and high-resolution effects.

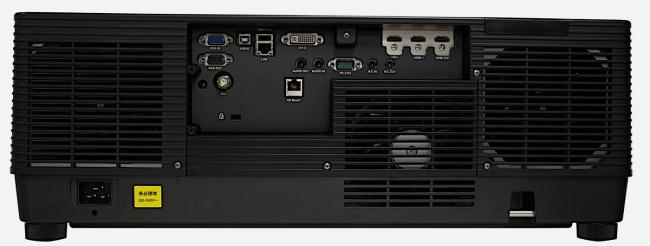

Multiple Ports
Specifications
| Model | MX-X15000U |
| Brightness (Ansi Lumens) | 15000 lumen |
| Light source | Laser |
| Overall Specifications | |
| Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source | |
| Life time (Normal/ECO mode) | 20000hrs |
| Projection Lens | |
| Len Type | Zoom Lens |
| Zoom/Focus | Manual(Standard Len, more lens, pls check the lens sheet) |
| Throw Ratio(16:10) | 1.46-2.95 |
| F#(Wide-Tele) | 1.7~2.37 |
| f(mm) | 24.4-48.6 |
| Zoom Ratio | 2 |
| Screen Size | 40-500 inch |
| Weight | Approx 0.8kg |
| Lens Shift V | +50%,-10% |
| Lens Shift H | ±20% |
| Contrast Ratio(Min) | 100000:1 |
| Noise(dB) | Normal(90%): 35dB / ECO1(75% ): 32dB / ECO2(45% ): 32dB |
| Uniformity(Actual Min)-JISX6911 | 80% |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |
| Terminal(I/O port) | |
| Input | VGA *1 HDMI 1.4(IN) *2 USB-A *1(5V/1.5A) USB-B *1(Display) RJ45 *1(Display) DVI-D *1 HD BaseT *1 HD-SDI(3G-SDI) Optional Audio in (mini jack,3.5mm) *1 (VGA/DVI-D share) |
| Output | VGA *1 HDMI 1.4(OUT) *1 Audio out (mini-jack,3.5mm) *1 |
| Control | RS232 *1 RJ45 *1 (Control) USB-B *1 (For upgrade) Wired Remote(IN) *1 Wired Remote(OUT) *1 |
| Other Functions | |
| Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |

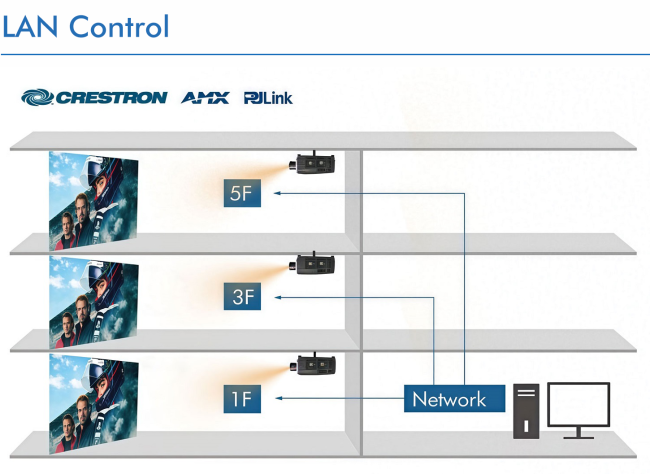

| LAN Control | LAN Control-RoomView (Crestron) Yes LAN Control-AMX Discovery Yes LAN Control-PJ Link Yes |
| Scanning Frequency | H-Synch Range: 15~100KHz V-Synch Range: 24~85Hz |
| Display Resolution | Computer Signal Input: VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz Video Signal Input: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Others | 360° omnibearing installation Edge Blending: Yes |
| MAX Dimensions (WxHxD mm) | 600*218*503 |
| Net. Weight (KG) | ~25kg |
| Manual Languages | Chinese, English |
| Standard Accessaries | Power cord(3m,Black), Remote control, HDMI Cable |
Optional Lenses
| Model# | OL-MX13ZL | OL-MX15ZL | OL-MX40ZLM | OL-MX41ZLM | OL-MX43ZLM | OL-MX50SLM |
| Lens Type | Zoom Lens | Zoom Lens | Zoom Lens | Zoom Lens | Zoom Lens | Zoom Lens |
| Zoom/Focus | Manual | Manual | Motorized | Motorized | Motorized | Motorized |
| F#(Wide-Tele) | 1.7-2.37 | 2.2-2.7 | 2.0-2.5 | 1.7-2.0 | 2.2-2.6 | 1.9-2.1 |
| f(mm) | 24.4-48.6 | 76.6-116.5 | 13.3-18.6 | 21.8-49.8 | 49.7-99.8 | |
| Throw ratio (16:10) | 1.46-2.95 | 4.59-7.02 | 0.79-1.11 | 1.30-3.02 | 2.99-5.93 | 0.6-0.75 |
| Zoom Ratio | 2 | 1.52 | 1.4 | 2.3 | 2.0 | 1.3 |
| Screen Size | 40-500 inch | 60-500 inch | 50-500 inch | 50-500 inch | 50-500 inch | 60-500 inch |
| Weight | approx.0.8kg | approx.1.0kg | approx.1.63kg | approx.1.8kg | approx.1.8kg |
