High Contrast 4900 Lumens 3LCD Laser Projector For Business Conference Room
SMX MX-STD4900U Standard Throw Laser Projector
The SMX MX-STD4900U is a 3LCD Laser projector with 4900 lumens brightness. It is a high performance, multifunctional projector suitable for a variety of applications, including classrooms, conference rooms, auditorium and home theaters. It has a range of features that deliver excellent image quality, simple operation, and reliable performance. With its lumen brightness, users can project vivid and clear images even in bright environments. This projector also offers a wide range of connectivity options, making it compatible with a wide range of devices.
Key Features:
- 4900 Lumen Brightness
- Native Resolution WUXGA
- High Contrast 5,000,000 :1
- 360° Flexible Installation
- Built-in 16W Speaker
- Advanced Keystone Correction
Application:
- Classroom
- Conference Room
- Auditorium
- Home Theat
WUXGA Resolution
High Contrast
Key Correction

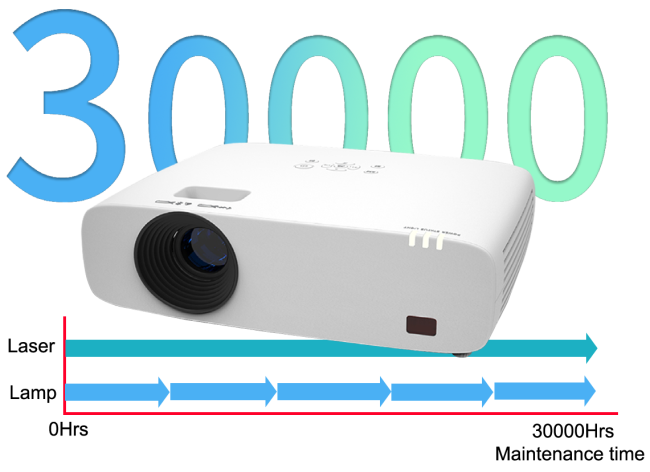

Laser Source Life Time
Specification
| Model No. | MX-STD4900U | |
| Brightness | ||
| Brightness (Ansi Lumen) | 4900 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Light source Lifetime |
Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs(TBD) | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6~1.76 | |
| f | 19.158~23.018mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| CR | Dynamic Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |

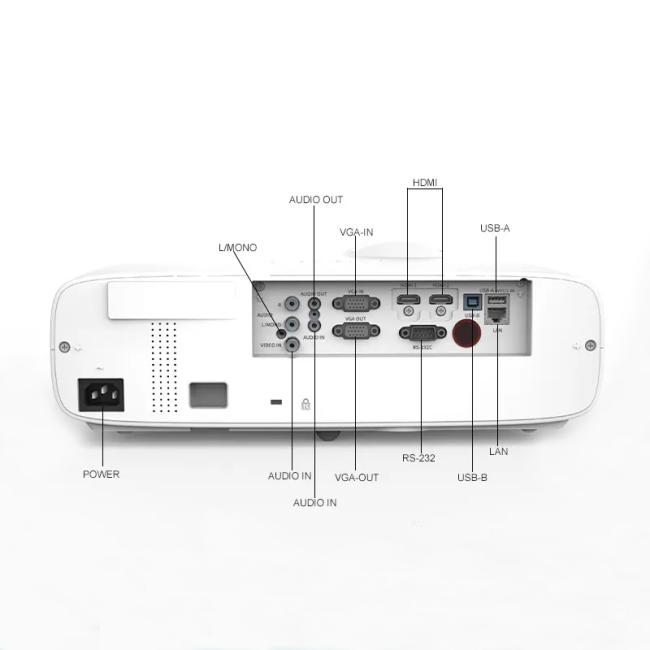

| Terminal(I/O port) | ||
| Input |
VGA, HDMI *2, Video, Audio in *2, USB-A, USB-B, RJ45 |
|
| Output | VGA, Audio out | |
| Control | RS232, RJ45, USB-B, LAN | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Other Functions | ||

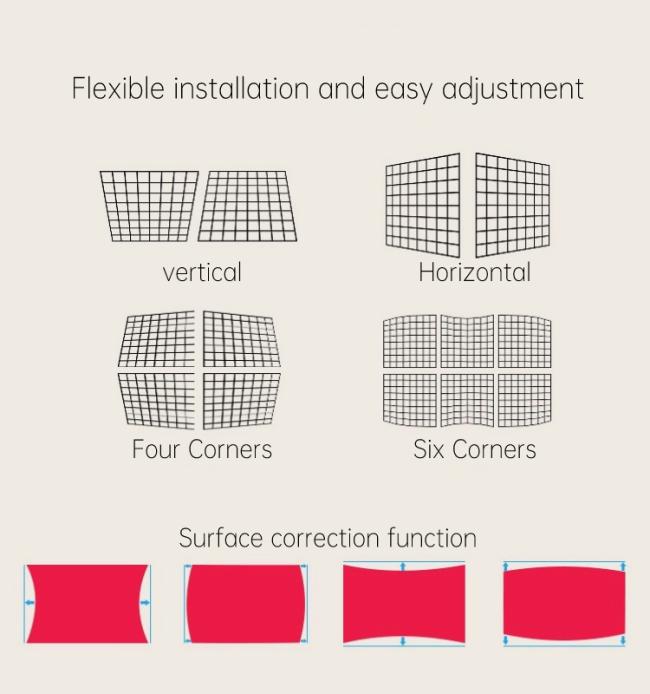

| Keystone | Keystone Correction (Lens@center) |
V: ±30° / H:±30° Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune |
| LAN Control | LAN Control | Yes |
| SW Setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Auto Ceiling | Yes | |
| 360° projection | Yes | |
| Dimension&Weight | ||
| Product (WxDxH mm) |
390*294*127 | |
| Net. Weight (KG) | 5 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord Remote control | |
