Professional 8200 Lumen Movie Theater Projector With 300 Inch Screen Size
SMX MX-VL820U High Performance 8200 Lumen LCD Laser Projector
The SMX MX-VL820U is a high brightness laser projector with a luminance of 8200 lumens, which is suitable for business, education and public spaces. The MX-VL820U has a life span of 20, 000 hours, and is capable of projecting an ultra large screen with a WUXGA resolution of 300 inches. Equipped with H/V Lens Shift, 1.6 × Optical Zoom, Advanced Keystone Correction and 360 ° Projection, the Projector offers flexible setup options.

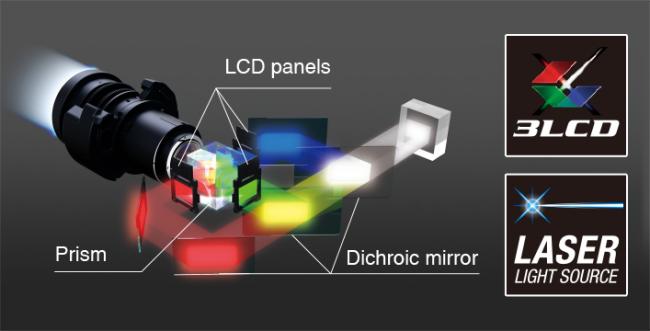

Laser Light Source&3LCD
-Images appear immediately after power on due to instantaneous start up of the laser
-Dual blue laser systems provide best in class white balance over the life of the projector
-Inorganic optical components create longer lifetime and greater peace of mind
-LCD technology provides impressive and precise pictures.
Key Features:
- 8,200 Lumens
- 5,000,000:1 High Contrast
- 20,000 Hours Ultra-long Laser Lifespan
- WUXGA (1920*1200)
- Keystone Correction
- Edge Blending
- 360°Projection
- Support 4K High-definition Input
Application Area:
- Home Cinema
- Hologram Projection
- Immersive Experience
- Commercial Display
- Art Exhibition&Museum
Fits Any Environment

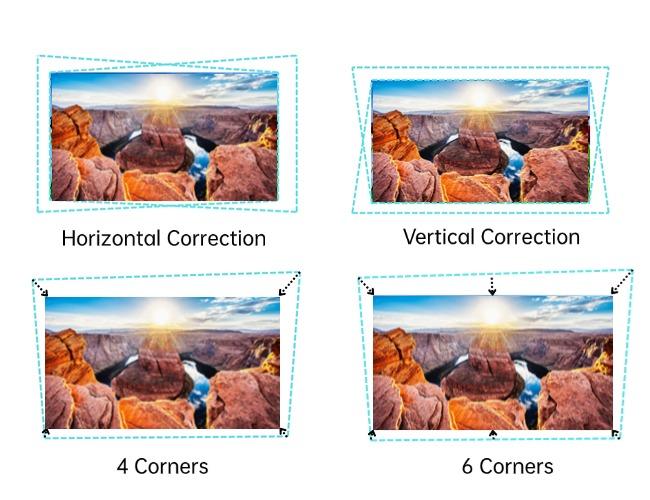

The SMX MX-VL820U features tool-free lens shift control, 1.6x optical zoom, H/V ±30° keystone correction, 6-corner geometry correction and 4-corner adjustment options to adjust the image without shifting, ensuring it fits in any environment.
SMX WUXGA Native Resolution
High Contrast
20000Hours Ultra Long Lifespan

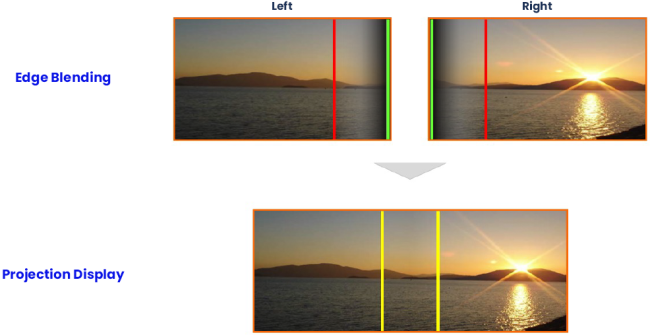

Edge Blending for Multi Projectors
Flexible Lens Shift
Specification
| Model No. | MX-VL820U | |
| Brightness(Lumen) | 8200 | |
| Resolution | WUXGA | |
| Light source | NICHIA LASER | |
| Overall Spec | ||
| Panel | Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time | Full Normal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | 1.58-2.02 |
| f | 15.3mm-24.6mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.08 (wide)-1.76 (tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:＋45%～0%, H:±21% |
|
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) *1 | 39dB(Normal) 31dB(ECO1) 29dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| HD BaseT | *1(Optional) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
425 | |
| Power Consumption (ECO1) (Max) |
285 | |
| Power Consumption (ECO2) (Max) |
235 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient 0°C~50°C |
| 1700m＜Altitude＜3000m, Ambient 0°C~40°C |
||
| Operating humidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control--AMX Discovery | Yes | |
| LAN Control--PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5 minutes no signal as default) | |
| Picture mode | Dynamic,Standard,Cinema, Colorboard,sim-DICOM,Blackboard(Green) |
|
| Cooling time | 0s,normal,30s | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° projection | Yes |
| Edge Blending | Yes | |
| Dimension&Weight | ||
| Product Size (mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord, HDMI cable,Remote control | |
