5000 Lumen Home Cinema Projector Audio Visual Room Movie Laser Projector
Price:
1980usd/pc
MOQ:
1pc
Delivery Time:
5-20days
Brand:
SMX
Product Description
SMX 5000 Lumen Ultra Short Throw Laser Projector - High-end Home Theater
The SMX MX-WPL500U is an ultra-short-throw projector with 5,000 high lumens. Experience innovative cinematic visuals and immersive entertainment with SMX ultra short-throw laser projectors. In your home theater, you can enjoy true colors and light and dark details for the most realistic and stunning experience.
Key Features
- Ultra Short Throw Lens
- Bright Image in Large Space
- 5,000,000:1 High Contrast
- 360° Flexible Projection
- Horizontal and Vertical Keystone Correction
Main Applications
- Home Cinema
- Private Theater
- Conference Room
- Audiovisual Room
Ultra Short Throw Lens
The MX-WPL500U ultra-short throw lens enables 100" images to be projected from just a few inches away. This short-throw lens eliminates glaring lights, distracting shadows, and image hotspots, making it ideal for small conference rooms, classrooms, bedrooms, and audio-visual rooms.
High Contrast
High Brightness and Color Performance
The MX-WPL500U boasts a high brightness rating of 5,000 lumens, which means it can deliver bright, clear images even in well-lit rooms. This makes it a great choice for presentations or events where you need to project in a brightly lit space.
WUXGA Resolution
Reduce Shadow Interference
Barrier-free viewing: Since the distance between the projector and the screen is very close, there will be no shadow when the users are watching, ensuring that the entire picture can be seen clearly, improving the viewing experience.
Keystone Correction
Low Noise System
The MX-WPL500U, with the closed internal circulation design and only 27dB low noise in ECO mode, allows users to hear the original sound of the video and enjoy a quiet viewing environment.

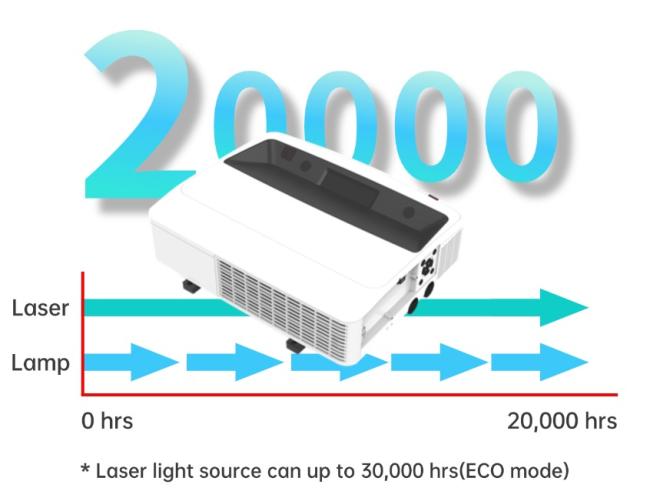

Laser Light Source

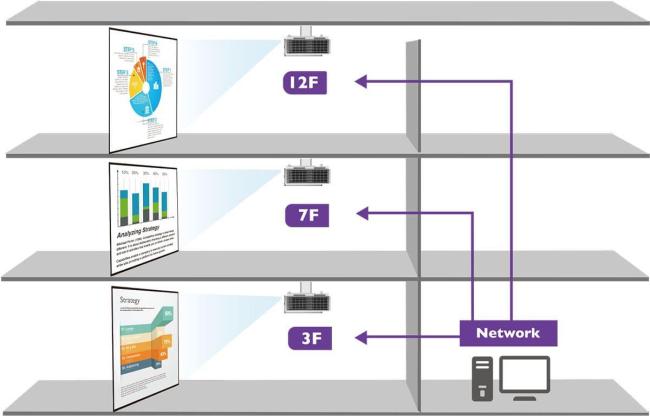

LAN Control
The MX-WPL500U projector is compatible with Crestron RoomView, PJ Link, and AMX Discovery, enabling centralized device management for better operational efficiency.
Specifications
| Model No. | MX-WPL500U |
| Brightness | |
| Lumen | 5000 |
| Overall Spec | |
| Panel | Display Panel | 3x0.63" with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA(1920x1200) |
| Light source | |
| Lifetime | Normal mode | 20000hrs ECO2 mode | 30000hrs |
| Projection Lens | |
| F | F1.7 |
| f | 2.94mm |
| Lens Vendor | RICOH |
| Zoom/Focus | Manual |
| Throw Ratio | 0.235:1 |
| Screen size | 80-120" |
| CR | Contrast Ratio | 5000000:1 |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | |
| Input | VGA*1,HDMI*2,USB-A*,USB-B*1(Display),RJ45*1(Display), Audio in*1 |
| Output | VGA*1 ,Audio out*1 |
| Control | RS232*1,RJ45*1,USB-B *1 |
| General Spec | |
| Audio | Speaker | 16W*1 |
| Other Functions | |
| Keystone | Keystone Correction (Lens@center) | V: ±5° H:±5° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) | Yes LAN Control-- AMX Discovery | Yes LAN Control-- PJ Link | Yes |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Others | 360° projection | Yes |
| Dimension&Weight | |
| Product Size (WxHxD mm) | 520x435x168 |
| Net. Weight (KG) | 11 |
| Accessory | |
| Manual Languages | Chinese, English |
| Standard Accessories | Power cord, Remote control |
