High Brightness 4500 Lumen DLP Laser Projector with WXGA Resolution for Classroom
Price:
759usd/pc
MOQ:
1pc
Delivery Time:
5-20days
Brand:
SMX
Product Description
High Brightness HD DLP Laser Projector For Classroom 4500 Lumen
Product Overview

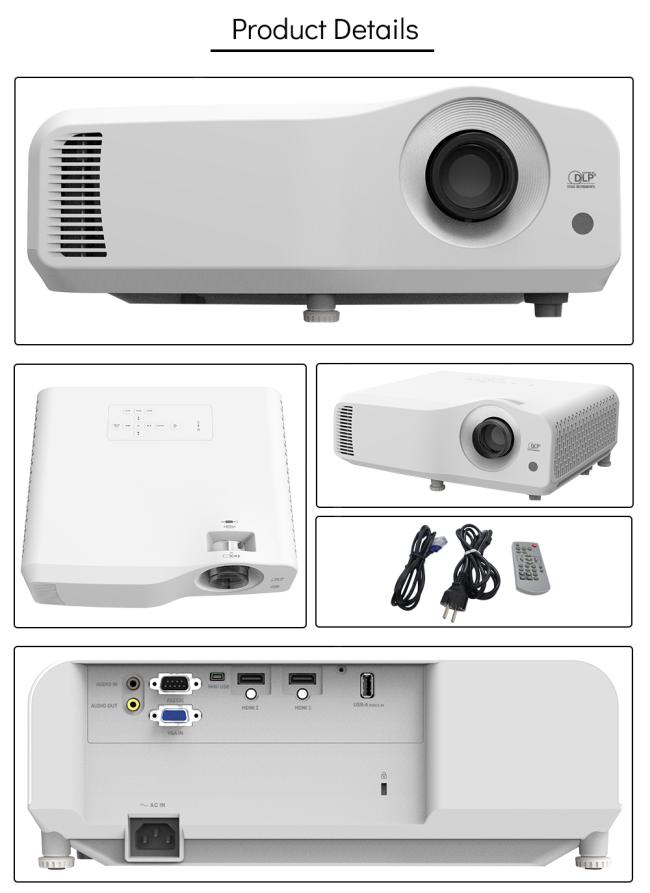

SMX 4500 Lumen DLP Short-Throw Laser Projector with WXGA for Classroom
SMX DLP laser projector is a type of projector that uses DLP technology in combination with a laser light source to create bright, high-quality images for various applications such as presentations, home theater, classrooms, and business meetings.
Key Features
- Laser Light Source: Uses laser diodes as the light source instead of traditional lamps, offering longer lifespans, consistent brightness, and better color accuracy.
- DLP Technology: Utilizes microscopic mirrors to reflect light and create images, providing sharp image quality, high contrast ratios, and fast response times ideal for detailed visual presentations.
- High Brightness: Produces high levels of brightness, ensuring clear visibility even in well-lit environments, suitable for large venues or rooms with ambient light.
- Longevity and Reliability: Laser light sources have longer lifespans compared to traditional lamps, offering thousands of hours of maintenance-free operation with reduced downtime and lower total cost of ownership.
Technical Specifications
| Model No. | MX-DL4500W |
| Brightness | 4500 lm |
| Native Resolution | WXGA, 1280 x 800 |
| Contrast Ratio (FOFO) | Min. 20000:1 |
| Display Color | 30 Bits (1,037,000,000 colors) |
| REC709 | Typ. 90% / Min 82% |
| Lens (F=, f=mm) | F=2.42~2.62 ; f=22~25.79 |
| Aspect Ratio | Native 16:10 |
| Throw Ratio | 1.544-1.860 |
| Zoom Ratio | 1.2X |
| SSI Source Life (Normal) | 20,000 hrs |
| Keystone Adjustment | 1D(Manual), Vertical +/- 30 degrees |
| Auto Keystone | Yes (Vertical) |
| Projection Offset | 104%±5% |
| Resolution Support | VGA(640 x 480) to WUXGA(1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120KHz |
| Focus Range (Image Size) | Mechanical: 40"(1.31M)~300"(10.21M) Optical: 40"(1.31M)~300"(10.21M) |
Interfaces
| Computer in (D-sub 15pin) | x1 |
| HDMI (1.4) | x2 |
| RS232 (DB-9pin) | x1 |
| USB (Type A) | USB 2.0 (5V/1.5A) |
| USB (Type Mini B) | x1 (1 for FW upgrade) |
| Audio in (Mini Jack) | x1 |
| Audio out (Mini Jack) | x1 |
| Speaker | 10Wx 1 |
| IR Receiver | x1 Front |
Environmental Specifications
| Dimensions (WxDxH) | 353x290x144(mm) |
| Weight | ≤ 4.8Kg |
| Normal Power Consumption (Max) | 220W |
| Normal Power Consumption (Typ) | 210W |
| ECO Power Consumption (Max) | 170W |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption | CEL Level 2 or Level 1 (at 220V 50Hz) |
| Stand-by Power Consumption | <0.5W |
| Acoustic Noise (Typ./Eco.) | 35/33 dBA |
| Operating Temperature | 0~40℃ |
| High Altitude Mode (1500~3000m) | Yes |
| Color | White |
| Security Bar | Yes |
| Kensington Security | Yes |
Included Accessories
Remote Control, Power Cord, Quick Start Guide, HDMI Cable
