High Contrast 4500 Lumen WXGA DLP Laser Projector for Classroom
Price:
759usd/pc
MOQ:
1pc
Delivery Time:
5-20days
Brand:
SMX
Product Description
High Contrast 4500 Lumen 4K DLP Laser Projector for Classroom
Product Overview

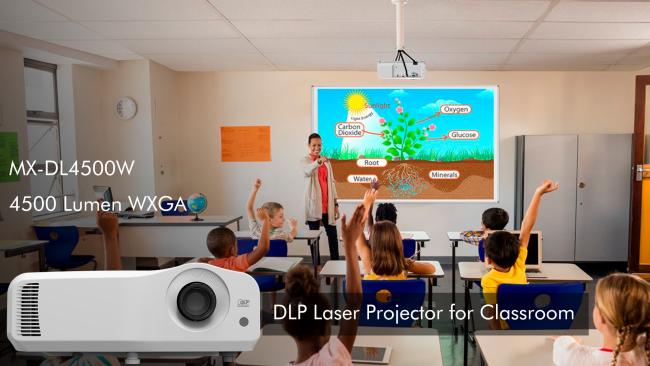

SMX DLP Standard Throw Laser Projector with WXGA for Classroom 4500lm Brightness High Contrast
The MX-DL4500W is a cost-effective laser projector that weighs just 4.5 kg and is designed for low ownership and maintenance costs for up to 30,000 hours.
It delivers stunning images with optimal black levels and vivid colors and is ideal for educational settings that require high brightness, a high contrast ratio, and flexible installation options, including H/V keystone and 4-corner adjustment.

Key Features
- Laser Light Source: DLP laser projectors use laser diodes as the light source instead of traditional lamps. Laser light sources offer several advantages, including longer lifespans, consistent brightness, and better color accuracy.
- DLP Technology: DLP technology uses microscopic mirrors to reflect light and create images on the screen. It provides sharp image quality, high contrast ratios, and fast response times, making it ideal for detailed visual presentations.
- High Brightness: Laser projectors typically produce high levels of brightness, ensuring clear visibility even in well-lit environments. This feature makes them suitable for large venues or rooms with ambient light.
Technical Specifications
| Model No. | MX-DL4500W |
| Brightness | 4500lm |
| Native Resolution | WXGA, 1280 x 800 |
| Contrast Ratio | 20000:1 |
| Display Color | 30 Bits (1,037,000,000 colors) |
| Lens (F=, f=mm) | F=2.42~2.62 ; f=22~25.79 |
| Aspect Ratio | Native 16:10 |
| Throw Ratio | 1.544-1.860 |
| Zoom Ratio | 1.2X |
| Lifetime | 20,000 hrs |
| Keystone Adjustment | 1D(Manual), Vertical +/- 30 degrees |
| Auto Keystone | Yes (Vertical) |
| Projection Offset | 104%±5% |
| Resolution Support | VGA(640 x 480) to WUXGA(1920 x 1200) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120KHz |
| Focus Range(Image Size) | Mechanical:40"(1.31M)~300"(10.21M) Optical:40"(1.31M)~300"(10.21M) |
| Computer in (D-sub 15pin) | x1 |
| HDMI (1.4) | x 2 |
| RS232 (DB-9pin) | x1 |
| USB (Type A) | USB 2.0 (5V/1.5A) |
| USB (Type Mini B) | x 1 (1 for FW upgrade) |
| Audio in (Mini Jack) | x1 |
| Audio out (Mini Jack) | x1 |
| Speaker | 10Wx 1 |
| IR Receiver | x1 Front |
| Dimensions (WxDxH) | 353x290x144(mm) |
| Weight | ≤ 4.8Kg |
| Normal Power Consumption(Max) | 220W |
| Normal Power Consumption(Typ) | 210W |
| ECO Power Consumption(Max) | 170W |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption | CEL Level 2 or Level 1(at 220V 50Hz ) |
| Stand-by Power Consumption | <0.5W |
| Acoustic Noise (Typ./Eco.) | 35/33 dBA |
| Operating Temperature | 0~40℃ |
| High Altitude Mode(1500~3000m) | Yes |
| Color | White |
| Security Bar | Yes |
| Kensington Security | Yes |
| Accessories | Remote Control, Power Cord, Quick Start Guide, HDMI Cable |

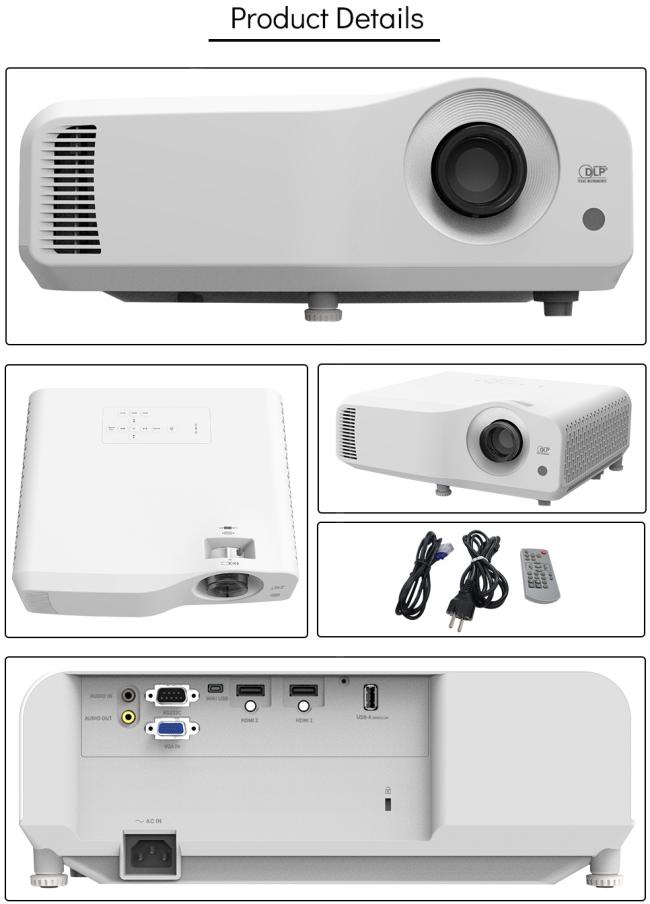

Product Details
