22000 Lumens WUXGA Resolution Dual-Color Laser Projector for Large Venue Projection Mapping
The SMX MX-X22000U 22000 Lumen Laser Projector is a high-performance 3LCD large venue projector designed for professional projection environments. With 22000 ANSI lumens brightness, WUXGA resolution (1920×1200), and an advanced dual-color laser light source, it delivers exceptional image brightness and vivid color reproduction.
Engineered for large-scale installations, the MX-X22000U is ideal for projection mapping, theme parks, immersive exhibitions, museums, concerts, and stadium projection. The projector supports flexible installation, multi-projector edge blending, and long-life laser operation, making it a powerful solution for demanding AV applications.
The MX-X22000U delivers 22000 lumens of brightness, enabling clear and vibrant projection even on very large screens or in venues with ambient lighting.
- Ideal for large venue projection
- Perfect for outdoor projection mapping
- Bright images on screens up to 500 inches
- Suitable for concerts and stage performances
The projector features WUXGA resolution, providing greater vertical detail than standard Full HD.
- Sharper text and graphics
- Excellent clarity for projection mapping
- Compatibility with professional AV content
- High-resolution immersive experiences
The MX-X22000U uses 3LCD display technology, which delivers:
- High color brightness
- Accurate color reproduction
- Smooth motion display
- No rainbow effect
This technology is widely used in professional projection systems for museum installations, exhibitions, and simulation environments.
The advanced dual-color laser engine expands the color gamut and improves brightness stability.
- Wider color range
- Stable brightness over time
- Enhanced contrast
- Improved image realism
Laser projection systems also reduce maintenance costs compared with traditional lamp projectors.
The solid-state laser light source provides up to 20,000 hours of operation, ensuring reliable performance for long-term installations.
- Minimal maintenance
- No lamp replacement
- Lower operating costs
- Consistent brightness over time
The MX-X22000U is optimized for professional projection mapping systems.
Built-in advanced tools include:
- Edge blending for multi-projector displays
- Geometric correction for irregular surfaces
- Grid image calibration
- Multi-projector synchronization
These features allow seamless projection across buildings, stages, domes, and sculptures.

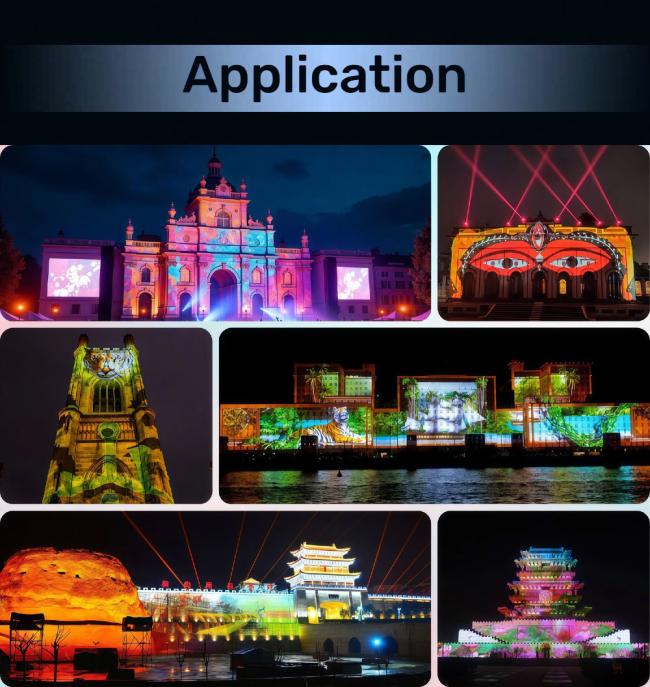

The 22000 lumen laser projector is widely used in professional AV installations.
Create large-scale projection mapping effects on buildings and landmarks.
Deliver interactive storytelling and immersive digital environments.
Powerful projection for ride simulations and visual attractions.
Dynamic visuals for concerts, live shows, and stage backgrounds.
High-resolution projection for immersive art experiences.
Ideal for theaters, stadiums, and conference halls.
| Feature | Specification |
|---|---|
| Model | MX-X22000U |
| Brightness | 22000 ANSI Lumens |
| Display Technology | 3LCD |
| Resolution | WUXGA (1920×1200) |
| Light Source | Dual-Color Laser |
| Laser Life | Up to 20,000 hours |
| Aspect Ratio | 16:10 |
| Compatible Ratios | 4:3 / 16:9 |
| Screen Size | Up to 500 inches |
The MX-X22000U supports professional installation features designed for large venues.
Installation features include:
- 360° projection
- Portrait mode

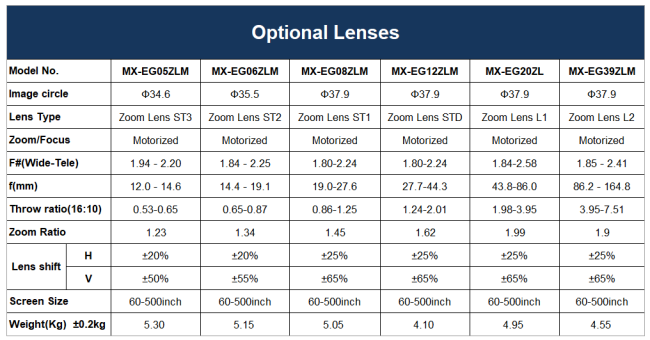

- Interchangeable lenses
- Motorized zoom and focus
- Horizontal and vertical lens shift
These features allow easy integration into complex AV environments and immersive projection setups.

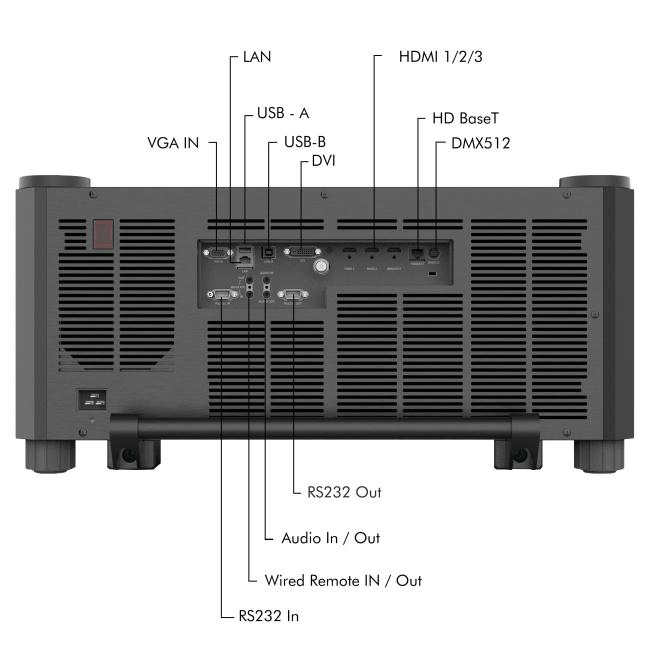

The projector provides comprehensive AV connectivity options.
- HDMI
- DVI-D
- VGA
- HDBaseT
- USB
- RS232
- LAN (RJ45)
- USB
These interfaces allow seamless integration with professional AV systems and centralized control platforms.
A 22000 lumen projector is typically used in large venues such as theaters, stadiums, projection mapping installations, and outdoor events.
Yes. 3LCD projectors provide high color brightness and smooth visuals, making them ideal for projection mapping and immersive installations.
WUXGA resolution is 1920×1200, which provides more vertical detail than standard Full HD.
Most professional laser projectors have a lifespan of around 20,000 hours without lamp replacement.
Yes. Multiple projectors can be combined using edge blending technology to create ultra-wide displays.
If you are looking for a high-brightness projector for large venue projection or projection mapping, the SMX MX-X22000U 22000 Lumen Laser Projector provides outstanding brightness, reliability, and installation flexibility.
