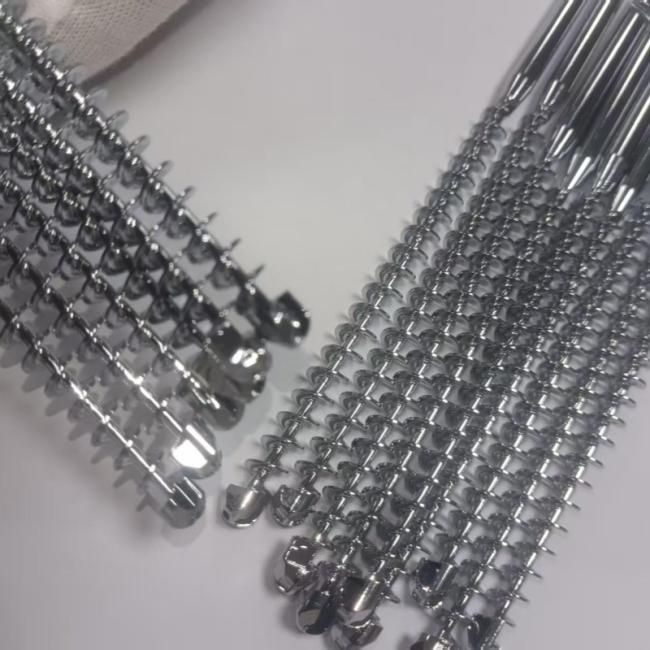

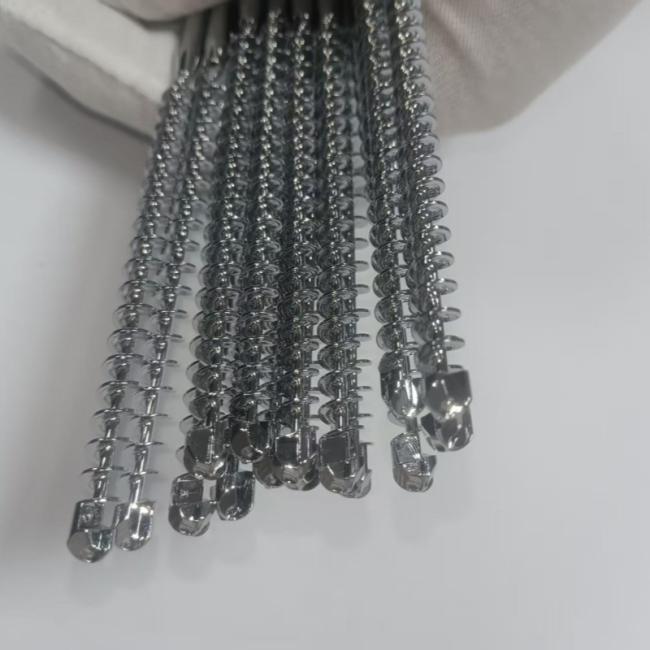

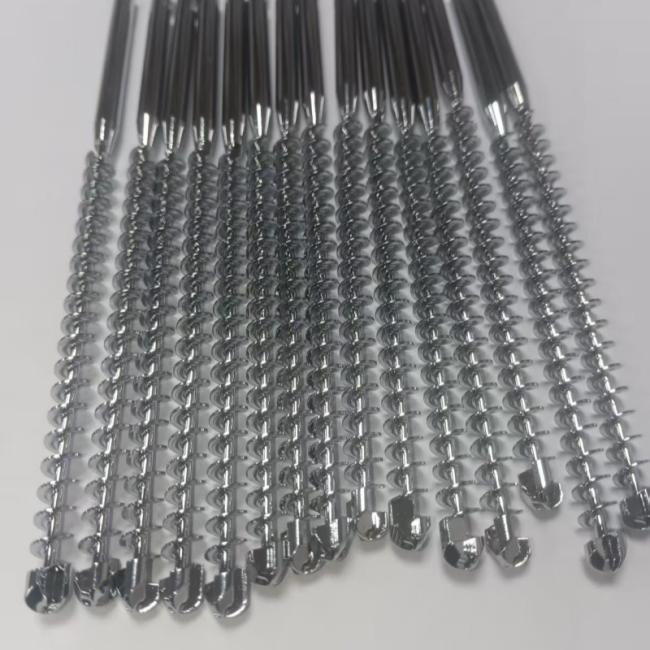

Custom 17-4PH Stainless Steel Hard Medical Drill Bit Metal Punch
Custom 17-4PH Stainless Steel Hard Medical Drill Bit Metal Punch
Product Application:
These are high-strength, precision cutting tools designed for demanding surgical and industrial applications where standard tools fail. Their exceptional hardness and wear resistance make them ideal for cutting tough materials.
-
Orthopedic & Dental Surgery: Drilling into cortical bone, titanium alloy implants, and cobalt-chrome alloys during joint replacement, trauma fixation, and dental implantology procedures.
-
Biomedical Device Manufacturing: Fabricating and modifying surgical-grade stainless steel, titanium, and high-performance polymer components for implants and instruments.
-
Aerospace & Precision Engineering: Drilling and enlarging holes in hardened stainless steels, Inconel, and other superalloys for critical components.
-
Industrial Maintenance & Repair: Used as heavy-duty hole saws and drills for on-site machining of hardened shafts, valves, and equipment frames where disassembly is not possible.
Product Description:
We engineer and manufacture custom hardened 17-4PH stainless steel drills and hole saws for the most challenging cutting tasks. Unlike conventional high-speed steel (HSS) tools, our products are machined from precipitation-hardening 17-4PH (Condition H900 or H1025) stainless steel, achieving a core hardness of 40-45 HRC. This provides superior wear resistance, rigidity, and resistance to chipping when cutting abrasive or work-hardening materials. The tools are fully customizable, allowing optimization of flute geometry, point angles, cutting lips, and chip breakers for specific materials (e.g., bone vs. titanium). For hole saws, we can produce solid one-piece designs or bi-metal configurations with replaceable pilot drills. Every tool undergoes precision grinding and stringent inspection to ensure sharpness, concentricity, and reliable performance in critical applications.
Product Technical Parameters:
| Category | Parameter | Details / Specification |
|---|---|---|
| Base Material | Alloy & Condition | UNS S17400 / 17-4PH Stainless Steel, Solution Treated & Aged (Condition H900). |
| Hardness | 40-45 HRC (Rockwell C Scale). Provides optimal balance of hardness and toughness. | |
| Key Properties | High wear resistance, good corrosion resistance, high fatigue strength, maintains sharp edge. | |
| Tool Design (Drills) | Tool Types | Solid Twist Drills, Step Drills, Core Drills (for enlarging holes), Cannulated Drills. |
| Diameter Range | Standard: 1.0 mm to 20.0 mm. Micro-drills: Down to 0.5 mm available (subject to design). | |
| Flute Geometry | 2 or 3 flutes standard. Parabolic flutes for improved chip evacuation in deep holes. Custom helix angles. | |
| Point Angle | Customized: 90° (for precise bone starting), 118°-135° (for metal), Split Point (self-centering). | |
| Shank Configuration | Straight shank, Reduced shank, Hex shank (3/8", 1/4"), or custom surgical drive (e.g., AO/ASIF). | |
| Tool Design (Hole Saws) | Construction | Type 1: Solid 17-4PH with integral ground teeth for maximum rigidity and precision. Type 2: Bi-Metal Body with replaceable HSS or Carbide teeth for cost-effective large diameters. |
| Diameter Range | Solid: 3 mm to 25 mm. Bi-Metal: 14 mm to 50 mm. | |
| Tooth Design | Variable pitch, raker set, or specialized carbide grit for abrasive composites. | |
| Manufacturing & Precision | Primary Process | CNC Precision Grinding from heat-treated blank. |
| Dimensional Tolerance | Drill Diameter: h6 tolerance (e.g., ±0.008mm for a 3mm drill). Runout (TIR): < 0.015 mm for surgical drills. | |
| Surface Finish | Cutting edges have a fine ground finish. Bodies can be passivated or electropolished for corrosion resistance. | |
| Performance & Quality | Sterilization | Fully compatible with autoclave (steam), chemical (EtO), and radiation (Gamma) sterilization cycles. |
| Inspection | 100% dimensional check (optical comparator/CMM), visual inspection under magnification, hardness spot-check. | |
| Packaging | Individually protected in crush-proof plastic sleeves or vials, labeled for traceability. | |
| Standards | Can be manufactured to comply with ISO 9714-1 (Orthopaedic drilling instruments) and other relevant ASTM/ISO specs. |
