304 316L Stainless Steel Tube Precision Cutting Slotting And Rolling Pattern
304 316L Stainless Steel Tube Precision Cutting Slotting And Rolling Pattern
Product Description
304 & 316L Stainless Steel Tube Precision Cutting, Slotting, and Knurling Service provides comprehensive custom fabrication of stainless steel tubing. This integrated service transforms standard round, square, or rectangular tubing into sophisticated functional components. We perform high-precision cutting to length, create clean and accurate slots or perforations via laser or machining, and apply uniform, decorative, or functional knurling patterns on the tube surface. The combination of these processes on corrosion-resistant 304 or 316L stainless steel results in durable, high-quality parts ideal for applications requiring precise dimensions, fluid handling, enhanced grip, or specific aesthetic appeal.
Product Processing
Our integrated manufacturing process handles multiple value-added operations in a controlled workflow.
-
Material Verification & Preparation: Certified 304 or 316L stainless steel tubing is verified against specifications. Tubes are straightened and cleaned as needed.
-
Precision Cutting: Tubes are cut to exact lengths using high-speed abrasive saws, band saws with CNC feed, or laser cutting systems, ensuring square, burr-free ends with tight length tolerances.
-
Slotting/Perforation:
-
Laser Slotting: For complex 2D patterns, slots, or holes, a CNC fiber laser cutting system with rotary attachment precisely cuts features around the tube's circumference.
-
CNC Milling Slotting: For very precise, straight, or angled slots requiring specific edge quality, CNC milling machines are employed.
-
-

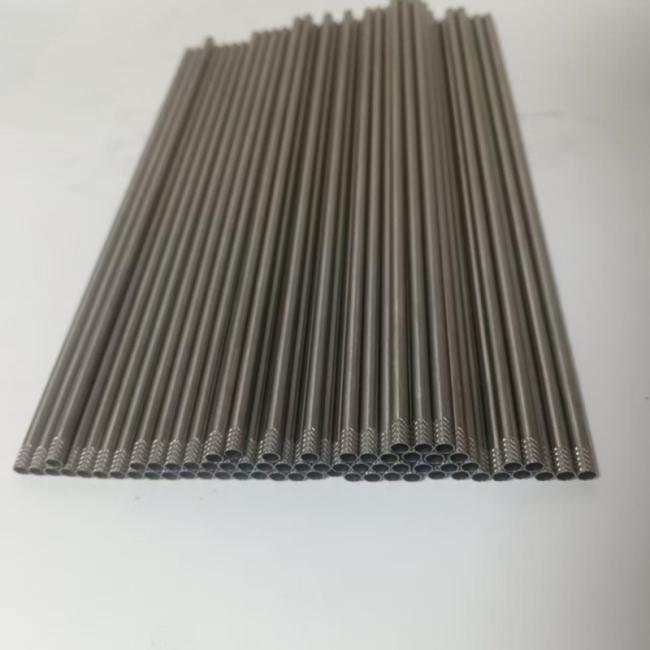

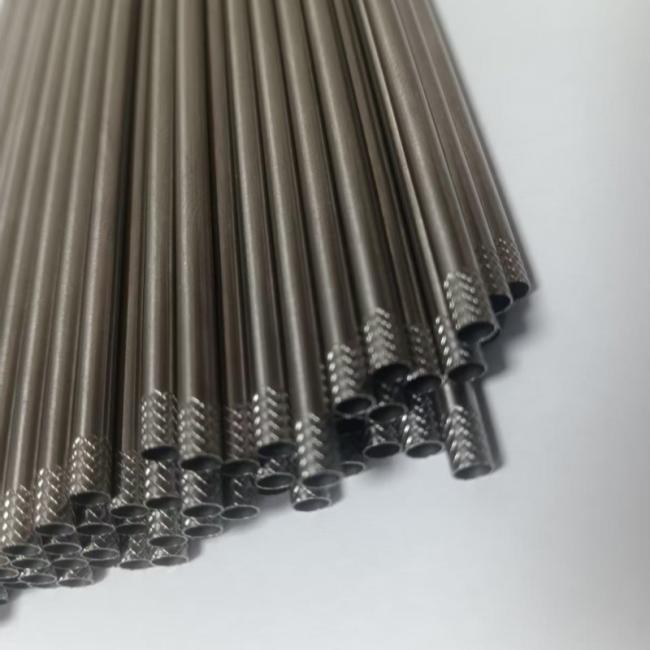

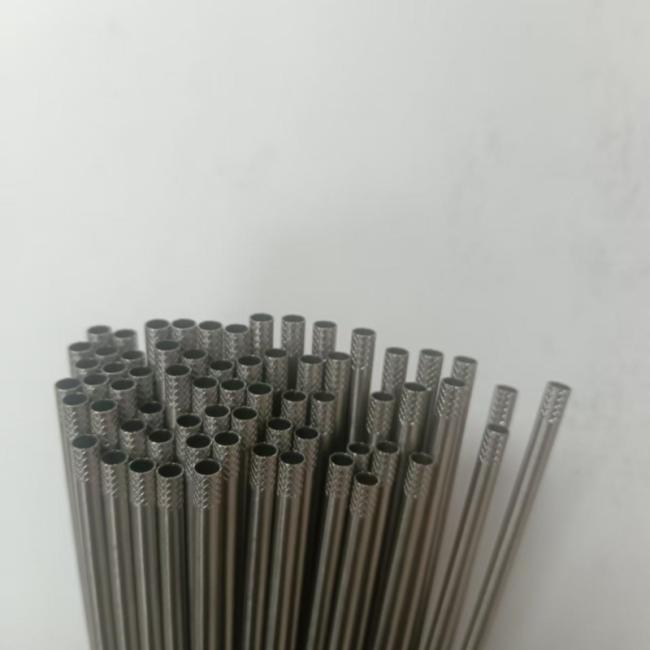

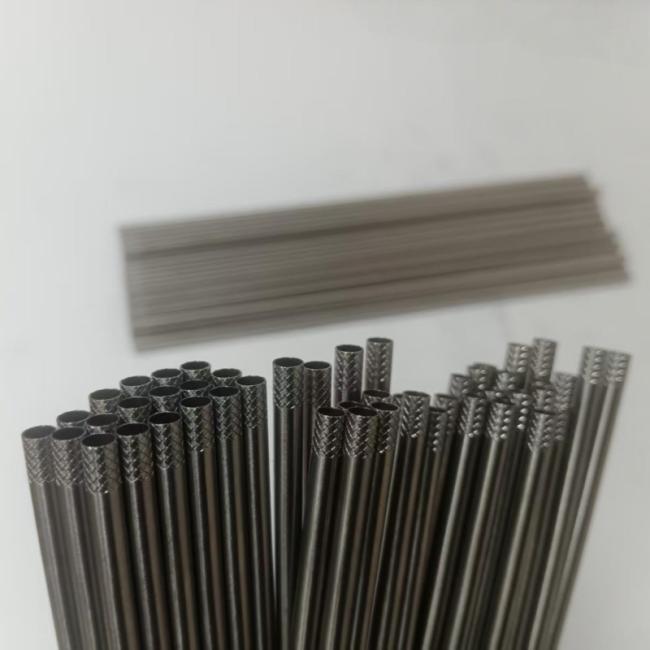

Knurling: The tube is mounted in a lathe or specialized knurling machine. Knurling wheels with the desired pattern (diamond, straight, crosshatch) are pressed against the rotating tube to displace material and create a raised, textured pattern. This can be done over the full length or in specified sections.
-
Deburring & Finishing: All cut edges and slots are meticulously deburred. The knurled surface and the entire tube may undergo vibratory tumbling, brushing, or electropolishing to smooth sharp peaks on the knurl and enhance corrosion resistance.
-
Final Inspection & Cleaning: Each tube is inspected for length, slot dimensions/placement, knurling pattern consistency, and surface quality. A final cleaning ensures a contaminant-free product.
Product Applications
-
Architectural & Design: Handrails, furniture legs, curtain rods, and decorative fixtures where knurling provides grip and visual detail, and slots allow for lighting or assembly.
-
Mechanical & Industrial: Adjustment sleeves, locking collars, hand grips, levers, and pneumatic/hydraulic cylinders where knurling ensures a secure hand grip and slots may serve as visual indicators, lubrication points, or weight-saving features.
-
Fluid Handling & Instrumentation: Custom manifolds, gauge guards, sensor housings, and sampling probes. Slots act as flow channels or mounting points, while knurling aids in hand-tightening assemblies.
-
Consumer Products: High-end pens, tool handles, fitness equipment components, and cosmetic cases.
-
Automotive & Aerospace: Custom push-pull rods, actuator covers, and lightweight structural members with integrated functional features.
Product Technical Parameters (Detailed Table)
| Category | Parameter | Specification / Details |
|---|---|---|
| Material | Grades | 304 Stainless Steel (Standard), 316L Stainless Steel (Enhanced Corrosion Resistance) |
| Condition | Annealed, Welded & Drawn (WLD), or Seamless | |
| Shape | Round, Square, Rectangular Tubing | |
| Base Tubing Dimensions | Outer Diameter (OD) / Width | Round: 6 mm to 150 mm OD. Square/Rect: 10 mm to 100 mm (Custom sizes possible) |
| Wall Thickness | 0.5 mm to 6.0 mm | |
| Standard Cut Length | Up to 6,000 mm (longer on request) | |
| Precision Cutting | Cutting Method | Abrasive Saw (Cold Saw), Band Saw, CNC Laser Cutting |
| Length Tolerance | ±0.1 mm (Precision Laser) to ±0.5 mm (Saw) | |
| End Condition | Squareness: ≤ 0.1° deviation. Burr-free. | |
| Slotting/Perforation | Process | CNC Laser Cutting (Primary), CNC Milling |
| Slot Width | From 0.2 mm (laser) upwards | |
| Slot/Pattern Type | Linear slots, helical patterns, holes, custom shapes. | |
| Slot Position Tolerance | ±0.1 mm | |
| Knurling | Knurl Type | Diamond Knurl (most common), Straight Knurl, Cross Knurl |
| Pitch (Teeth per Inch/TPI or mm) | Fine (e.g., 64 TPI / 0.4mm), Medium (e.g., 32 TPI / 0.8mm), Coarse (e.g., 20 TPI / 1.27mm) | |
| Knurl Depth | Light, Medium, or Heavy impression (affects final OD). | |
| Knurl Pattern Consistency | Uniform, repeatable pattern over specified area. | |
| Tolerances (Post-Process) | Final OD (after knurling) | Slightly increased from base OD. Can be held to ±0.05mm on critical diameters. |
| Concentricity | Knurling pattern concentric to base tube within 0.1 mm TIR. | |
| Surface & Finish | Standard Finish | Mill finish from tubing, with deburred edges. |
| Optional Finishes | Mechanical: Brushed, Satin, Polished. Electrochemical: Passivated, Electropolished (can soften sharp knurl peaks). | |
| Quality Assurance | Inspection | Dimensional (calipers, micrometers, optical), Visual (pattern, defects). |
| Material Certification | Mill Test Certificate (MTC) per EN 10204 3.1 available. | |
| Packaging | Protected packaging to prevent scratching of knurled and finished surfaces. |
