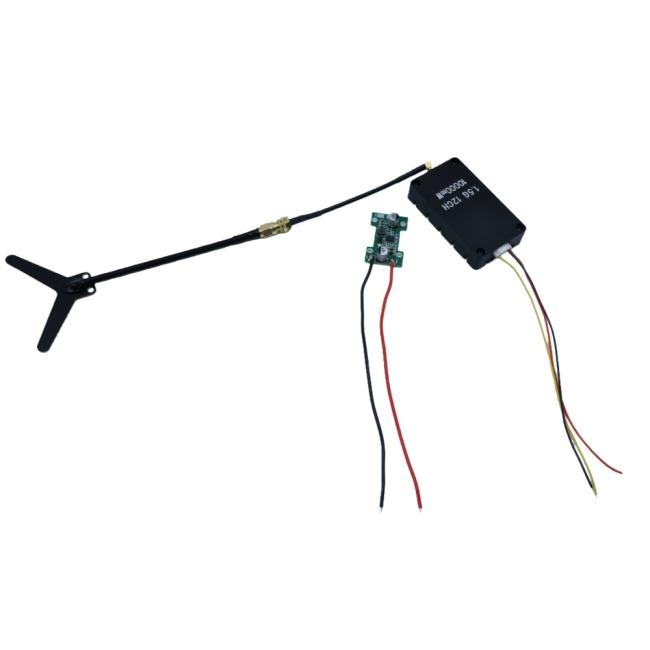

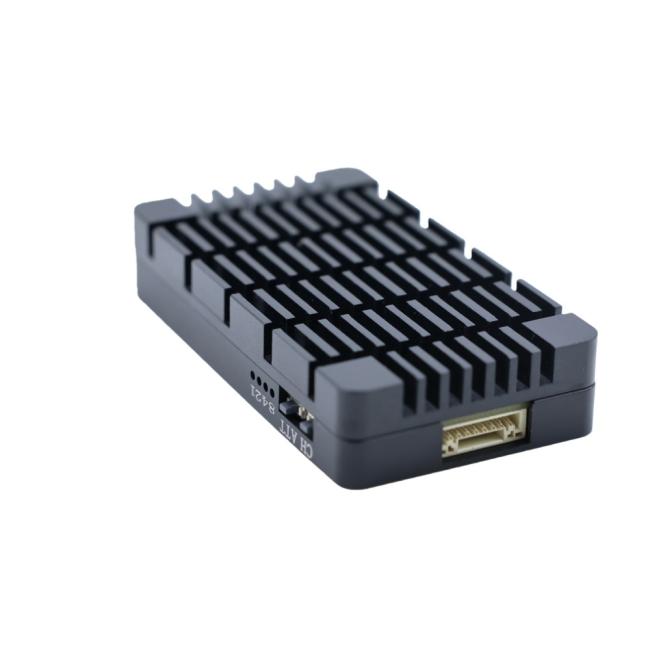

VTX 1.5GHz 8-10W 12CH Adjustable High Power 1.5GHz Video Transmitter for Drone Image Transmission with 12 Channels and Wide Frequency Range
This wireless video transmitter, ideal for drone video transmission modules, offers several advantages. It operates at a frequency of 1.5 GHz, with a wide frequency range from 1405 MHz to 1680 MHz and 11 channels for stable and interference - free signal transmission. The RF power has multiple options (200mW, 400mW, 1W, 4W, 10W), with a maximum of 10W, allowing it to meet various long - distance and high - definition transmission needs. It can be powered by a wide voltage range from 7V to 32V, providing greater flexibility. In use, it ensures smooth video transmission, enabling real - time and clear capture of the drone's flight view.
| Band Name | Kimghz technology |
|---|---|
| Model Number | KH-15S10T |
| Frequency | 1.5GHz |
| Power Output | 8-10W(200mW 400mW 1W 4W 8-10W) |
| Channel | 12CH |
| Power Supply | 7-32V |
| Protocol | IRC-Tramp |
| Frequency Range | 1405MHz-1680MHz |
Key Advantages
- 1.5GHz High-Frequency: Ensures stable, fast data transmission for real-time, smooth video streaming with minimal lag.
- Adjustable RF Power (200mW-10W): Flexible output for energy-saving short-range or high-strength long-range operations.
- 12 Channels: Reduces interference via selectable frequencies for clear, uninterrupted video.
- Wide Frequency Range (1405-1680MHz): Enhances adaptability, minimizing jamming risks in diverse environments.
- 7-28V Flexible Power Supply: Compatible with various drone batteries/power systems for stable operation across applications.
