Stable 3.3GHz FPV VTX Video Transmitter with Adjustable Power Output and 3060MHz-3500MHz Frequency Range
Price:
negotiation
MOQ:
10 Pieces
Delivery Time:
3-8days
Brand:
Kimghz technology
Product Description
able 3.3GHz FPV VTX Video Transmitter with Adjustable Power Output and 3060MHz-3500MHz Frequency Range
Product Overview
Engineered for professional drone applications like aerial surveying and FPV racing, this high-performance VTX module ensures stable video transmission with an input voltage span of 7–26V (6S battery recommended for peak reliability) and a constant 5V output voltage. It features 64 dedicated channels to minimize signal congestion in busy flight zones, along with three precision power modes (Pit, 1W, 3W) optimized for low-power testing and mid-range long-duration missions. With defined power consumption of 1.84A at 12V and 0.88A at 25.2V, it reduces unnecessary battery drain while maintaining strong signal output. The module also includes IRC functionality, durable SMA antenna connectors, secure JST-6Pin cable ports, and 30.5*30.5mm mounting holes for robust, vibration-resistant installation in industrial and racing drones.
Engineered for professional drone applications like aerial surveying and FPV racing, this high-performance VTX module ensures stable video transmission with an input voltage span of 7–26V (6S battery recommended for peak reliability) and a constant 5V output voltage. It features 64 dedicated channels to minimize signal congestion in busy flight zones, along with three precision power modes (Pit, 1W, 3W) optimized for low-power testing and mid-range long-duration missions. With defined power consumption of 1.84A at 12V and 0.88A at 25.2V, it reduces unnecessary battery drain while maintaining strong signal output. The module also includes IRC functionality, durable SMA antenna connectors, secure JST-6Pin cable ports, and 30.5*30.5mm mounting holes for robust, vibration-resistant installation in industrial and racing drones.
Technical Specifications
| Brand Name | Kimghz technology |
| Model Number | KH-ALV3303AC |
| Origin | China |
| Frequency | 3.3GHz |
| Power Output | Pit/1W/3W |
| Channels | 64CH |
| Power Supply | 7-26V |
| Protocol | IRC |
| Frequency Range | 3060MHz-3500MHz |
Product Images

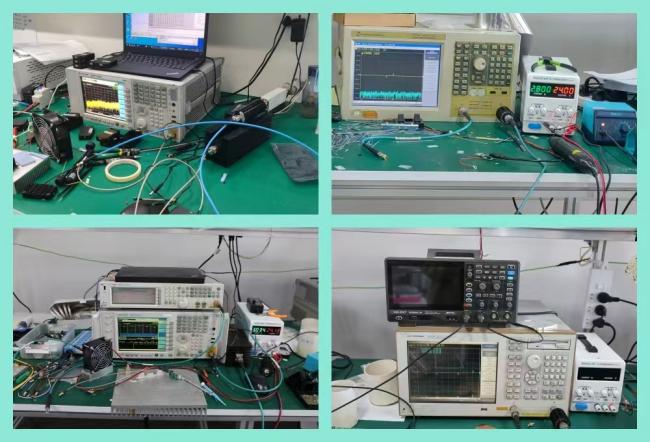

Performance Test Results
Key Advantages
- Multi-scenario Adaptability: The combination of three power modes and 64 channels allows the module to excel in indoor testing, backyard flights, and small-scale aerial mapping tasks.
- Universal Accessory Matching: SMA and JST-6Pin connectors are industry standards, so users can pair the module with their existing antennas and power cables without extra purchases.
- Voltage Flexibility Without Regulators: The 7–26V input range eliminates the need for additional voltage regulation modules, simplifying drone wiring and reducing overall system weight.
