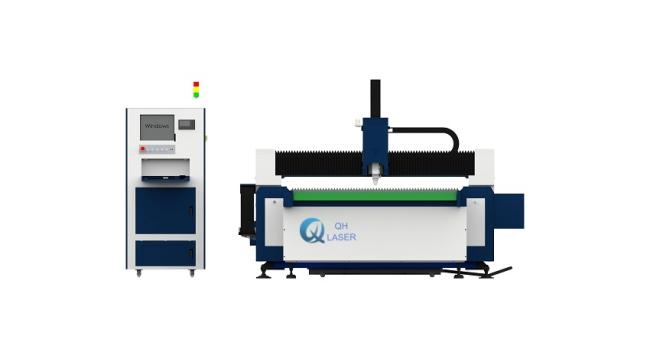

380V Automatic Coil Laser Cutting Machine 100m/min Maximum Linkage Speed
Precision Core: ±0.03mm X/Y-axis positioning/repositioning accuracy (backed by double rack & pinion servo drive) ensures burr-free, consistent coil cuts.
High Efficiency: 100m/min maximum linkage speed + 1.0G acceleration shortens processing cycles; 1500W-20KW laser power adapts to 0.5-25mm metal thicknesses.
Practical Design: 3000×1500mm processing area + 500kg max loading weight fits medium-to-large coil sizes; 7700×2765×1980mm dimensions suit standard factory layouts.
Reliable Operation: 1600kg sturdy build for long-term continuous use; 380V/50Hz power matches industrial supply standards.
| Specification | Value |
|---|---|
| Processing Area | 3000 × 1500mm |
| Maximum Loading Weight | 500kg |
| Machine Weight | 1600kg |
| Overall Dimensions | 7700×2765×1980mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Superior Precision Guarantee: The combination of ±0.03mm dual-axis accuracy and double rack & pinion servo transmission eliminates cutting deviations, even during high-speed coil processing. This avoids secondary trimming work, reduces material waste by 15%-20%, and ensures uniform part quality for batch production.
High-Capacity Efficiency: With 100m/min linkage speed and 1.0G acceleration, the machine processes coils far faster than traditional cutting equipment. Its 1500W-20KW laser power range further allows seamless switching between thin (0.5mm) and thick (25mm) metals, eliminating the need for multiple machines and boosting overall production efficiency by 30%-40%.
Strong Industrial Adaptability: The 500kg maximum loading weight handles most common coil sizes, while the 7700×2765×1980mm compact footprint fits easily into existing factory lines—reducing installation and layout costs.
