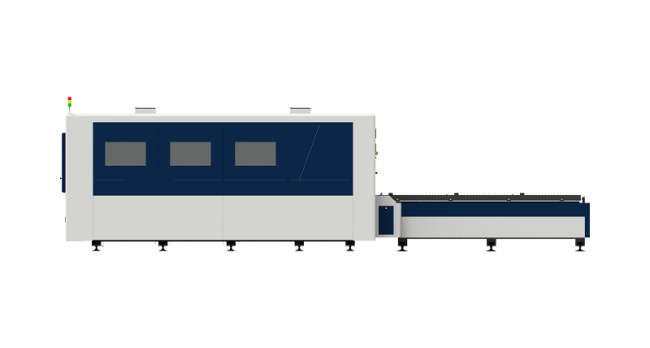

Dual Platform Enclosed Type Sheet Laser Cutting Machine High Speed
High-Speed Core: 100m/min maximum linkage speed + 1.5G acceleration, cutting efficiency 30%-40% higher than standard single-platform models; double rack & pinion servo drive guarantees ±0.03mm precision at high speeds.
Dual-Platform Boost: Parallel loading/unloading (no shutdown for material change) keeps high-speed processing continuous, reducing idle time by over 50%.
Enclosed & Practical: Enclosed structure controls dust/noise during high-speed cutting; 3000×1500mm area, 1000kg loading, 1500W-20KW power adapts to large-batch tasks (auto, home appliances).
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3500kg |
| Overall Dimensions | 8500×2280×2150mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.5G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High-Speed Efficiency Maximized: With 100m/min linkage speed and 1.5G acceleration, the machine completes high-volume cutting tasks faster—e.g., cutting 1mm stainless steel sheets at 40m/min (standard speed) while maintaining ±0.03mm precision. The dual-platform design eliminates downtime for material loading/unloading, ensuring the high-speed performance is fully utilized (overall production efficiency increased by 40%-50% vs. single-platform machines).
Stable Precision at High Speeds: The double rack & pinion servo transmission system minimizes vibration during high-speed movement, avoiding precision loss common in low-grade machines. This ensures consistent burr-free cuts even when running at maximum speed, reducing secondary finishing work and saving time.
Enclosed Safety for High-Speed Operation: The enclosed structure addresses safety and environmental concerns of high-speed cutting—preventing metal splashes, reducing noise (≤75dB), and containing dust. This allows 24/7 continuous high-speed production without compromising workplace safety, making it suitable for long-term mass manufacturing demands.
