±45° beveling cutting (0.1° adjustable):ensures bevels align with welds for round (Φ15-500mm) & square (15×15-500×500mm) tubes.

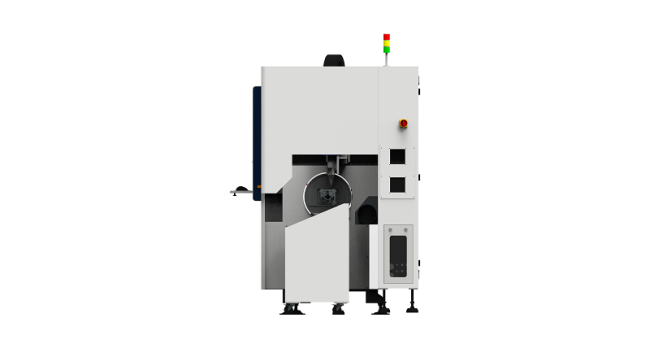

Key Specs: Model QH-GS-6012; 5500-6500mm tube length capacity; 1500W-20KW laser power; ±0.03mm X/Y-axis precision.

Value: Cuts weldseam alignment time by 60% vs. manual; eliminates bevel-weld misalignment scrap (reduces waste by 35%).

Weldseam-Aligned Bevel Precision: Unlike machines requiring manual weldseam marking, the QH-GS-6012’s automatic identification system detects welds in seconds and positions the ±45° bevel cutting head with ±0.1mm accuracy. This ensures bevel edges match weld profiles exactly—critical for thick-walled tubes (e.g., 20mm carbon steel hydraulic tubes) where misaligned bevels cause weld gaps or weak joints, reducing welding rework rates by 50%.

±45° Flexibility for Diverse Weld Joints: The ±45° bevel range adapts to different weld joint requirements: positive 45° for deep-penetration butt welds, negative 45° for lap joints, and 0°-30° for thin-tube fillet welds. For both round (e.g., Φ500mm structural tubes) and square (e.g., 500×500mm chassis tubes), this eliminates the need for multiple bevel tools, lowering equipment costs while maintaining consistent angle accuracy (±0.5°).

Efficiency Boost for Long-Tube Batch Processing: For 5500-6500mm long tubes, manual weldseam finding and bevel setup take 15-20 minutes per tube. The QH-GS-6012’s automatic system cuts this to 3-5 minutes, and its ±45° beveling completes in a single pass (no secondary grinding). For batches of 30+ tubes, this saves 6-8 hours of production time, lifting throughput by 40% vs. non-weldseam-aware bevel machines.

Consistency Across Tube Sizes/Shapes: Whether processing small-diameter round tubes (Φ15mm automotive lines) or large square tubes (500×500mm steel structures), the weldseam identification system maintains ±0.1mm alignment accuracy, and the ±45° beveling system retains angle uniformity. This avoids size-dependent quality fluctuations—critical for industries like aerospace where tube weld joints require strict consistency, reducing batch rejection rates by 30%.
