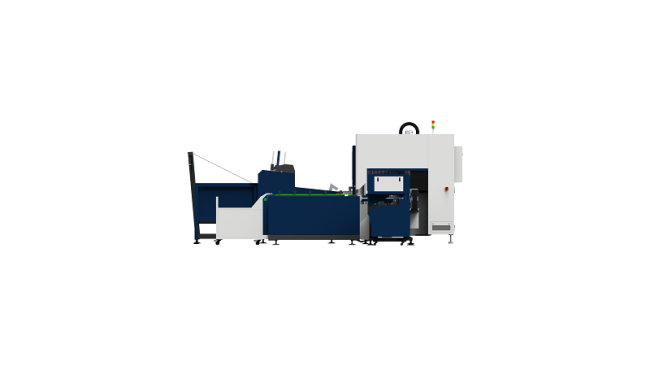

QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Follow-up Support Beveling Cutting
Triple Core Highlights: 3-chuck clamping (stable Φ15-500mm/15×15-500×500mm tube handling); beveling cutting (±0.03mm precision, V/U/Y types); follow-up support (on-site training, 24/7 tech help, software updates).
Key Specs: 5500-6500mm tube length capacity, 1500W-20KW laser power, 6T machine weight, 380V/50Hz industrial compatibility.
Fit: Batch tube processing (construction/automotive); businesses seeking post-purchase operational security.
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck Clamping Ensures Bevel Precision & Tube Integrity: The 3-chuck system distributes clamping force evenly across round/square tubes, avoiding deformation (common with 2-chuck designs) and minimizing vibration during beveling. For 6500mm long thick-walled tubes (e.g., 20mm carbon steel), this stability maintains ±0.03mm bevel angle consistency, reducing weld joint rework by 35% and ensuring compliance with strict industry tolerances (e.g., automotive frame standards).
Comprehensive Follow-up Support Lowers Operational Risks: Unlike basic machines with limited after-sales help, the QH-GC3-S includes on-site training to master bevel programming (cutting onboarding time by 40%), 24/7 technical support to resolve beveling errors quickly (minimizing downtime to <2 hours), and free software updates for new bevel profiles (extending machine utility by 3+ years). This support is critical for businesses new to precision tube beveling, eliminating “buyer’s remorse” and ensuring long-term productivity.
Precision Beveling Cutting Boosts Efficiency & Cost Savings: The machine’s ±0.03mm accuracy eliminates secondary grinding (saving 20-30 minutes per tube), while the 1500W-20KW laser range adapts to diverse bevel needs—from delicate thin-walled aluminum tube bevels (1500W) to deep-penetration thick steel bevels (20KW). Paired with 3-chuck fast tube loading (reducing setup time by 25%), it cuts batch bevel processing time by 30% and lowers per-unit production costs, all backed by follow-up support to keep efficiency consistent.
