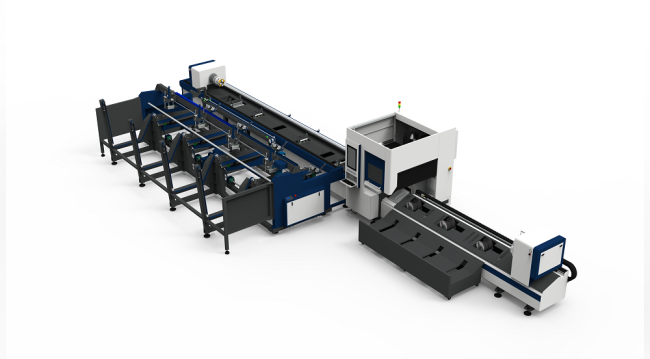

QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Weldseam Identification Horizontally-mounted Lathe

3-Chuck + Horizontally-mounted Lathe = Unmatched Stability for Long/Thick Tubes: The horizontally-mounted lathe’s linear support paired with 3-chuck clamping fixes 5500-6500mm long tubes firmly, avoiding sagging that causes cut deviation. For 20-25mm thick-walled carbon steel tubes (processed via 15-20KW power), this combination maintains ±0.03mm precision—reducing scrap rates by 35% vs. 2-chuck or vertical lathe models, as deformation and vibration are minimized.

Automatic Weldseam Identification Cuts Rework & Improves Quality: The integrated weldseam detection system scans tubes pre-cut to locate weld seams, then adjusts cutting paths to avoid these weak points. This eliminates manual seam checking (saving 2-3 minutes per tube) and prevents defective cuts (e.g., cracks at seams) that require rework—boosting finished part yield by 40% for seam-containing tubes (common in industrial pipelines and structural trusses).

Triple Tech Integration Boosts Batch Efficiency: The 3-chuck system enables fast tube loading/unloading (10 seconds faster per tube than manual clamping), the horizontally-mounted lathe accommodates full-length 6500mm tubes without segmentation, and weldseam identification skips manual setup. Combined with 6000W-20KW power (single-pass cutting for 15mm thick tubes), these features cut batch processing time by 30% vs. traditional machines. As a standard model, it also avoids custom installation costs, making it a cost-effective solution for businesses scaling tube production.
