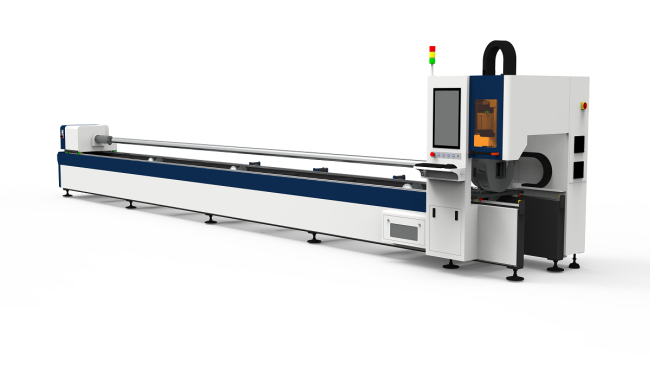

500W 1000W 2000W 3000W Fiber Laser Metal Cutting Machine Water Cooling Side Mounted

Horizontally-mounted Lathe + Follow-up Support = Unbeatable Long-tube Stability: The horizontal structure’s side-mounted chuck ensures secure, space-efficient clamping of large-diameter tubes (up to Φ500mm), while the follow-up support dynamically braces 5500-6500mm tubes—eliminating sagging that causes ±0.1mm+ deviation. Paired with ±0.03mm axis accuracy, this guarantees uniform cut quality across the entire tube length, reducing rework rates by 35%-40% vs. non-horizontal, unsupportive machines.​

Automatic Obstacle Avoidance Maximizes Safety & Uptime: Unlike standard tube cutters, its real-time detection responds in 0.1 seconds to hazards (e.g., misaligned tubes, debris), avoiding laser head damage and operator risks. This cuts equipment repair downtime by 60% and enables uninterrupted processing of 50+ tubes per shift—critical for tight production schedules.​

Horizontal Side-mounted Chuck Boosts Workflow Efficiency: The horizontal lathe’s side-mounted chuck allows tube loading from the machine’s side, eliminating the need for overhead lifting (common with vertical chucks) for heavy 6500mm-long tubes. Combined with the follow-up support’s quick length adjustment, this reduces tube changeover time by 25%-30%, accelerating batch processing.​

Versatile Compatibility with Horizontal Stability: The horizontal structure, side-mounted chuck, and follow-up support work together to adapt to both round (Φ15-500mm) and square (15×15-500×500mm) tubes. The 1500W-20KW laser power covers thin aluminum (0.5mm wall) to thick carbon steel (20mm wall), eliminating the need for multiple machines for different tube types and lowering equipment costs by 25%-30%.
