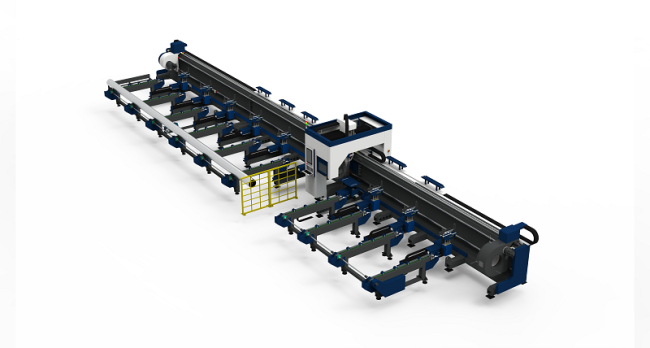

QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Side-mounted Lathe Follow-up Support

3-Chuck + Side-mounted Follow-up Support = Superior Long-Tube Precision: The 3-chuck system’s even clamping fixes tubes firmly, while the Side-mounted Follow-up Support dynamically braces long tubes (5500-6500mm) to avoid sagging—for large-diameter tubes (Φ400-500mm), this reduces cut deviation from ±0.1mm (without support) to ±0.03mm. Together, they ensure consistent weld joint alignment for pipelines and reduce scrap rates by 35% vs. machines with static side supports.

Side-mounted Lathe Saves Space & Enhances Accessibility: Unlike horizontal lathes that occupy extensive front-back space, the Side-mounted Lathe’s lateral layout cuts horizontal workshop footprint by 20%, fitting narrower production areas. It also improves operator access to the tube cutting zone (no horizontal obstruction), simplifying setup and maintenance—reducing downtime for tube changeovers by 25% vs. horizontal lathe models.

Standard Model Versatility with Specialized Side-mounted Performance: As a Standard Model, it avoids custom costs and works with off-the-shelf fixtures, yet its 3-chuck + side-mounted follow-up design handles specialized tasks (e.g., 500×500mm square tubes or 6500mm-long thick-walled tubes) that basic 2-chuck cutters can’t. The 6000W-20KW power range covers thin (1mm) to thick (25mm) tubes, eliminating the need for separate machines for different tube sizes and lowering equipment investment by 40% while retaining precision.
