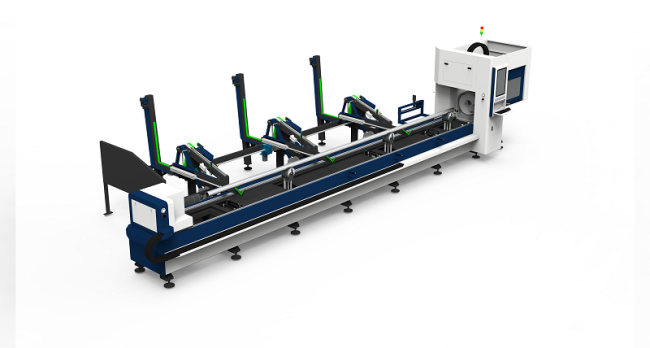

QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Lathe Fully-automatic Loading
Fully-automatic Loading Core: Autonomous tube feeding, positioning, and clamping; handles 5500-6500mm long tubes without manual intervention—cuts batch preparation time by 50%.
Key Specs: Fits Φ15-500mm round/15×15-500×500mm square tubes; 1500W-20KW laser power; ±0.03mm axis precision; 2T horizontally-mounted lathe (9620×2950×2080mm).
Added Value: Zero-tailing reduces material waste; horizontal structure stabilizes automatic loading of heavy tubes; ideal for batch automotive/hydraulic tube processing.
| Model | QH-GZ |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 2T |
| Dimensions (L*W*H) | 9620*2950*2080mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Batch Efficiency Boost from Full Automation: Traditional tube cutting requires 2-3 workers to manually lift, align, and load 5500-6500mm long tubes (risky for heavy Φ500mm round tubes). The QH-GZ’s fully-automatic system completes loading in 60-90 seconds per tube—for a batch of 100 tubes, this cuts loading time from 4-6 hours (manual) to 1.5-2.5 hours, while increasing daily processing capacity by 30%-40%.
Consistent Precision via Automated Positioning: Manual loading often causes slight tube misalignment (0.1-0.3mm deviation), leading to cutting errors. The fully-automatic loading system uses servo-driven positioning to ensure ±0.03mm alignment accuracy, matching the machine’s X/Y-axis precision. This guarantees uniform cut edges and bevel quality (if paired with bevel functions) across every tube in a batch—critical for hydraulic pipelines where even small misalignments cause leakages.
Safety & Labor Cost Savings: Heavy tube manual handling (e.g., 500×500mm square tubes weighing 100+kg) poses high injury risks. The fully-automatic system eliminates manual lifting, reducing workplace accidents by 90%.
