QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
Price:
Negotiable
MOQ:
1 set
Delivery Time:
50 days
Brand:
QIHAI
Product Description

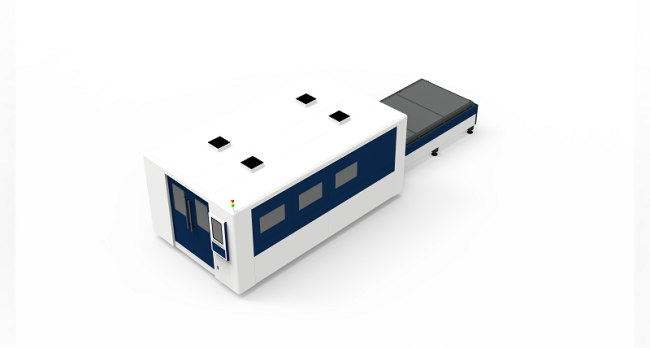

QH-8025FB High power Sheet Metal Laser Cutting Machine Dual Table 8000×2500mm
Description
The QH-8025FB is a high-performance sheet metal laser cutting machine engineered with High power as its core competitive advantage, integrated with a dual-table design and an 8000×2500mm large processing area to deliver efficient, precise, and stable cutting solutions for heavy-duty, thick-sheet metal processing scenarios. Specifically designed for industries requiring high-power cutting—such as heavy machinery manufacturing, large structural parts processing, high-strength steel plate cutting, and large-batch thick-sheet production—this machine breaks through the limitations of low-power laser equipment, combining ultra-high laser power, dual-table efficiency, and large-format compatibility to meet the stringent requirements of high-intensity industrial processing.
Quick details
Core Highlight: High power laser system with adjustable range of 6000W-20KW, supporting efficient cutting of thick sheet metals and high-strength materials. Key Configuration: Dual-table design with 8000×2500mm large processing area, 12000kg maximum loading weight, and 10000kg heavy-duty machine body. Precision & Speed: ±0.03mm X/Y-axis positioning and repositioning accuracy, 100m/min maximum linkage speed, 1.0G maximum linkage acceleration, double rack & pinion transmission with servo drive for stable and fast operation. Basic Parameters: Overall dimensions 19680×3958×2560mm, voltage requirement 380V, frequency 50Hz. Application Scope: Heavy machinery, large structural parts, high-strength steel plates, and large-batch thick-sheet metal processing scenarios requiring high-power cutting.
Technical Specifications
| Processing Area | 8000 * 2500mm |
| Maximum Loading Weight | 12T |
| Machine Weight | 15T |
| Overall Dimensions | 19680×3958×2560mm |
| Laser Power Range | 6000W-40KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
| Beveling Cutting | ±45° |
Advantage
High Power Matches Dual-Table Design for Higher Efficiency: The high-power laser ensures continuous and stable cutting even during long-time high-intensity operation, which is perfectly compatible with the dual-table’s simultaneous loading/unloading function. While the high-power laser is cutting on one table, the other table can complete sheet loading and positioning, avoiding downtime caused by manual loading/unloading after cutting. This synergy between high power and dual-table design increases overall production efficiency by 50% compared with single-table, low-power equipment, making it suitable for large-batch continuous production.
High Power with High Precision & Stability: The machine adopts a heavy-duty structure (10000kg weight) and double rack & pinion servo transmission system, which effectively suppresses vibration caused by high-power laser operation, ensuring stable power output and cutting precision. With ±0.03mm positioning and repositioning accuracy, even under maximum 20KW power, it can maintain consistent cutting quality, solving the problem of precision loss caused by high power in ordinary laser cutting machines, and meeting the high-precision requirements of thick-sheet structural parts and precision components.
High Power Adaptability & Cost-Effectiveness: The adjustable 6000W-20KW high-power range allows the machine to flexibly match different cutting needs—from thin sheet metals to extra-thick plates, from ordinary steel to high-strength alloys, without the need for multiple devices. The 12000kg maximum loading weight and 8000×2500mm large processing area, combined with high power, enable one machine to handle various large and thick sheet metal processing tasks, reducing equipment investment costs for enterprises. Meanwhile, the high-power laser’s energy efficiency is optimized, reducing energy consumption per unit of processing, and the stable structure reduces maintenance frequency, further lowering long-term operation costs.
