QH-12016GW 12m Tube Length 160mm Chuck 1500W-12000W CNC Tube Laser Cutting Machine with Weldseam Identifying

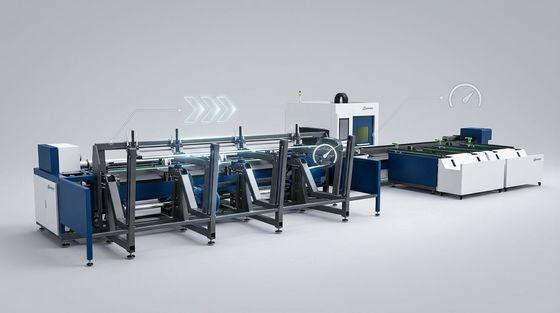

The QH-12016GW is a CNC tube laser cutting system configured for 12m tube lengths and up to 160mm clamping capacity, built for end-preparation and profile cutting of metallic tubular workpieces.
The QH-12016GW clamps round tubes from Φ10 mm - Φ160 mm and square tubes from 10 * 10 mm - 160 * 160 mm, with a maximum supported tube length of 12m. The machine accepts fiber laser sources in the 1500W - 12000W range, covering carbon steel, stainless steel and aluminum alloy tube at wall thicknesses from 3-8mm.

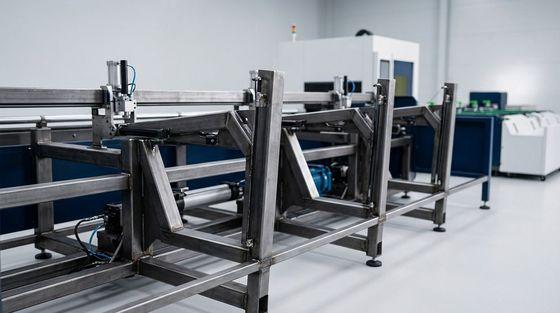

A weldseam identifying sensor tracks the position of the longitudinal weld seam, so the cutting path can be referenced to the seam and scrap generated by seam misalignment is reduced.
Linear positioning and repositioning accuracy on both X and Y axes is held to +/-0.03mm, supporting dimensional repeatability across production batches. The control system is BOCHU and the laser source is MAX, with water cooling for stable thermal performance during long runs.
| Model | QH-12016GW |
| Tube Length | 12m |
| Chuck Diameter | 160 mm |
| Round Tube Range | Φ10 mm - Φ160 mm |
| Square Tube Range | 10 * 10 mm - 160 * 160 mm |
| Laser Power Range | 1500W - 12000W |
| X/Y Positioning Accuracy | ±0.03 mm |
| X/Y Repositioning Accuracy | ±0.03 mm |
| Compatible Tube Profiles | Round / Square |
| Control System | BOCHU |
| Laser Source | MAX |
| Cooling Mode | Water Cooling |
| Output Handling | Section collection station |
| Machine Weight | To be confirmed |
| Machine Dimensions (L * W * H) | To be confirmed |
The QH-12016GW is configured around the weldseam identifying requirement, so tube fabrication steps that are normally handled by separate equipment or additional handling are consolidated into one machine cycle.
The 12m tube bed and 160mm chuck cover standard structural, chassis and fluid-transfer tube sizes. The 1500W - 12000W power window lets process engineers match power to material and wall thickness.
Positioning accuracy of +/-0.03mm on X and Y axes keeps bevel geometry and cut length repeatable across batches, and the 160mm clamping capacity supports round and square profiles within the stated range.
