QH-12024GZ 12m 240mm Large Chuck 20000W Heavy Duty Tube Laser Cutting Machine Zero Tailing

QH-12024GZ 12m 240mm Large Chuck Heavy Duty Tube Laser Cutting Machine

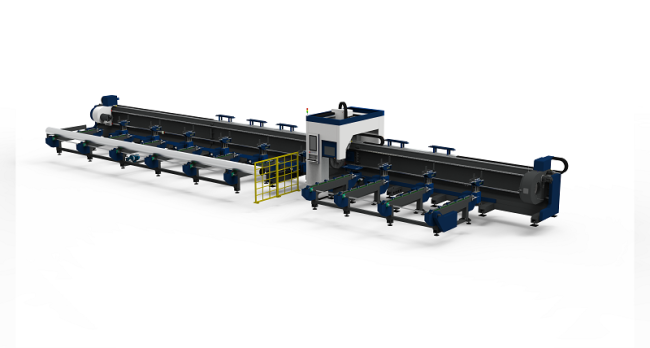

The QH-12024GZ is a heavy-duty CNC tube laser cutting system built around a 240mm large chuck and a 12m working length. It is engineered for fabricators who cut large-diameter, long and heavy-wall metal tube and need a machine that holds accuracy under demanding loads.

Large Chuck, Heavy Duty Cutting

The 240mm chuck is the largest in the range. It accepts round tubes up to Φ240mm and square tubes up to 240 × 240mm, covering the heavy structural tube used in construction machinery, heavy furniture, energy and general steel fabrication. Combined with a 3000W–20000W fiber laser source, the machine cuts heavy-wall carbon steel, stainless steel and aluminum tube with the power headroom to maintain production speed on thick walls.

Zero-Tailing Cutting

Zero-tailing cutting uses a holder for the last piece of material, preventing the tube tail from falling and being wasted. On large, expensive heavy-wall tube this directly reduces material loss and improves yield on every run.

Advantages

• 240mm large chuck handles heavy structural tube up to Φ240mm round and 240 × 240mm square
• 12m working length processes full-length structural tube in a single clamping cycle
• Up to 20000W laser power for heavy-wall cutting at production speed
• Zero-tailing cutting minimises material waste on expensive heavy-wall tube
• ±0.03mm X/Y accuracy maintained under demanding heavy-duty loads
• Proven components (BOCHU head, MAX/RAYCUT source, Delta servos, MOTOVARIO, YYC, SMC, TEYU) for long-term reliability

Technical Specifications

Core Components

• Laser Cutting Head: BOCHU (CYPCUT / FSCUT)
• Laser Source: MAX or RAYCUT (optional)
• Servo Motor: Delta
• Brake (Reducer): MOTOVARIO
• Gear Box (Rack & Pinion): YYC
• Pneumatic Parts: SMC
• Chiller: TEYU

Optional Functions

• Zero-Tailing Cutting
• Bevel Cutting
• Automatic Loading (semi-automatic / fully-automatic)
• Head Removable in Front of Chuck
• Automatic Follow-up Support / Pneumatic Wheels

For a customized configuration or quotation, please contact us.
