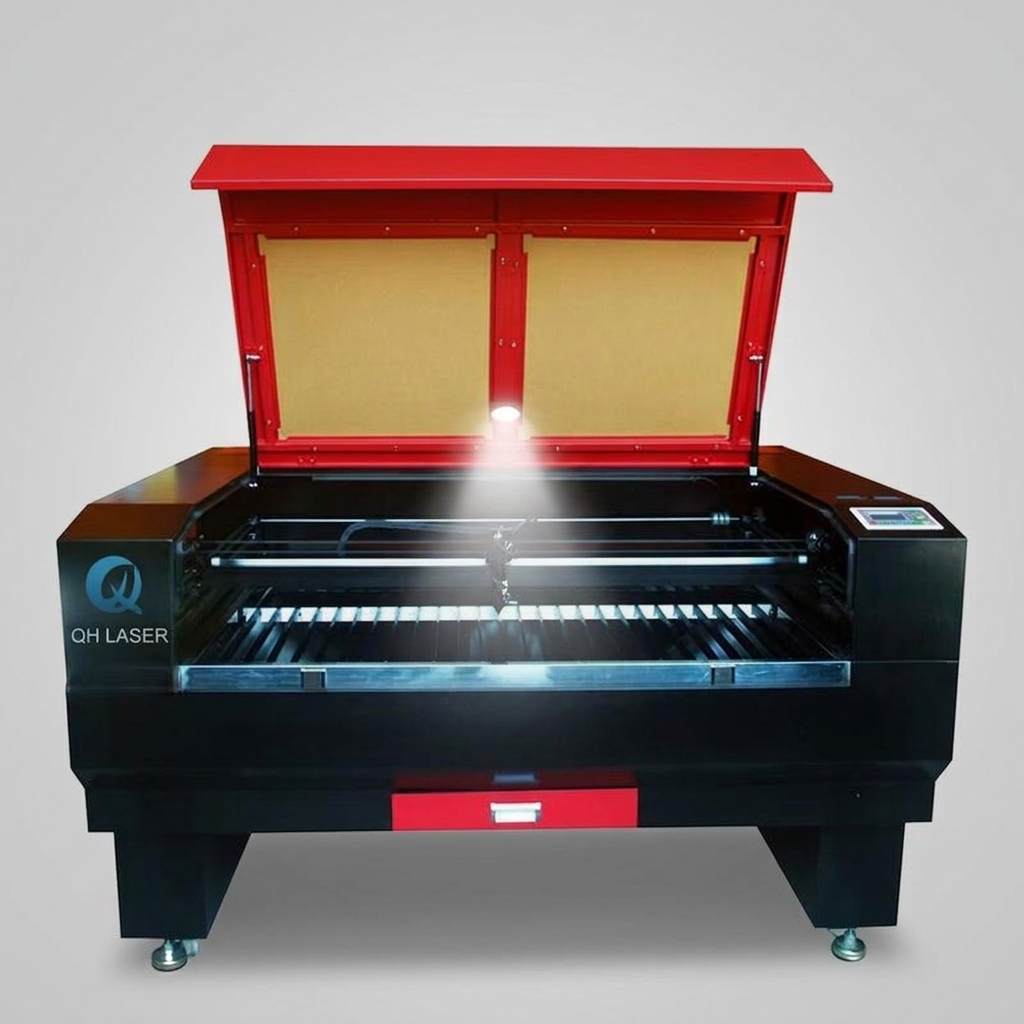

QH 1390 100W CO2 Laser Engraving Machine 1300x900mm Single Head for Acrylic Wood

QH 1390 100W Single Head CO2 Laser Engraving Machine for Acrylic and Wood

Description

The QH 1390 is a fixed-configuration 100W single head CO2 laser engraving and cutting machine with a 1300×900mm working area, set up for acrylic and wood production. The 100W tube cuts 10-15mm acrylic cleanly and handles wood, MDF and plywood at production speeds, while the 10.6µm wavelength is absorbed efficiently by these non-metallic materials so edges come out smooth and engraving stays crisp.

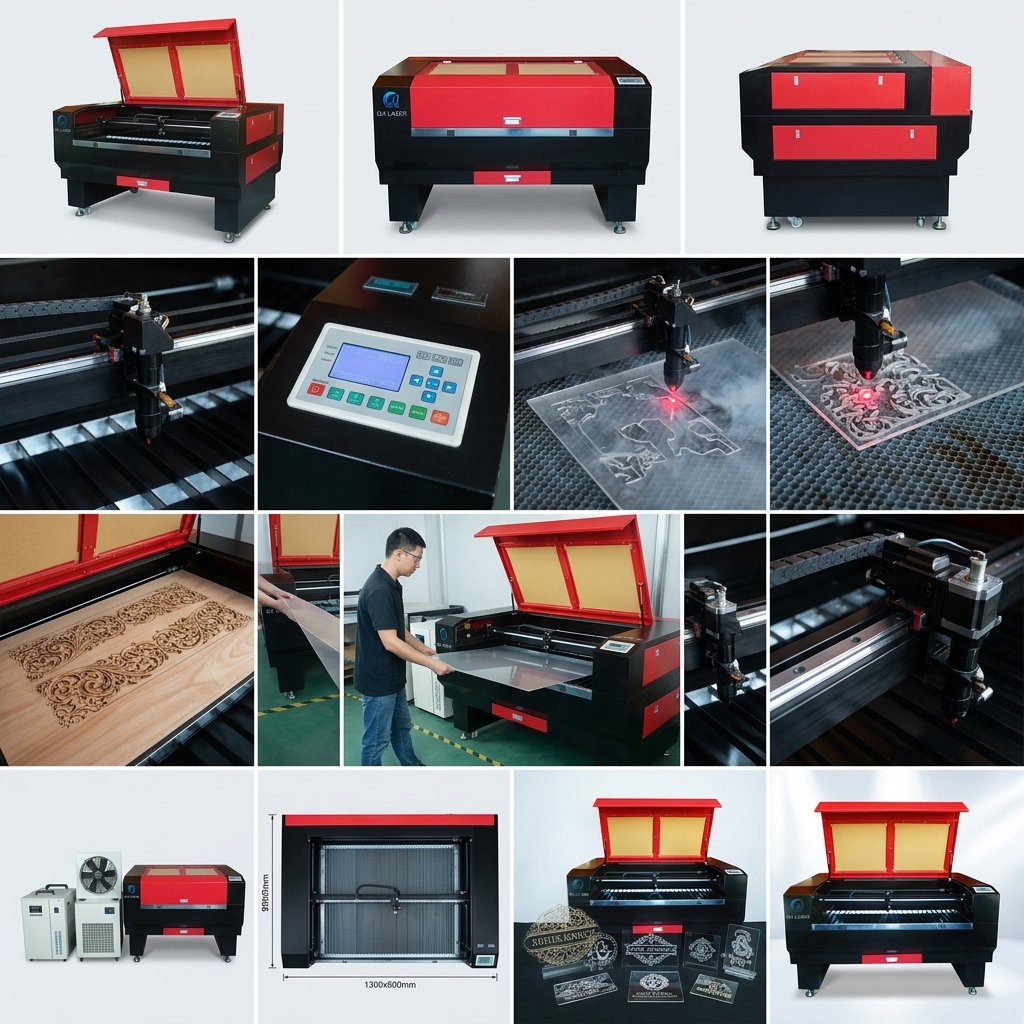

The single head keeps one beam path and one focus lens set, which simplifies alignment and reduces consumable cost. Taiwan linear guide rails and Leadshine stepper motors deliver 0.025mm resolution and ±0.01mm resetting accuracy; the Ruida control system with LCD screen and USB interface runs standard design files; and the industrial chiller holds the tube at working temperature while the exhaust fan and air pump remove fumes and protect the optics. Pass-through doors allow processing of material longer than the 1300mm bed.

Quick Detail

• Fixed 100W Single Head Build: 1300×900mm engraving area + 100W CO₂ tube + single head, one specification and one quotation basis.
• Acrylic and Wood Performance: 100W cuts acrylic 10-15mm; wood, MDF and plywood cut and engrave with smooth edges.
• Acrylic and Wood Focus: 10.6µm CO₂ wavelength is optimised for acrylic, wood, MDF and plywood, giving smooth cut edges and crisp engraving without post-polishing.
• Precision Motion: 0.025mm resolution and ±0.01mm resetting positioning accuracy hold fine lettering and detailed patterns sharp.
• Ruida Control System: LCD screen with USB interface, accepts CorelDraw, AutoCAD files plus BMP/PLT/DXF/G-CODE/DST/AI.

Configured Specification

Technical Parameter

Advantage

• Set Up for Acrylic and Wood: The 1300×900mm bed takes standard acrylic sheets and wood panels, and 100W gives the 10-15mm acrylic range most signage and display work needs, plus comfortable cutting and engraving on wood, MDF and plywood. One machine covers the sheet sizes these jobs actually use.
• Clean Edges, Less Rework: The CO₂ beam leaves acrylic with a polished, flame-free edge and wood with a consistent cut line, so parts go straight to assembly or packing without sanding and polishing steps that add labour cost.
• Precision Across the Whole Bed: 0.025mm resolution and ±0.01mm resetting accuracy keep engraved logos, lettering and decorative patterns sharp from the first sheet to the last, which matters when repeat orders must match an approved sample.
• Proven Sub-Systems: Taiwan linear guide rails, Leadshine stepper motors, imported lens set, Ruida control and an industrial chiller are all standard on this model, so beam quality and tube life are protected and spare parts are easy to source.
• Straightforward Operation: Operators can load files from CorelDraw, AutoCAD and start cutting the same day; pass-through doors handle long material and the 3-5 day production time keeps delivery commitments short.

Applications

Acrylic signage, display stands and light boxes; wooden crafts, toys and furniture parts; MDF decorative panels; plywood prototypes; leather and paper engraving; personalised gift items.
