QH 1325 150W CO2 Laser Engraving Machine 1300x2500mm Single Head for Acrylic Wood

QH 1325 150W Single Head CO2 Laser Engraving Machine for Acrylic and Wood

Description

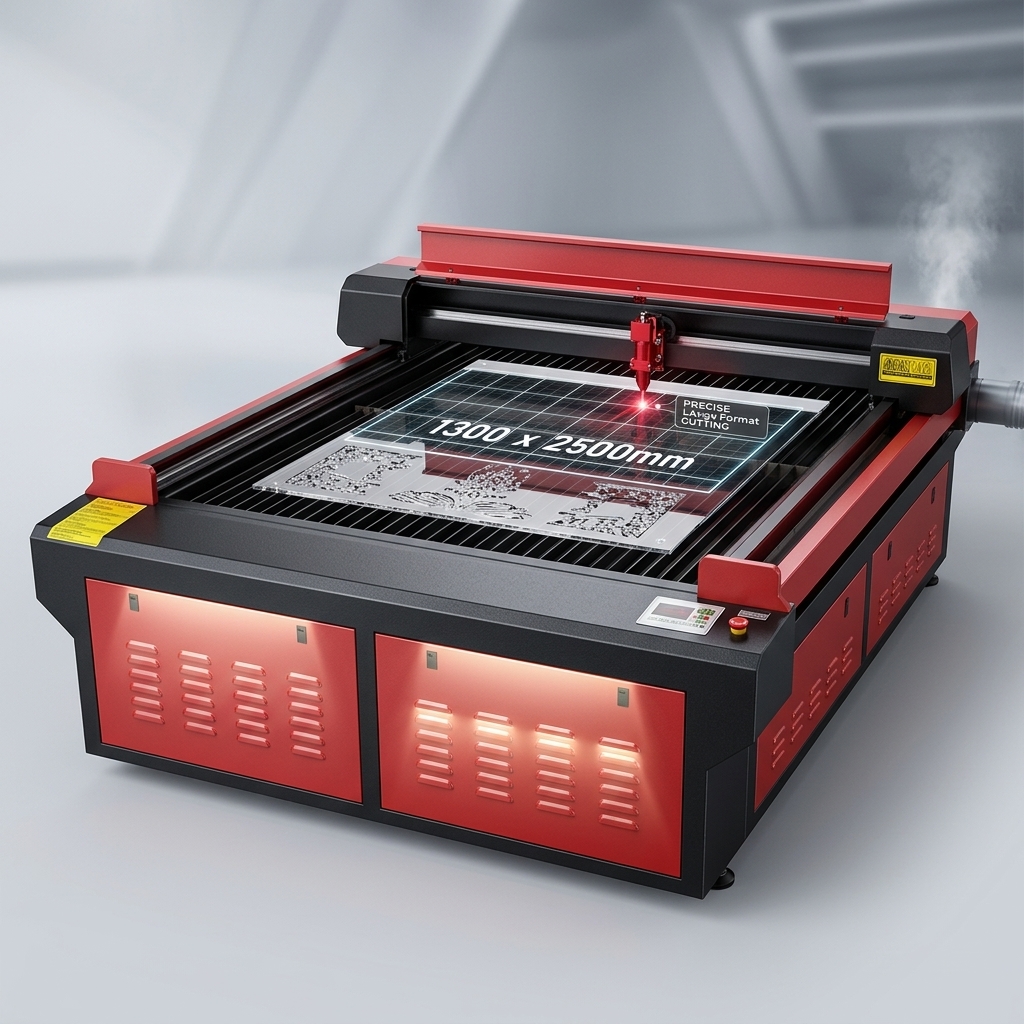

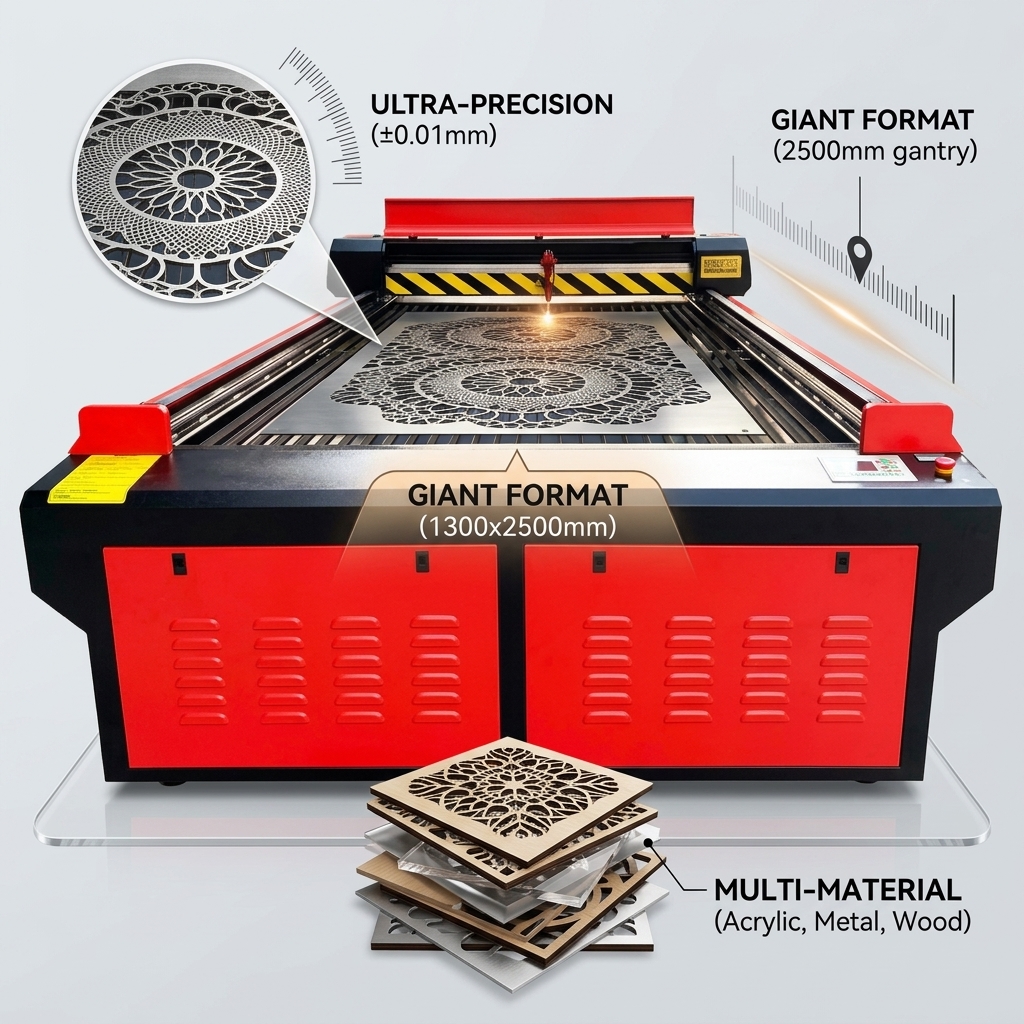

The QH 1325 is a fixed-configuration 150W single head CO2 laser engraving and cutting machine with a 1300×2500mm working area, built for acrylic and wood work at large format. The bed takes full 1300mm-wide panels and material up to 2500mm long, so large signage, display panels and furniture parts are processed in one pass instead of being tiled and joined.

150W reserves power for thicker acrylic and dense wood, while the 10.6µm CO₂ wavelength keeps edges clean and engraving sharp. Taiwan linear guide rails with 0.025mm resolution and ±0.01mm resetting accuracy hold detail across the whole 2500mm stroke. Ruida RD6442G control with LCD screen and USB interface runs standard design files; the industrial chiller, 550W exhaust fan and air pump protect the tube and optics; and pass-through doors extend the working length further for long profiles.

Quick Detail

• Fixed 150W Single Head Build: 1300×2500mm working area + 150W CO₂ tube + single head, one specification and one quotation basis.
• Large Acrylic and Wood Capacity: Full 1300mm width and 2500mm length in a single pass, 130W class acrylic cutting up to 15-20mm, with 150W headroom for dense wood and thicker stock.
• Heavy-Duty Air Handling: 550W exhaust fan and Haili 135W air pump are standard, matched to the larger cutting area.
• Acrylic and Wood Focus: 10.6µm CO₂ wavelength is optimised for acrylic, wood, MDF and plywood, giving smooth cut edges and crisp engraving without post-polishing.
• Precision Motion: 0.025mm resolution and ±0.01mm resetting positioning accuracy hold fine lettering and detailed patterns sharp.
• Ruida Control System: LCD screen with USB interface, accepts CorelDraw, AutoCAD files plus BMP/PLT/DXF/G-CODE/DST/AI.

Configured Specification

Technical Parameter

Advantage

• Large Format Acrylic and Wood Processing: A 1300×2500mm bed handles full panels and long parts in one setup, removing the tiling, alignment and joint lines that come with cutting oversize work on a smaller machine.
• 150W Headroom for Thick Stock: The 150W tube covers the 15-20mm acrylic range at production speed and leaves margin for dense hardwood, thick MDF and multi-layer plywood, so one machine can take on heavier jobs without a second purchase.
• Precision Over the Full Stroke: 0.025mm resolution and ±0.01mm resetting accuracy are maintained across the 2500mm travel, so large engraved panels stay consistent from edge to edge and match approved samples on repeat orders.
• Built for Continuous Production: Taiwan linear guide rails, Leadshine stepper motors, imported US lens and Ruida RD6442G control are standard, while the 550W exhaust fan and 135W air pump are sized for the larger cutting area to keep fumes and heat under control.
• Flexible Material Handling: Honeycomb and knife tables can be swapped to suit delicate engraving or heavy sheet cutting, and pass-through doors allow even longer material to run through the machine.

Applications

Large acrylic signage and light boxes, display panels, wooden furniture parts and panels, MDF decorative boards, plywood prototypes, long architectural models and personalised wood products.
