QH-12012GH 12m 120mm 3000W Zero-Tailing Tube Laser Cutting Machine with Optional Water-Assisted Slag Removal

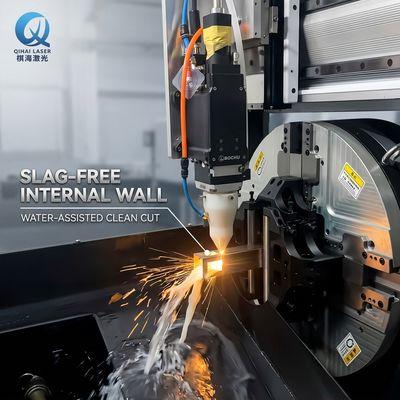

The QH-12012GH is a long bed tube laser cutting machine for thin to medium wall tube in continuous production. A 12 metre loading length cuts full stock lengths in one pass, and the zero tailing design keeps waste on the last section to a minimum. The 3000W laser source delivers fast cycle times on 10-120mm tube, and optional water-assisted slag removal flushes molten dross out of the bore so the inner wall stays clean for welding and coating.

• Optional Water-Assisted Slag Removal - water flow flushes dross out of the 12m tube bore, keeping the inner wall clean along the full length
• 12m Loading Length - full stock lengths are cut in one setup, ideal for long handrail and frame sections
• Zero Tailing Design - minimal waste on the final tail section of every tube
• 3000W Laser Source - fast cutting on 0.5-6mm wall carbon tube and 0.5-4mm stainless tube
• High Speed Output - 80m/min positioning and fast acceleration raise hourly part count
• Other Optional Functions - bevel cutting, head removable around chuck and weldseam identification are selectable

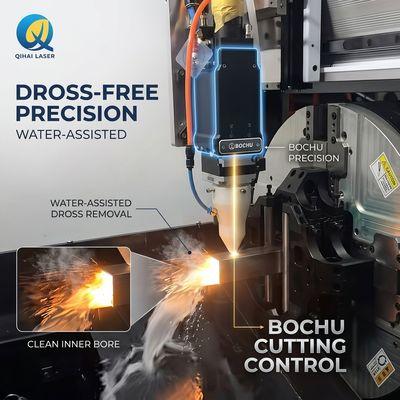

Laser cutting of steel tube leaves molten dross that sticks to the inner wall of the tube and to the lower edge of the kerf. The water-assisted slag removal unit is an optional module: a controlled water flow is delivered along the tube bore and at the cut zone, quenching the molten dross and flushing it out of the tube before it can weld onto the inner surface. The result is a clean tube bore and a dross-free cut edge, so downstream welding, threading, coating and assembly need far less grinding and cleaning. Water is recovered and recirculated by the chiller circuit, so consumption stays low in continuous production.

Note: water-assisted slag removal, bevel cutting, zero tailing cutting, head removable around chuck and weldseam identification are all optional functions and can be selected independently according to the tube size, wall thickness and downstream process.

Long handrail and railing runs, gym and fitness frames, furniture tube, display systems, and long thin wall tube batch production.

Carbon steel tube, stainless steel tube, galvanized tube, aluminum tube and copper tube from 10mm to 120mm diameter.

CE certified. 2 year machine warranty, laser source warranty up to 2 years, optional modules 1 year. Factory installation supervision, operator training and remote support available. MOQ 1 set.

All models below use the same optional water-assisted slag removal module, which flushes molten dross out of the tube bore so the inner wall and cut edge stay clean before welding, threading or coating. Loading length covers 6m to 12m and chuck range covers 120mm to 320mm.
