Compound Weave Conveyor Wire Mesh Belt For Biscuits Tortillas Cookies And Crackers Baking
Compound Weave Conveyor Belts For Biscuits, Tortillas, Cookies And Crackers Baking
Compound Weave Conveyor Belts Description
Compound Weave Conveyor Belt, also named Stainless Steel Cordweave Conveyor Belt, Compound Balanced Woven Belt,V-shaped Conveyor Belt or Baking Band Conveyor Belt, have right-hand and left-hand spirals interconnecting by straight cross rods.
We can not only provide right belts, but also provide matching sprockets and other components.
Compound Weave Conveyor Belts Feature
• Belt edge has no catch points, no welds
• Twice the life of competitive belts
• Installation requires no special tools
• Positive driven for excellent belt tracking
• Up to 81% open area for excellent flow through
• Allows for tight transfers
• Available up to 150 inches wide
• High strength-to-weight ratio
• Welded button edge or clinched edge
• Flat carrying surface
• Easy to clean and to install

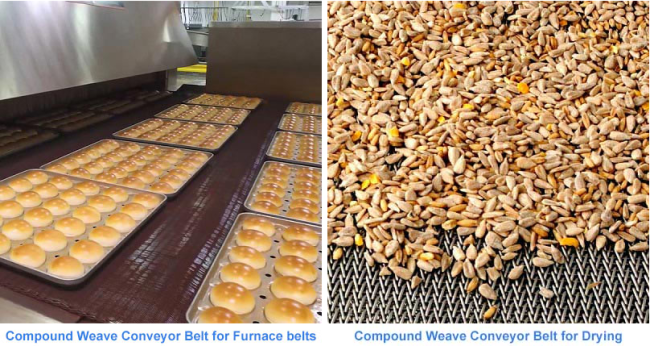

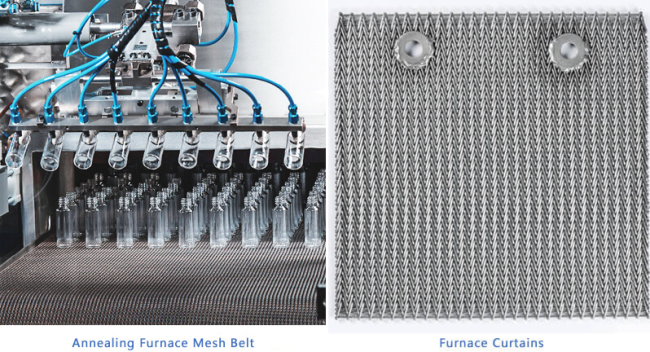

Compound Weave Conveyor Belts Applications
●Rice Handling
●Swarf Conveyors
●Heat Treating of Small Fasteners
●Furnace Curtain
●Sintering of Powdered Metal Components
●Electro-Plating
●Accumulation Tables
●Seed Drying
●Biscuits, tortillas, cookies and crackers baking
●Hardening, tempering, quenching
●Glass works
●Electrotechnical industry
●Serving as pasteurizing belt
●Furnace belts
Generally, the material used to make the Compound Weave Conveyor Belts is stainless steel or high carbon steel.
Compound weave conveyor belts made from 304 and 316 stainless steel are typically used in the food industry due to their hygienic properties, while those made from 310S and 314 stainless steel are preferred in the heat treatment industry for their high temperature and oxidation resistance.
310S and 314 stainless steel wire offer high temperature resistance, strong oxidation resistance, and excellent mechanical properties. These features make mesh conveyor belts made from 310S and 314 stainless steel ideal for addressing high temperature issues in powder metallurgy furnaces. These belts resist short cycles, peeling, and fractures, and can withstand temperatures up to 1000-1250°C.

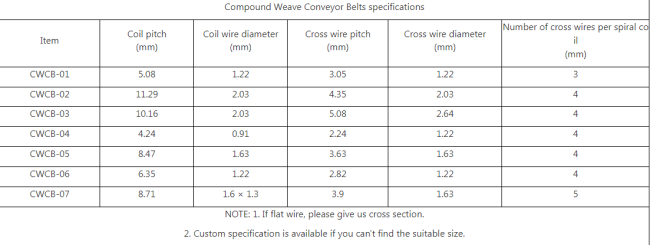

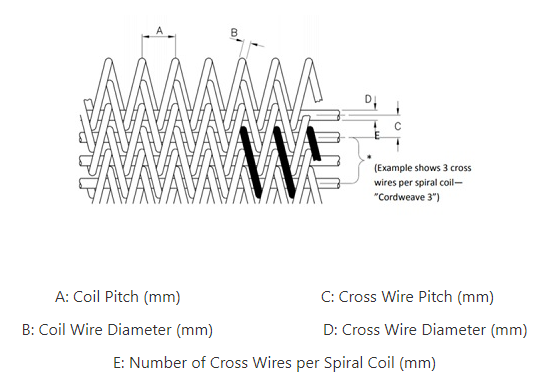

Compound Weave Conveyor Belts Specification
| Product Name | Compound Weave Conveyor Belts For Biscuits, Tortillas, Cookies And Crackers Baking | |||
| Material | Stainless steel, carbon steel or as your request | |||
| Wire diameter | 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 5mm, etc Customers can choose as per load capacity requirements | |||
| Width | ||||
Material Availability
| Material | Maximum Operating Temperature °C |
| Carbon Steel | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum | 700 |
| 304 Stainless Steel | 750 |
| 321 Stainless Steel | 750 |
| 316 Stainless Steel | 800 |
| 316L Stainless Steel | 800 |
| 314 Stainless Steel | 1120 |
Belt Types

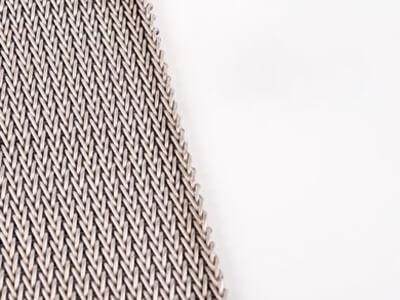

Round spiral wire compound weave conveyor belt
In this format both coil and cross wires are of round section.

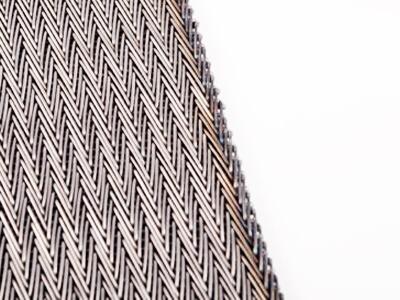

Flat spiral wire compound weave conveyor belt
In this format both coil and cross wires are of flat section. These styles are most useful to gain more surface area when handling small base area products.
Edge Type

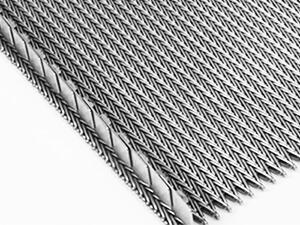

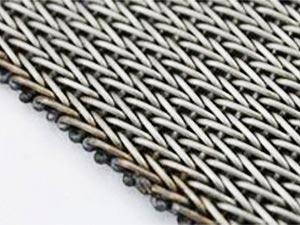

Compound weave conveyor belt with welded edge

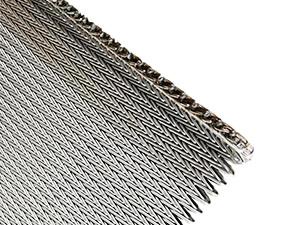

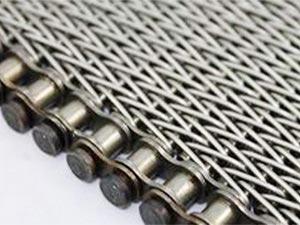

Compound weave conveyor belt with chain edge
Compound weave conveyor belt with side guard edge
Compound weave conveyor belt with folded side guard edge
Contact us
FAQ
Q1. Are you a factory or trading company?
A: We are both factory and trade company
Q2. How to place an order?
A: Once you find the US, you can place an order on Ali or signed a contract with the US.30% deposit is charged before customized fabric are manufactured
Q3. What about payment terms?
A: T/T, L/C, Western Union, Escrow, Paypal, and some other payment terms are accepted.
Q4. What about the shipping date?
A: The shipping date would be in 15 days after contract confirmed, except customized fabric.
