Cold Washing HDPE/PP Plastic Recycling Washing Line 500kg/h

Project Overview

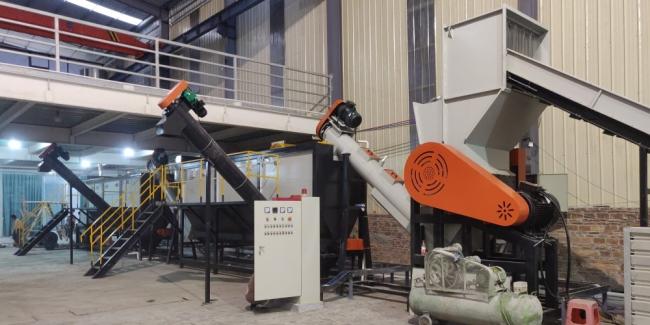

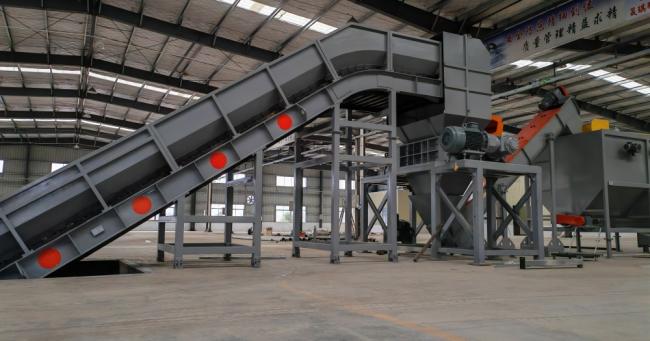

This project involves the supply and integration of a complete 500 kg/h cold washing recycling line, specifically engineered for the recovery of post-consumer HDPE and PP plastics. The line is designed to transform dirty, mixed flake feedstock into clean, high-quality washed flakes, ready for pelletizing or direct manufacturing, using a highly efficient and cost-effective cold washing process without a hot washing stage.

Process Introduction

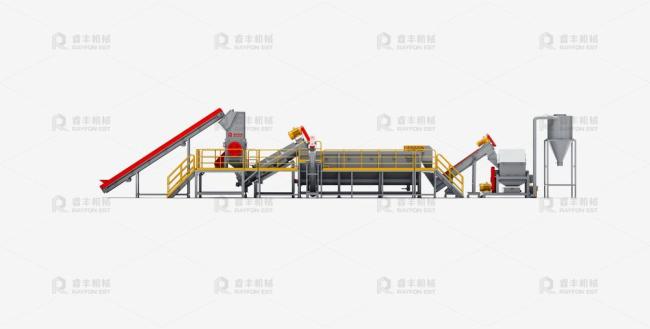

The cold washing process for HDPE/PP (500-1000kg/h capacity) begins with automated feeding of raw materials into the system. The plastics first undergo size reduction in a shredder to create uniform flakes. These flakes then enter a friction washer where mechanical action removes stubborn contaminants and adhesives. Next, the material passes through a floatation sink-float separation tank, where PP/HDPE flakes float and are separated from heavier impurities. The cleaned flakes are then dewatered in a high-speed centrifugal dryer to reduce moisture content. Finally, the processed material is automatically conveyed for weighing and bagging. This efficient cold wash process eliminates thermal energy requirements while delivering ready-to-use recycled flakes.

Technical Parameters

Key Features & Technological Advantages

1.Optimized Cold Washing Process:Eliminates the need for energy-intensive hot washing, significantly reducing operational costs and thermal stress on the polymer.

2.High-Efficiency Friction Washing:Ensures thorough removal of labels, adhesives, dirt, and other surface contaminants.

3.Precise Density Separation:The sink-float tank ensures high-purity HDPE/PP output by effectively separating heavier plastics (like PET, PVC) and other sink materials.

4. Robust Dewatering Technology:The high-capacity centrifugal dryer ensures low residual moisture content, minimizing energy required for subsequent drying.

5.Water Circulation & Filtration:Equipped with a water recycling system to reduce fresh water consumption and wastewater discharge, promoting environmental sustainability.

6.Compact & Modular Design:The line is designed for easy installation, flexibility.

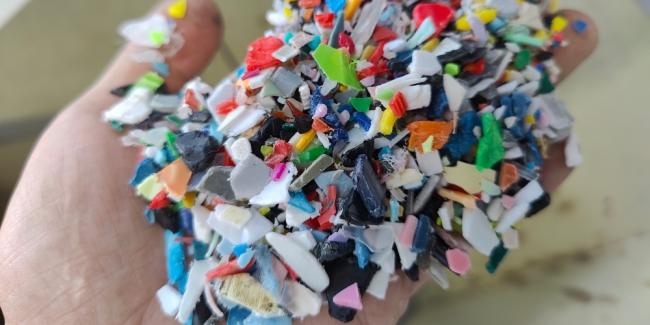

Finished Product

Applications of Output HDPE/PP Flakes

Non-Food Grade Bottles & Containers:Detergent bottles, chemical containers, and household cleaner bottles.
Plastic Lumber & Profiles:Used for park benches, decking, fencing, and industrial pallets.
Injection Molded Products:Various consumer goods, crates, totes, and automotive parts.
Piping & Conduits:For non-pressure applications in construction and agriculture.
New Packaging:As a core layer in co-extruded sheets or bottles.

 Application for Consumer Goods

Application for Construction Materials&Plastic Lumber
