Zig-Zag Air Separator Precision Air Classifier for Plastic Recycling

Function:
Utilizes the principle of aerodynamic suspension in a multi-stage, zig-zag air channel to precisely separate light materials (such as films, labels, and dust) from heavy materials (such as plastic flakes).   It achieves efficient purification and classification, significantly enhancing the purity of the final product.

Key Features:

1.The uniquely designed multi-bend zig-zag airflow channel creates repeated and effective air washing, ensuring thorough removal of light and loose contaminants.

2.Equipped with an adjustable frequency fan and air damper, it allows for precise control of air velocity and volume to adapt to different material densities and sorting requirements.

3.Features a compact and sealed structure that effectively prevents dust leakage, maintains a clean working environment, and minimizes material loss.

4.Constructed with no easily worn moving parts in contact with materials, ensuring stable performance, low maintenance costs, and a long service life.

Equipment Specification:

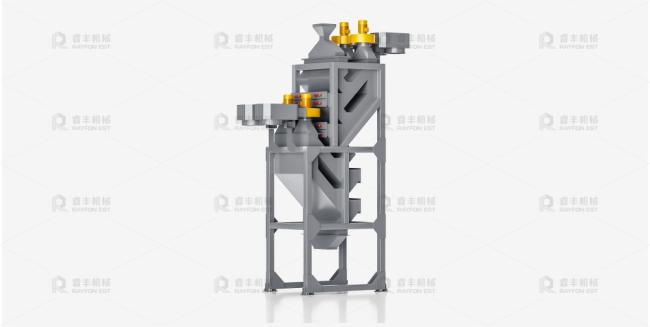

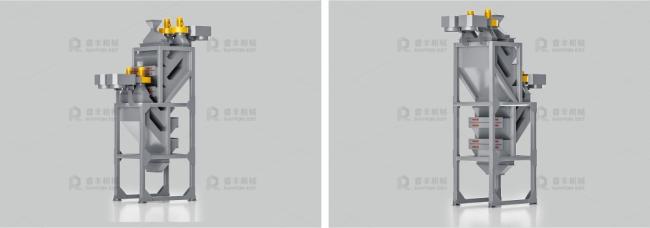

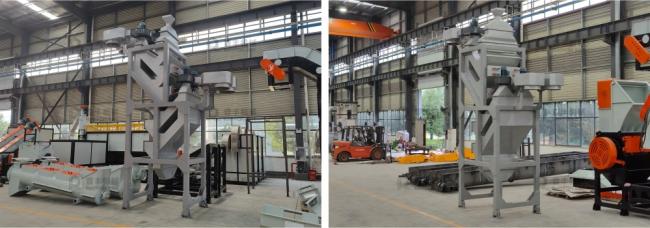

Physical Pictures:

Applications:

All kinds of normal hard plastic flakes,such as PET,PE,PP,HDPE plastic flakes and so on

PET plastic bottle

HDPE daily household waste containers

PP plastic busket, beverage cup

ABS PS Toy car
