Two Shaft Industrial Plastic Shredder Heavy Duty Plastic Grinder For Recycling
Plastic Two Shaft Shredder Shredding Machine

Precisely shreds large and bulky plastic materials (such as pipes, barrels, pallets, and film rolls) into smaller, uniform chips or strips. It serves as the crucial first-step size reduction for recycling systems, facilitating subsequent sorting, washing, and pelletizing processes.
Key Features:
1.Equipped with uniquely designed staggered rotors and high-hardness, wear-resistant alloy blades, delivering powerful shear force and exceptional shredding efficiency for tough materials.
2.Features a robust, integrally welded frame and a heavy-duty gearbox, ensuring extreme stability and impact resistance for continuous operation under high loads.
3.Incorporates an intelligent auto-reverse control system, which can automatically reverse upon overload to protect the machine, ensuring operational safety and preventing downtime.
4.The crushing chamber is designed with a hinged or sliding door for easy access, greatly simplifying blade inspection, maintenance, and replacement.
Equipment Specification:
| ITEM | UNIT | RSHB-3016 | RSHB-3018 | RSHB-4022 | RSHB-5025 |
| Motor power | kW/HP | 60 | 74/90 | 100/150 | 180/220/264 |
| Chamber Length | mm | 800 | 1000/1200 | 1200/1500 | 1600/1800/2000 |
| Chamber Width | mm | 800 | 800 | 1000 | 1200 |
| Rotor Diameter | mm | 400 | 400 | 500 | 600 |
| Fixed Blades | pcs | 30 | 30 | 40 | 50 |
| Blade Thickness | mm | 160 | 180 | 220 | 250 |
| Main Shaft Diameter | mm | 26 | 32 | 40/36 | 32/36/40 |

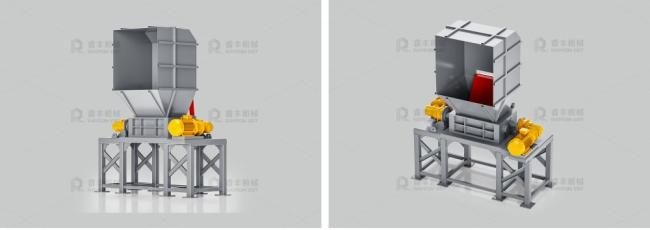

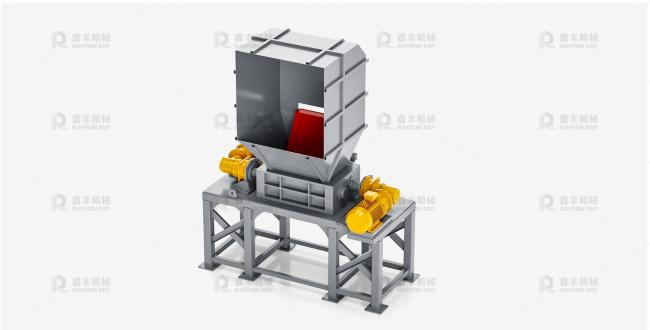

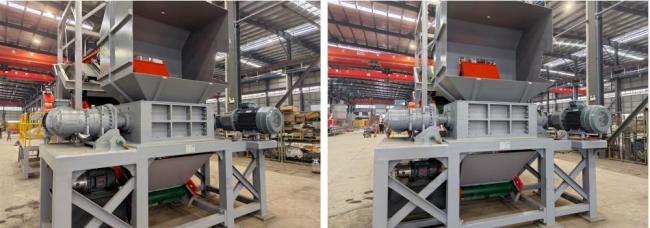

Physical Pictures:
Applications:
All kinds of Large hard plastic,such as PET,HDPE,PP,PS,ABS plastics
PET plastic gallon tank
HDPE plastic barrel,large containers
PP plastic buskets
ABS PS Toy car
Large plastic household appliances
