Automatic Post-Consumer LDPE Plastic Film Scrap Plastic Recycling Washing Line Machine 500-1000 kg/h High Efficiency
Post-Consumer LDPE Plastic Film Scrap Plastic Recycling Washing Line Machine 500-1000 kg/h

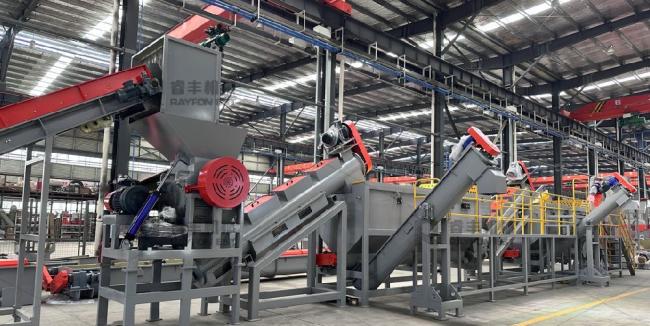

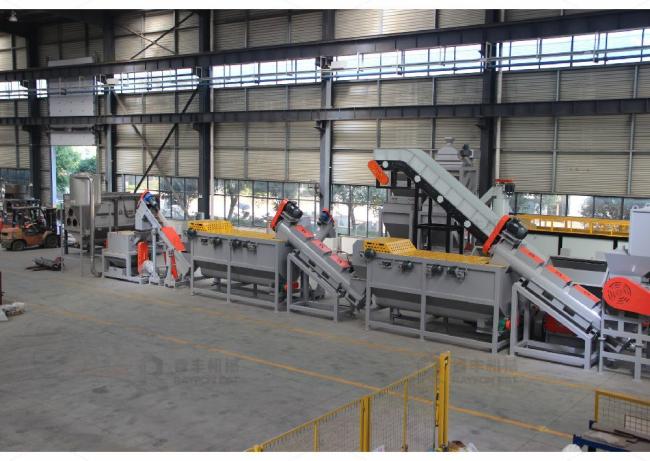

Project Overview
Our LDPE Plastic Film Scrap Plastic Recycling Washing Line is engineered to transform post-consumer & post-industrial agricultural & industrial films( such as mulching film, greenhouse film, packaging film, etc ) into high-quality recycled flakes or pellets. Designed with efficiency and sustainability in mind, this line integrates advanced pretreatment, washing, purification, and drying processes to meet the rigorous demands of the global plastic recycling market.
Process Introduction
From raw material feedstock to final packaging, every stage is optimized to deliver consistent output quality while reducing operational costs and environmental impact. Whether you're entering the LDPE market or scaling existing operations, our washing line offers a reliable, high-performance solution tailored to your production needs.
Material loading → Crushing → Friction washing → Rinsing → Squeezing( Strip shape ) / Semi-plasticizing( popcorn shape ) → Silos
Technical Parameters
| Model | Power | Throughput | Footprint(L*W*H) | Manual | Washnig Type |
| RFLDPE-500 | 400KG/H | 3-5 | Cold Washing | ||
| RFLDPE-1000 | 850KG/H | 4-6 | Cold Washing |
Key Features & Technological Advantages
1.Robust Throughput: Scalable models from 500 kg/h to 1,000 kg/h. Incorporates a two-stage crushing system and specialized double-helix high-speed washing blades to ensure high material throughput with minimal powder loss. This results in higher yield and cleaner flake output.
2.Energy and Water Efficiency: Equipped with high-efficiency motors and an intelligent multi-stage water recycling system, the line significantly reduces power and freshwater consumption—supporting sustainable operations without compromising on capacity or flake quality.
3.Scalable & Customizable Design: Each line is configured based on regional raw material characteristics and end-product requirements. We provide full-service support, including process planning, plant layout, and wastewater treatment system design.
4.Reliable Performance: Innovative crushing and washing technology, result in low powder Loss and high yield.With reference installations already achieving monthly outputs of 1,000 tons per line.
5.Equipped with top-brand motors and cycloidal needle reducers.
6.With 5mm thick steel sheet material in general use.
7.With base paint plus surface coating.
8.With 10mm-12mm thick blades.
9.Extremely long lifespan.
10.Humidity ＜ 5%

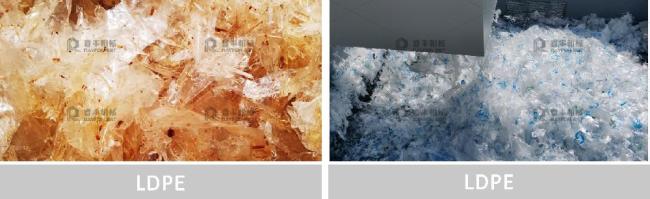

Finished Product
Applications of Output film strips & Granules

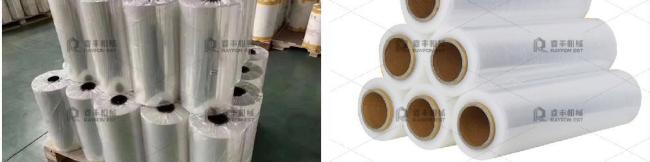

Industrial and Residential wrapping films.
Greenhouse Film and Mulching Film.
Biofuel Such as Pyrolysis Oil.
Application for Film Blowing Industry
Application for Liquid Biofuels Pyrolysis Oil
