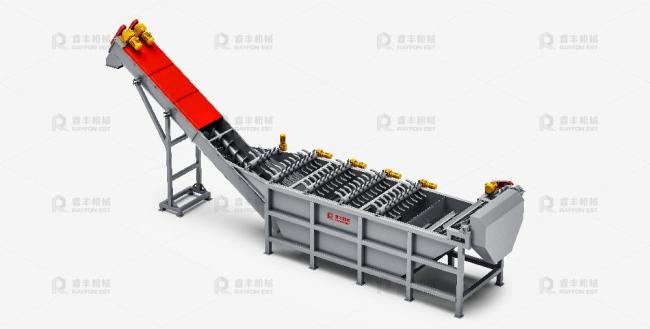

Plastic Sinking-Floating Separation Brine Tank for Floating Materials

Function:
Separates and collects dense plastic fractions (e.g., PET, PVC) that sink in water from lighter floating materials (e.g., PE, PP). It employs continuous feeding, controlled water flow, and specialized conveying mechanisms to achieve high-purity output of the sinking materials.

Key Features:

1.High-Precision Separation: Designed with optimized flow dynamics and weir systems to create a stable medium environment, ensuring highly accurate separation of sinking and floating plastics with minimal cross-contamination.

2.Efficient Sinking Material Recovery: Equipped with a dedicated submersed conveyor (such as a vertical elevator or paddle conveyor) that continuously and automatically removes the settled sinking materials from the bottom of the tank, ensuring consistent throughput.

3.Dual Output System: Simultaneously discharges the target sinking materials (e.g., PET/PVC) via the bottom conveyor and the floating materials (e.g., PE/PP) via a top paddle or flighted conveyor, streamlining the process flow.

4.Robust & Corrosion-Resistant Construction: The main tank and conveying components are constructed from high-grade stainless steel (SS304/SS316), offering excellent resistance to corrosion and abrasion for long-term reliability in wet and demanding environments.

5.Easy Maintenance Access: Designed with large inspection windows and access panels for easy monitoring of the separation process, routine cleaning, and maintenance of internal components.

Equipment Specification:

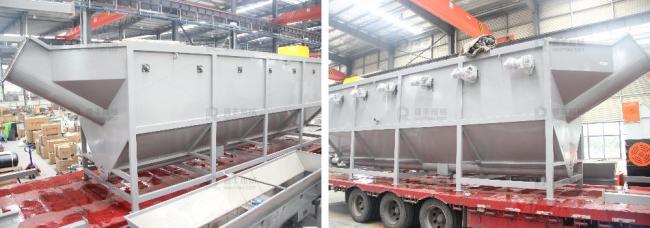

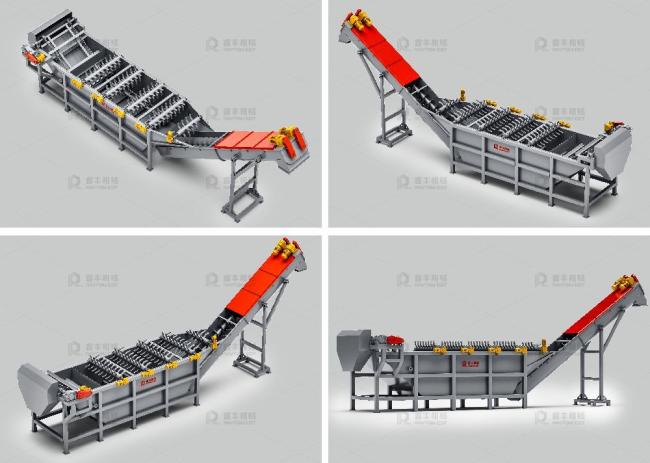

Physical Pictures:

Applications:

All kinds of normal hard plastic flakes,such as PET,PE,PP,HDPE plastic flakes and so on

PET plastic bottle

HDPE daily household waste containers

PP plastic busket, beverage cup

ABS PS Toy car
