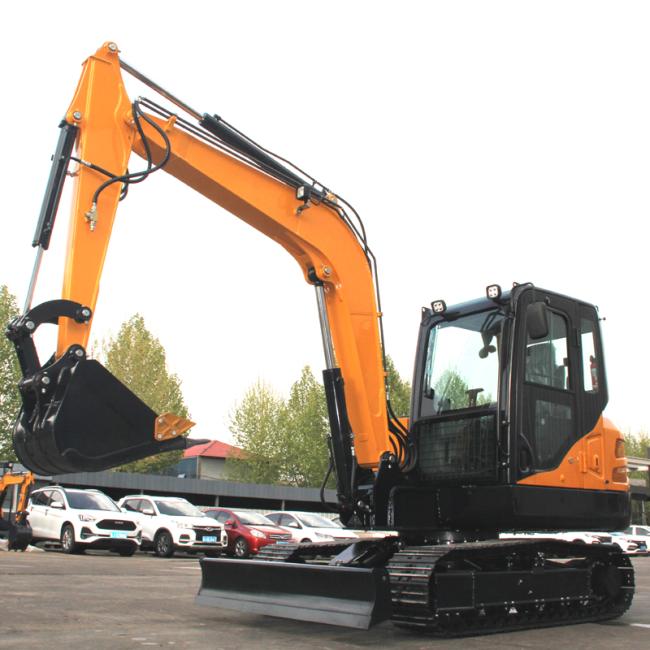

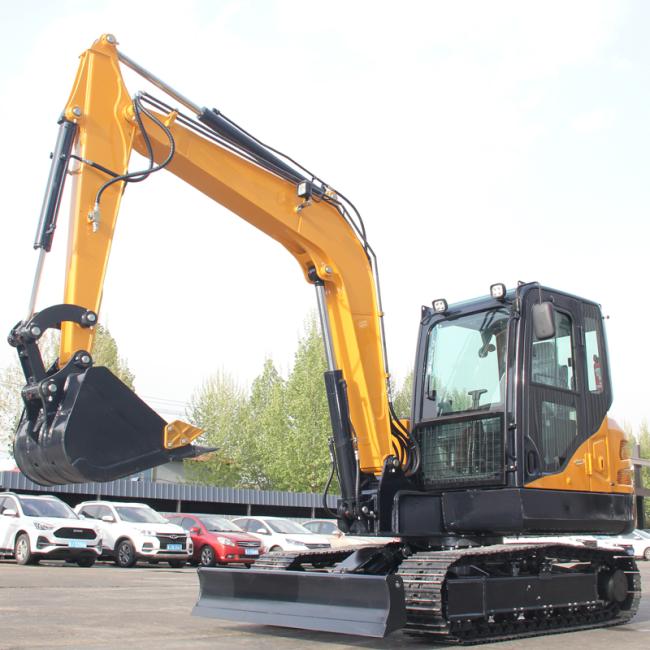

TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
Key attributes
Dimension --
| Description | Unit-Metric | Unit-US |
| Overall length | 5940mm | 234in |
| Overall width | 1880mm | 74in |
| Overall height | 2600mm | 102.4in |
| Cabin height | 2600mm | 102.4in |
| Track length on ground | 1990mm | 78.3in |
| Track gauge | 1480mm | 58.3in |
| Min.ground clearance | 353mm | 14in |
| Swing radius at tail | 1689mm | 66.5in |
| Max.digging height | 5499mm | 216.5in |
| Max.dumping height | 3845mm | 151.4in |
| Max.digging depth | 3808mm | 150in |
| Max.vertical digging depth | 2983mm | 117.5in |
| Max.digging radius | 6128mm | 241.3in |
| Min.swing radius | 2607mm | 102.6in |
| Max.lifting distance of dozer blade | 376mm | 14.8in |
| Max.cutting depth of dozer blade | 474mm | 18.7in |
Detailed Image
 |
 |
|
Machine parts-- Machine parts-- Name: Engine Name: Swing motor Japan KUBOTA engine, strong driving force, Imported famous brand swing motor, swing smoothly low fuel consumption, high economic benefits. Green, environment protection. |
|
 |
 |
|

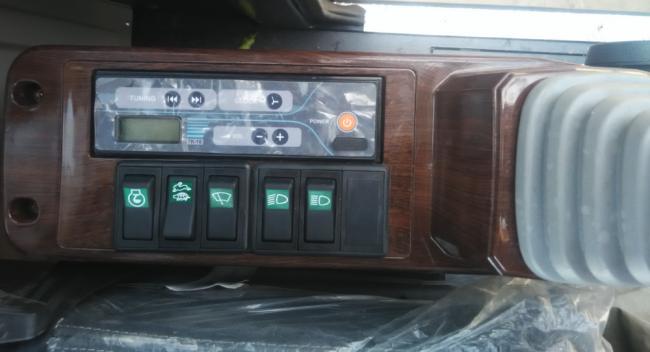

Machine parts-- Machine parts-- Name: Dashboard Name: Display LCD display, easy operation Easy to see the all working state |
|
 |
 |
|
Machine parts-- Machine parts-- Name: Main valve Name:Rear cover, can open three doors Imported valve,reliable performance easy operation, convenient maintenanc |
|
|
Packing &Delivery Packaging-- ♦2units into 40HQ ♦Bulk cargo or RO-RO
Delivery time-- ♦Generally, 15days off production line. ♦Specific time shall be confirmed when order
|
