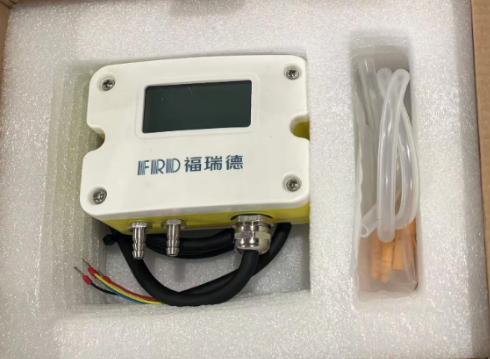

The FD820CG wall-mounted micro-differential pressure transmitter is a high-performance device customized for micro-differential pressure detection in critical application environments. Integrating the latest digital technology in the field of sensor manufacturing, it completely solves the drift problem of small-range transmitters through precise digital temperature compensation and non-linear correction algorithms. The device supports simultaneous monitoring of multiple parameters: differential pressure (0-50Pa~2500Pa), temperature (0℃~60℃), and humidity (0%~100%RH), with high accuracy of 0.5%F.S/1.0%F.S and long-term stability of 0.2%F.S/year. Equipped with multiple output signal options (4-20mA, RS485, etc.) and MODBUS RTU protocol, it supports flexible wall-mounted or embedded installation, with optional Ex ia IIB T6 Ga explosion-proof configuration, serving as a reliable monitoring core for clean workshops, medical negative pressure environments and other scenarios.

• Measuring clean, dry, non-corrosive gases
• A variety of shapes and structures and output method
• Intelligent circuit board, no moving parts,stable and reliable performance
• Can be wall-mounted or embedded for easy installation
• Automatic zero setting in load pressure
• Differential pressure, temperature, humidity multi-configuration display

• Pharmaceutical Industry: Pressure difference, temperature and humidity monitoring in pharmaceutical factory clean workshops and sterile laboratories
• Electronic Manufacturing: Micro-differential pressure environmental control in electronic clean workshops
• Healthcare: Pressure monitoring in infectious disease rooms, hospital negative pressure isolation wards and negative pressure operating rooms
• Emergency Medical Services: Synchronous control of negative pressure environment, temperature and humidity in ambulances
