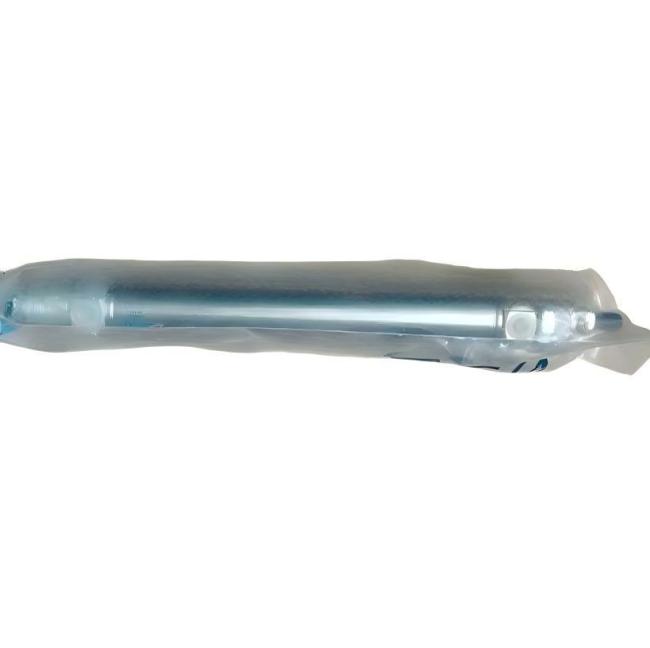

The FESTO DSNU-32-200-PPV-A is a double-acting round cylinder designed for reliable linear motion in compact, fast-cycling industrial automation. As part of the DSNU family, it follows the ISO 6432 mounting and interface concept, which makes it a practical choice when you want interchangeable dimensions, broad accessory support, and predictable integration into machine frames, brackets, and guide units.

This particular configuration combines a 32 mm bore with a 200 mm stroke, which places it in a sweet spot for medium-force tasks that still need a slender cylinder body: pushing, clamping, lifting (with correct safety design), positioning stops, ejectors, door mechanisms, and general actuator duties in packaging, assembly, and material handling. The cylinder uses adjustable pneumatic cushioning at both ends (PPV-A), which is important in real machines: it reduces end-impact energy, lowers noise, protects mounting hardware, and helps stabilize cycle time by preventing harsh mechanical rebounds at high speeds.

A round cylinder is often chosen because it is space-efficient and mechanically straightforward. The DSNU series is built around that idea but adds a practical detail: a robust ecosystem of accessories and standardized dimensions, so you can mount it in many ways without redesigning your machine every time you change a stroke length. For OEMs and maintenance teams, that standardization is the difference between a quick replacement and an afternoon of “why doesn’t this bracket line up anymore?”

From a materials standpoint, the published technical data lists a high-alloy stainless steel cylinder barrel and a high-alloy steel piston rod, with NBR and TPE-U (PU) seals, plus an aluminium alloy cover. That combination is typical for durable pneumatic cylinders that must survive continuous cycling, mild washdown environments (depending on the full assembly), and everyday industrial exposure to oils, dust, and temperature changes. The unit is also listed as RoHS-compliant.

Technical Data Summary (DSNU-32-200-PPV-A)

How to Choose and Use It (engineering reality, not brochure poetry)

1) Speed and cushioning are linked

If you run a cylinder fast without end cushioning, you eventually pay for it—either in noise, loose fasteners, cracked brackets, or inconsistent end positions due to mechanical bounce. The PPV-A adjustable pneumatic cushioning lets you tune deceleration near each end of stroke so the piston approaches the end cap smoothly. In practice, this helps extend service life and keeps the machine feeling “tight” after many cycles.

2) Force expectations: use the numbers correctly

The listed 482.5 N theoretical advance force at 6 bar is a useful reference, but it is not the force you always get at the tooling. Real output depends on:

• your actual supply pressure at the cylinder (after regulators, valves, tubing losses),

• friction in seals and guides,

• the mechanical transmission (linkages, leverage, side loads),

• speed settings and cushioning adjustment.

If your application is borderline on force, it’s usually smarter to increase mechanical advantage or bore size than to “just crank pressure,” because higher pressure can amplify wear and raise safety risk.

3) Side load is the silent cylinder killer

A round cylinder is happiest when it pushes in a straight line. If the rod is asked to guide the load (side load or bending), wear accelerates, seals suffer, and stick-slip appears. If the actuator must handle side forces, consider adding:

• an external guide unit,

• a guided cylinder,

• or mechanical support that ensures the rod only transmits axial force.

4) Integration and maintenance advantages

Because DSNU is built around ISO 6432 style integration and a broad accessory set, it is commonly used in systems that need straightforward maintenance. When standardization is part of your machine philosophy, cylinders like this reduce downtime: replace, align, re-tune cushioning, and you’re back in business.

Typical Applications

The DSNU-32-200-PPV-A is well suited for:

• product divert and pusher mechanisms,

• clamp and stop functions in conveyors,

• carton flaps and gate actuation,

• fixture actuation in assembly lines,

• linear transfer assists where a compact cylinder body is preferred.

Its 200 mm stroke is long enough for meaningful travel while still staying manageable in standard machine envelopes, and the 32 mm bore provides a balanced combination of force and air consumption.

Summary

The FESTO DSNU-32-200-PPV-A is a durable, standardized double-acting round pneumatic cylinder built for everyday industrial motion. The published data highlights a 32 mm bore, 200 mm stroke, G1/8 pneumatic connection, and adjustable pneumatic end cushioning (PPV-A), with a listed product weight of 680 g and a theoretical advance force of 482.5 N at 6 bar.
