Huawei Network Switch S5732-H48UM2CC with 48*100M/1G Ethernet ports,Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++ Ports
Price:
$2640
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5732-H48UM2CC
Part Numbers: 02353HUB, 02353HUB-002, 02353SJT, 02353SJT-001, 02353SJT-003, 02353SJT-004, 02353SJT-010, 02353SJT-011, 02353SJT-013, 02353SJT-014, 02353SJT-020, 02353SJT-021, 02353SJT-023, 02353SJT-024
Next-generation CloudEngine S5732-H Series Multi-GE Switches offer either 24 or 48 downlink ports with speeds up to 10 GE, alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. Designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era, these switches provide optimal performance for modern network infrastructure.
Based on Huawei's unified Versatile Routing Platform (VRP), the switches feature Intent-Driven Network (IDN) capabilities, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a free mobility feature that ensures consistently high-quality user experience across the network.
Quick Specifications
| Model | S5732-H48UM2CC |
| Part Number | 02353HUB, 02353HUB-002, 02353SJT, 02353SJT-001, 02353SJT-003, 02353SJT-004, 02353SJT-010, 02353SJT-011, 02353SJT-013, 02353SJT-014, 02353SJT-020, 02353SJT-021, 02353SJT-023, 02353SJT-024 |
| Switching Capacity | 1.76 Tbit/s / 2.4 Tbit/s |
| Fixed Ports | 48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28 |
| PoE | Supported |
| Extended Slots | One extended slot, supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards |

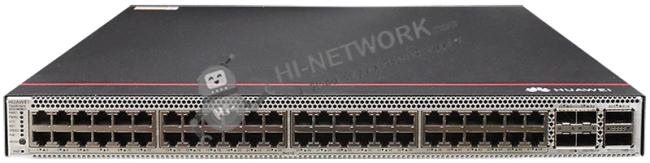

S5732-H48UM2CC Appearance
Key Features
- 10 GE Ultra-Fast Access: Supports 24 or 48 10 GE access ports with 60 W power supply per port for high-performance connectivity.
- Built-in Native AC: Manages up to 1024 wireless APs with converged wireless and wired policy management for unified network control.
- Intelligent Network O&M: Collects device data in real-time through telemetry, collaborating with CampusInsight to quickly detect and resolve issues affecting user experience.

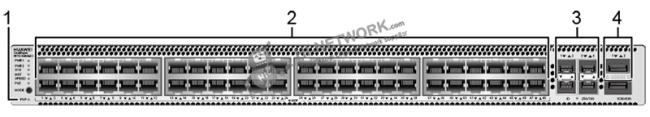

Front Panel Details
| Model | S5732-H48UM2CC | S5732-H48UM2CC |
|---|---|---|
| Part Number | 02353HUB, 02353HUB-002, 02353SJT, 02353SJT-001, 02353SJT-003, 02353SJT-004, 02353SJT-010, 02353SJT-011, 02353SJT-013, 02353SJT-014 | 02353SJT-020, 02353SJT-021, 02353SJT-023, 02353SJT-024 |
| (1) | One PNP button | One PNP button |
| (2) | Forty-eight 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports) | Forty-eight 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ ports (multi-GE ports) |
| (3) | Four 1GE/10GE/25GE SFP28 optical ports | Four 10GE/25GE SFP28 optical ports |
| (4) | Two 40GE/100GE QSFP28 optical ports | Two 40GE/100GE QSFP28 optical ports |

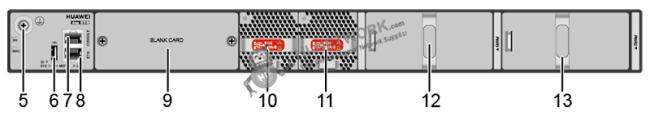

Back Panel Details
| (5) | Ground screw | (10) | Fan module slot 1 |
| (6) | One USB port | (11) | Fan module slot 2 |
| (7) | One console port | (12) | Power module slot 1 |
| (8) | One ETH management port | (13) | Power module slot 2 |
| (9) | Rear card slot |
Product Bundles
| Part Number | Description | Remarks |
|---|---|---|
| 02353HUB 02353HUB-002 | S5732-H48UM2CC Premium (48*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28 + 2*40GE ports or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) | By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. |
| 02353SJT 02353SJT-010 | S5732-H48UM2CC Base (48*100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) | By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s. |
| 02353SJT-001 02353SJT-011 | S5732-H48UM2CC 2.5&10G Bundle (36*100M/1G/2.5G, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*25GE + 2*40GE or 2*100GE, 1*expansion slot, PoE++, 1*1000W AC power) | By default, one 1000 W AC power module is configured. By default, the first 36 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s. By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "36*2.5GE+12*10GE". |
| 02353SJT-003 02353SJT-013 | S5732-H48UM2CC 5G Bundle (48*100M/1G/2.5G/5G Ethernet ports, Optional RTU upgrade to 10G, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, 1*1000W AC power) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, and 5 Gbit/s. You can purchase an RTU license to increase the port rate to 10 Gbit/s. There is a label on the rear side of the device indicating "48*5GE". |
| 02353SJT-004 02353SJT-014 | S5732-H48UM2CC 10G Bundle (48*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28 + 2*40GE or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, 1*1000W AC power) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "48*10GE". |
| 02353SJT-020 | S5732-H48UM2CC Base (48*100M/1G Ethernet ports, Optional RTU upgrade to 2.5/5/10G, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) | By default, no power supply is configured. By default, multi-GE ports support 100 Mbit/s and 1000 Mbit/s. You can purchase an RTU license to increase the port rate to 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s. |
| 02353SJT-021 | S5732-H48UM2CC 2.5&10G Bundle (36*100M/1G/2.5G, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply) | By default, one 1000 W AC power module is configured. By default, the first 36 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, and 2.5 Gbit/s. You can purchase an RTU license to increase the port rate to 5 Gbit/s or 10 Gbit/s. By default, the last 12 multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "36*2.5GE+12*10GE". |
| 02353SJT-023 | S5732-H48UM2CC 5G Bundle (48*100M/1G/2.5G/5G Ethernet ports, Optional RTU upgrade to 10G, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, and 5 Gbit/s. You can purchase an RTU license to increase the port rate to 10 Gbit/s. There is a label on the rear side of the device indicating "48*5GE". |
| 02353SJT-024 | S5732-H48UM2CC 10G Bundle (48*100M/1G/2.5G/5G/10G Ethernet ports, 4*25GE SFP28, 2*100GE QSFP28 ports, 1*expansion slot, PoE++, with AC power supply) | By default, one 1000 W AC power module is configured. By default, multi-GE ports support 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, and 10 Gbit/s. There is a label on the rear side of the device indicating "48*10GE". |
