Huawei Switch S5730-36C-PWH-HI S5730-HI Series with 1 expansion slot agile switches and versatile routing platform for medium and large-sized campus networks
Price:
$1570
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5730-36C-PWH-HI
The Huawei S5730-36C-PWH-HI (02351MQN) is a next-generation agile switch featuring 24 x 10/100/1,000 BASE-T ports, 4 x 10 GE SFP+ ports, 1 expansion slot, and PoE++ capability (without power module).
Developed based on Huawei's Versatile Routing Platform (VRP), these gigabit Ethernet switches offer:
- Fixed full gigabit access with 10 GE uplink interfaces
- Expandable interface options via extension slots
- Software-defined functionality for on-demand service changes
- Super Virtual Fabric (SVF) technology that virtualizes entire networks into single devices
- Comprehensive VPN solutions and advanced security controls
- Intelligent deployment and simplified O&M capabilities
Ideal for medium-to-large campus network access/aggregation layers or small campus/branch core layers.
Quick Specifications
| Model | S5730-36C-PWH-HI |
|---|---|
| Part Number | 02351MQN |
| Memory | 4 GB |
| Flash Memory | 1 GB total (view available space via display version command) |
| PoE Support | Yes (PoE++) |
| Weight | 8.8 kg (19.40 lb) including packaging |
| Dimensions (H × W × D) | Basic: 44.4 mm × 442.0 mm × 424.7 mm (1.75" × 17.4" × 16.72") Maximum: 44.4 mm × 442.0 mm × 451.8 mm (1.75" × 17.4" × 17.79") |

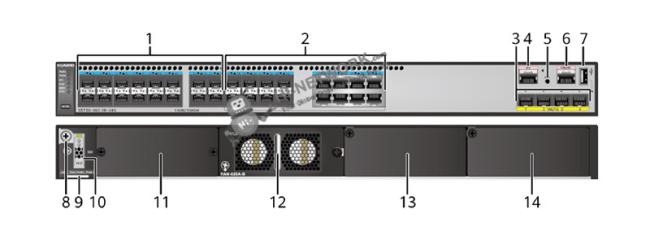

Appearance & Port Layout
| ① | Twenty-four PoE++ 10/100/1000BASE-T ports |
|---|---|
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One PNP button |
| ⑤ | One console port |
| ⑥ | One USB port |
| ⑦ | Ground screw |
| ⑧ | ESN label |
| ⑨ | SSD card slot |
| ⑩ | Rear card slot |
| ⑪ | Fan slot |
| ⑫ | Power module slot 2 |
| ⑬ | Power module slot 1 |
Recommended Accessories
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,80km, LC) |
| eSFP-GE-ZX100-SM1550 | eSFP, GE, Single-mode Module (1550nm,100km, LC) |
Comparison with Similar Models
| Model | S5730-36C-HI | S5730-36C-PWH-HI | S5730-44C-HI | S5730-44C-PWH-HI |
|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1,000 Base-T (PoE++) ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1,000 Base-T (PoE++) ports, 4 x 10 GE SFP+ ports |
| Dimensions | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm |
| Extended Slots | One slot (supports 8-port 10 GE electrical/optical or 2-port 40 GE optical) | One slot (supports 8-port 10 GE electrical/optical or 2-port 40 GE optical) | Two slots (supports 8-port 10 GE electrical/optical or 2-port 40 GE optical) | Two slots (supports 8-port 10 GE electrical/optical or 2-port 40 GE optical) |
| Input Voltage | AC: 100-240V, 50/60 Hz DC: -48V to -60V |
AC: 100-240V, 50/60 Hz DC: -48V to -60V |
AC: 100-240V, 50/60 Hz DC: -48V to -60V |
AC: 100-240V, 50/60 Hz DC: -48V to -60V |
