Huawei Switch S5700-52C-PWR-SI with 48 Ethernet 10/100/1000 PoE+ Ports and 500W AC Power Supply for High-Capacity Networking
Price:
$3410
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5700-52C-PWR-SI (02354135)
The S5700-52C-PWR-SI is a gigabit Layer 3 Ethernet switch based on the new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 48 GE ports (10/100/1000Base-T), it provides substantial switching capacity and constant power supply for users through its special PoE function, making it applicable to various scenarios. The device can be equipped with multiple card modules to satisfy different customer needs. The S5700-52C-PWR-SI integrates advanced technologies in reliability, security, and energy conservation to help enterprise customers build next-generation IT networks.
Quick Specification
| Model | S5700-52C-PWR-SI |
|---|---|
| Part Number | 02354135 |
| Ports | 48 × 10/100/1,000 Base-T |
| Extended Slots | 2 extended slots, one for an uplink subcard and the other for a stack card |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| MAC Address Table Size | 16 MAC |
| Subcard Supported | 4 x 1,000 Base-X SFP subcard 2 x 10 GE SFP+ subcard 4 x 10 GE SFP+ subcard |
| Voltage Required | AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz |
| Power Device | Dual hot-swappable AC power supplies |
| Power Consumption Operational | <917W (PoE: 740W) |
| Forwarding Performance | 132 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 6.2 kg |
| PoE | Supported |
Product Appearance

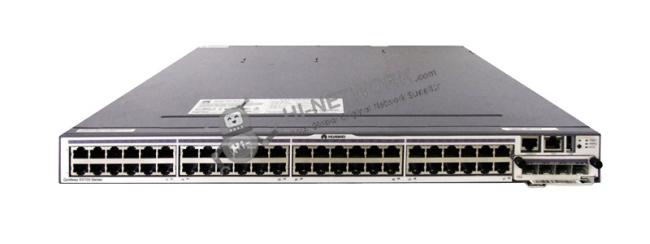

Front Panel Details
Front Panel Components:
(1) Forty-eight PoE+ 10/100/1000BASE-T ports
(2) Front card slot
(3) USB port
(4) ETH management port
(5) One console port
The front card slot is equipped with the card module, but the card module should be purchased separately.
(1) Forty-eight PoE+ 10/100/1000BASE-T ports
(2) Front card slot
(3) USB port
(4) ETH management port
(5) One console port
The front card slot is equipped with the card module, but the card module should be purchased separately.
Back Panel Details
Back Panel Components:
(1) ESD jack
(2) Rear card slot
(3) Fan slot
(4) Power module slot 2
(5) Power module slot 1
Ventilating fan, cards and power modules have been installed in the diagram, but they should be purchased separately.
Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.
(1) ESD jack
(2) Rear card slot
(3) Fan slot
(4) Power module slot 2
(5) Power module slot 1
Ventilating fan, cards and power modules have been installed in the diagram, but they should be purchased separately.
Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.
Recommended Modules
| Model | Description |
|---|---|
| Power module | W0PSA5000 - 500W AC Power Module (gray) |
| Optical Transceivers | OMXD30000 - Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) OSX010000 - Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) SFP-10G-USR - 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) eSFP-GE-SX-MM850 - Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) eSFP-GE-ZX100-SM1550 - eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| Copper Transceivers | SFP-1000BaseT - 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| Card | ES5D000X2S00 - 2 10 Gig SFP+ interface card (used in S5700SI and S5700EI series) |
Comparison with Similar Models
| Models | S5700-52C-SI | S5700-52C-SI-AC | S5700-52C-PWR-SI |
|---|---|---|---|
| Fixed Ports | 48 x 10/100/1,000 Base-T | 48 x 10/100/1,000 Base-T | 48 x 10/100/1,000 Base-T |
| Extended Slots | 2 extended slots, one for an uplink subcard and the other for a stack card | 2 extended slots, one for an uplink subcard and the other for a stack card | 2 extended slots, one for an uplink subcard and the other for a stack card |
| Power Supply | Double hot-swappable AC/DC | Double hot-swappable AC/DC | Double hot-swappable AC, PoE+ |
| Forwarding Performance | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Power Consumption | < 78W | < 78W | < 917W (PoE: 740W) |
