Huawei Switch S5710-52C-PWR-EI with 48 Ethernet 10/100/1000 PoE+ Ports and 4 10 Gig SFP+ Ports for 416 Gbit/s Switching Capacity
Price:
$736
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5710-52C-PWR-EI
The S5710-52C-PWR-EI gigabit enterprise switch is a next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 48 GE ports and 2 extended slots, it provides large switching capacity and high-density GE ports for users, making it widely suitable for various application scenarios including enterprise park access, convergence, and gigabit access in data centers. The switch features multiple card module options and unique PoE functionality. Designed for easy installation and maintenance, it reduces workloads for network planning, construction, and maintenance while incorporating advanced reliability, security, and energy conservation technologies to help enterprise customers build next-generation IT networks.
Quick Specifications
| Model | S5710-52C-PWR-EI |
| Part Number | 02355886 |
| Fixed Ports | 48 x 10/100/1,000 Base-T 4 x 10 GE SFP+ |
| Extended Slots | 2 extended slots |
| Memory (RAM) | 512 MB |
| Flash | 200 MB |
| MAC Address Table Size | 32K MAC |
| Forwarding Performance | 192 Mpps |
| Switching Capacity | 416 Gbit/s |
| Power Supply | AC Double hot-swappable AC power supplies |
| Voltage Required | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz |
| Power Consumption | < 1,043W with two 580W |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| PoE | Supported |

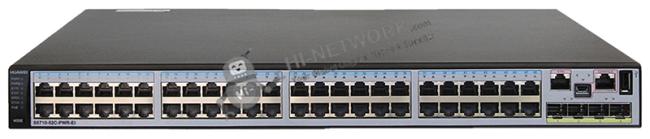

Product Appearance

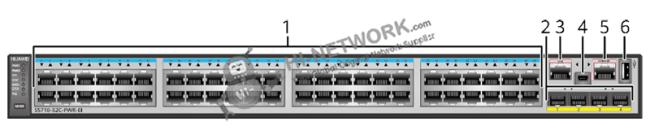

Front Panel Details
Front Panel Components:
| (1) | Forty-eight PoE+ 10/100/1000BASE-T ports |
| (2) | Four 10GE SFP+ ports |
| (3) | One ETH management port |
| (4) | One mini USB port |
| (5) | One console port |
| (6) | One USB port |
Back Panel Details
Back Panel Components:
| (7) | Ground screw |
| (8) | Rear card slot 1 |
| (9) | Rear card slot 2 |
| (10) | ESN label |
| (11) | Power module slot 2 |
| (12) | Power module slot 1 |
Notes: The ground screw is used with a ground cable. You can draw the label out to view the ESN and MAC address of the switch. AC power supply is built-in here.
Recommended Modules
Power Modules:
| Model | Description |
| W2PSA0580 | 580W AC power module |
| W2PSA1150 | 1150W AC Power Module |
Optical Transceivers:
| Model | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Copper Transceivers:
| Model | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
Interface Cards:
| Model | Description |
| ES5D21X02S00 | 2 10 Gig SFP+ interface card (used in S5710EI series) |
| ES5D21G08S00 | 8 Gig SFP interface card (used in S5710EI series) |
| ES5D21G08T00 | 8 Ethernet 10/100/1000 ports interface card (used in S5710EI series) |
Model Comparison
| Models | S5710-52C-EI | S5710-52C-EI-AC | S5710-52C-PWR-EI | S5710-52C-PWR-EI-AC |
|---|---|---|---|---|
| Fixed Ports | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ |
| Extended Slots | 2 extended slots for uplink subcards | 2 extended slots for uplink subcards | 2 extended slots for uplink subcards | 2 extended slots for uplink subcards |
| Power Supply | Double hot-swappable AC/DC | AC power supply | Double hot-swappable AC power supplies | Double hot-swappable AC power supplies |
| Forwarding Performance | 192 Mpps | 192 Mpps | 192 Mpps | 192 Mpps |
| Switching Capacity | 416 Gbit/s | 416 Gbit/s | 416 Gbit/s | 416 Gbit/s |
| Power Consumption | < 165W | < 165W | PoE model: < 1,043W with two 580W AC supplies (PoE: 740W) or < 1,625W with two 1,150W AC supplies (PoE: 1,440W) | PoE model: < 1,043W with two 580W AC supplies (PoE: 740W) or < 1,625W with two 1,150W AC supplies (PoE: 1,440W) |
