Huawei Switch S5720-56C-EI-48S-DC with 48 Gig SFP Ports 4 10 Gig SFP+ and 150W DC Power Supply
Price:
$3528
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5720-56C-EI-48S-DC
The Huawei S5720-56C-EI-48S-DC Gigabit Switch (Part Number: 02350NHP) delivers resilient, energy-efficient Gigabit Ethernet ports for access switching in data centers and aggregation switching in enterprise campus networks. Featuring 48 x 100/1000 Base-X Ethernet ports and 4 x 10G SFP+ ports, this switch offers enhanced performance through advanced processing hardware, 10 Gbit/s uplink ports, and extensive MAC address and routing tables. With Super Virtual Fabric (SVF) support, it enables intelligent virtualization, iStack clustering, and N+1 backup operation for simplified operations and high availability. Mature IPv6 capabilities ensure seamless migration to next-generation IP networking, helping customers build reliable, secure, and high-performance IT infrastructure.
Quick Specifications
| Model | S5720-56C-EI-48S-DC |
|---|---|
| Part Number | 02350NHP |
| Memory (RAM) | 2 GB |
| Flash | 512 MB total (view available flash memory using display version command) |
| PoE Support | Not supported |
| Weight with Packaging | 9.9 kg (21.83 lb) |
| Dimensions (H x W x D) | Basic dimensions: 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions: 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |

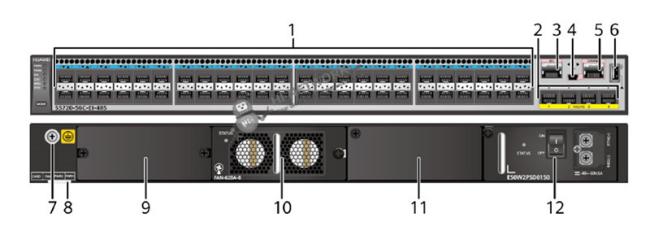

Appearance & Port Layout
Port Identification
| ① | Forty-eight 100/1000BASE-X ports |
|---|---|
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One mini USB port |
| ⑤ | One console port |
| ⑥ | One USB port |
| ⑦ | Ground screw |
| ⑧ | ESN label |
| ⑨ | Rear card slot |
| ⑩ | Fan slot |
| ⑪ | Power module slot 2 |
| ⑫ | Power module slot 1 |
Recommended Accessories
| Category | Model | Description |
|---|---|---|
| Power Module | ES0W2PSA0150 | 150W AC Power Module (Black) |
| Power Module | ES0W2PSD0150 | 150W DC Power Module (Black) |
| Optical Transceiver | eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| Optical Transceiver | SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| Optical Transceiver | S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| Optical Transceiver | S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| Optical Transceiver | SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Optical Transceiver | SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| Optical Transceiver | OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| Optical Transceiver | OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Fan Module | FAN-028A-B | S5700 Fan box (F, FAN panel side intake) |
| Card | ES5D21X02S01 | 2 10 Gig SFP+ Interface Card (used in S5720EI series) |
| Card | ES5D21X02T01 | 2 10 Gig RJ45 Interface Card (used in S5720EI series) |
| Card | ES5D21VST000 | Dedicated stack card with 2*QSFP+ interface (Including one PCS of 1M QSFP+ cable, Used in S5720EI series) |
Comparison with Similar Models
| Feature | S5720-56C-EI-DC | S5720-56C-PWR-EI-DC | S5720-56C-EI-48S-DC |
|---|---|---|---|
| Fixed Ports | 48 x 10/100/1000 Base-T, 4 x 10 Gig SFP+ | 48 x 10/100/1000 Base-T, 4 x 10 Gig SFP+ | 48 x 100/1000 Base-X SFP, 4 x 10 Gig SFP+ |
| Extended Slots | One extended | One extended | One extended |
| PoE Support | Not supported | Supported | Not supported |
| Forwarding Performance | 162 Mpps | 162 Mpps | 162 Mpps |
| Switching Capacity | 598 Gbit/s | 598 Gbit/s | 598 Gbit/s |
| Front Power Input | No | No | No |
| Power Consumption | 40.5W | without PD: 53.5W, with PD: < 1,564.8W (PoE: 1,440W) | 68.8W |
