Huawei Switch S5700-28TP-PWR-LI-AC with 24 Ethernet 10/100/1000 PoE+ Ports, 256 Gbit/s Switching Capacity, and 42 Mpps Forwarding Performance
Price:
$1040
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5700-28TP-PWR-LI-AC
The S5700-28TP-PWR-LI-AC (Part Number: 98010537) is a next-generation energy-saving gigabit enterprise switch developed by Huawei. Featuring 24 Ethernet ports, 2 Gig SFP ports, and 2 dual-purpose 10/100/1,000 or SFP ports, this switch delivers substantial switching capacity and high-density GE ports to support 10 Gbit/s upstream transmissions. It is widely deployed in enterprise park access, network convergence, and data center gigabit access scenarios. With advanced energy conservation technology and PoE functionality, the S5700-28TP-PWR-LI-AC enables enterprise customers to build reliable and secure next-generation IT networks.
Quick Specifications
| Model | S5700-28TP-PWR-LI-AC |
| Part Number | 98010537 |
| Fixed Ports | 24 x 10/100/1,000 Base-T Ethernet ports, 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP |
| MAC Address Table Size | 16 MAC |
| Voltage Required | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz |
| Power Device | AC power supply, supporting RPS |
| Power Consumption Operational | < 469.7W |
| Forwarding Performance | 42 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 310 mm x 43.6 mm |
| Weight | 5.7kg |
Product Appearance

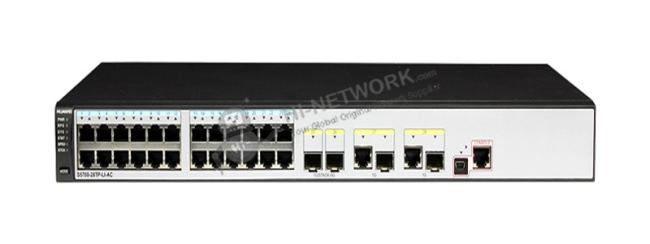

Front Panel Details
Front Panel Components:
| (1) | Twenty-four PoE+ 10/100/1000BASE-T ports | (4) | One mini USB port |
| (2) | Two 1000BASE-X ports | (5) | One console port |
| (3) | Two combo ports |
Back Panel Details
Back Panel Components:
| (1) | Ground screw | (3) | Jack for AC terminal locking latch |
| (2) | RPS socket | (4) | AC socket |
Back Panel Notes:
- The ground screw is used with a ground cable.
- RPS socket is used with an RPS cable, which is not hot swappable. A PoE switch can have an RPS power supply connected to this socket to provide inputs for system power supply and PoE power supply. The two inputs are independent of each other. The RPS power supply can also be used as a backup of the system power supply when it does not provide PoE power.
- The AC terminal locking latch is not delivered with the switch.
- AC socket is used with an AC power cable.
Recommended Optical Modules
FE-SFP Optical Transceiver
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
GE-SFP Optical Transceiver
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
GE Copper Transceiver
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
Comparison with Similar Models
| Models | S5700-28P-LI-AC | S5700-28P-PWR-LI | S5700-28TP-LI-AC | S5700-28TP-PWR-LI-AC |
|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports |
| Power Supply | AC | AC | AC | AC |
| PoE | Not supported | Supported | Not supported | Supported |
| Forwarding Performance | 42 Mpps | 42 Mpps | 42 Mpps | 42 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
