Huawei Switch S5700-28X-LI-AC with 24 Ethernet 10/100/1000 Ports and 4 10 Gig SFP+ Ports for High-Speed Networking
Price:
$1246
MOQ:
1
Delivery Time:
3-5 days
Brand:
Huawei
Product Description
Huawei Switch S5700-28X-LI-AC
Part Number: 02354215
This enterprise-grade switch features 24 x 10/100/1,000 Base-T Ethernet ports and 4 x 10 GE SFP+ ports for high-performance networking applications.
Quick Specification
| Model | S5700-28X-LI-AC |
| Part Number | 02354215 |
| Downlink Ports | 24 x Ethernet 10/100/1000 ports |
| Uplink Ports | 4 x 10G SFP+ |
| MAC Address | 16K |
| VLAN | 4K |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack | Supported |
| Stack Connection Mode | Service port connection |
| Power | AC 110/220V & RPS1800 redundant power supply |
| Heat Dissipation | Forced air cooling by Built-in fans |
| Installation Mode | Rack mounting, desk mounting, wall mounting |
| 300-mm Deep Cabinet | Not Supported |
| Dimensions (W x D x H) | 44.2 cm x 22 cm x 4.36 cm |

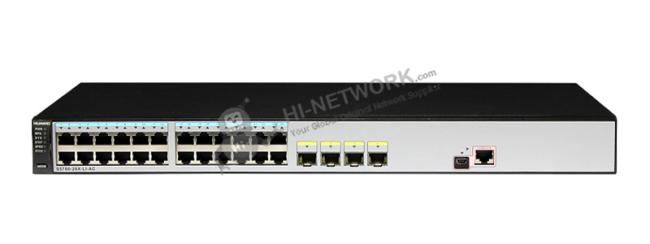

Product Appearance
Front Panel Details
(1) Switch LEDs
(2) Mode Button
(3) 24 x 10/100/1000 BASE-T Ethernet Electrical Ports
(4) 4 x 10G SFP+ Ethernet Optical Ports
(5) One Mini USB Port
(6) One RJ45 Console Port
The 4 x 10G SFP+ Ethernet Optical Ports support GE, GE-CWDM, GE-DWDM, 10GE SFP+, 10GE-CWDM optical modules, and GE copper modules.
This switch supports USB or RJ45 console connectivity for device management.
Back Panel Details
(1) Ground screw - Used with a ground cable
(2) RPS Socket - Used with an RPS cable (not hot swappable)
(3) Jack for AC Terminal Locking Latch
(4) AC Socket - Used with an AC power cable
Note: The AC terminal locking latch is not delivered with the switch.
Supported Transceivers
The S5700-28X-LI-AC supports optical transceivers (GE, GE-CWDM, GE-DWDM, 10GE SFP+, 10GE-CWDM) and GE copper transceivers.
Recommended GE Optical Transceivers
| Model | Description |
|---|---|
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx), 80km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
Recommended GE-CWDM Optical Transceivers
| Model | Description |
|---|---|
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| CWDM-SFPGE-1591 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1591nm, 80km, LC) |
| CWDM-SFPGE-1611 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1611nm, 80km, LC) |
Recommended GE-DWDM Optical Transceivers
| Model | Description |
|---|---|
| DWDM-SFPGE-1548-51 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1548.51nm, 120km, LC) |
| DWDM-SFPGE-1549-32 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1549.32nm, 120km, LC) |
| DWDM-SFPGE-1550-12 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1550.12nm, 120km, LC) |
| DWDM-SFPGE-1550-92 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1550.92nm, 120km, LC) |
Recommended 10GE SFP+ Optical Transceivers
| Model | Description |
|---|---|
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| OSX040N01 | Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-BXD1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1330nm / RX1270nm, 10km, LC) |
| SFP-10G-BXU1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm / RX1330nm, 10km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC) |
Recommended 10GE-CWDM Optical Transceivers
| Model | Description |
|---|---|
| SFP-10G-ZCW1471 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1471nm, 70km, LC) |
| SFP-10G-ZCW1491 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1491nm, 70km, LC) |
| SFP-10G-ZCW1511 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1511nm, 70km, LC) |
| SFP-10G-ZCW1531 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1531nm, 70km, LC) |
| SFP-10G-ZCW1551 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1551nm, 70km, LC) |
| SFP-10G-ZCW1571 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1571nm, 70km, LC) |
| SFP-10G-ZCW1591 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1591nm, 70km, LC) |
| SFP-10G-ZCW1611 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1611nm, 70km, LC) |
Recommended GE Copper Transceivers
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
Comparison with Similar Model
| Feature | S5700-28X-LI-AC | S5700-28X-LI-24S-AC |
|---|---|---|
| Downlink Ports | 24 x 10/100/1,000 Base-T Ethernet ports | 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports |
| Uplink Ports | 4 x 10 GE SFP+ ports | 4 x 10 GE SFP+ ports |
| Power Supply | AC model, supporting RPS | AC model, supporting RPS |
