Huawei CloudEngine Switch S5731-S24P4X with 24*10/100/1000BASE-T Ports, 4*10GE SFP+ Ports, and PoE+ Support
Price:
$829
MOQ:
1
Delivery Time:
3-5 work days
Brand:
Huawei
Product Description
Huawei CloudEngine Switch S5731-S24P4X
The Huawei CloudEngine S5731-S24P4X (Part Numbers: 02353AHX/02353AHX-001/02353AHX-003/02353AHX-004) is a next-generation switch built on high-performance hardware and the Huawei Versatile Routing Platform (VRP). This advanced switch supports simplified operations and maintenance (O&M), intelligent stack (iStack), and flexible Ethernet networking. It delivers enhanced Layer 3 capabilities and mature IPv6 features, making it suitable for various deployment scenarios including campus network access/aggregation and Metropolitan Area Network access.
Quick Specifications
| Specification | Details |
|---|---|
| Model | S5731-S24P4X |
| Part Number | 02353AHX/02353AHX-001/02353AHX-003/02353AHX-004 |
| Memory (RAM) | 2 GB |
| Flash Memory | 1 GB total (view available size using display version command) |
| PoE Support | Supported |
| Dimensions (H x W x D) | Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum: 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |

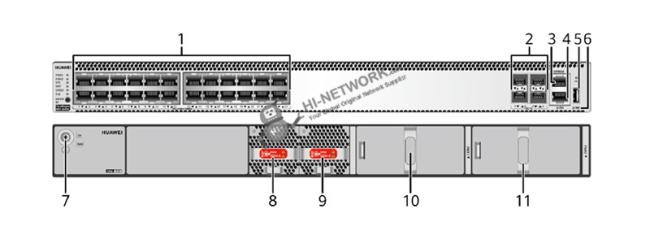

Front Panel Overview
Front Panel Components
| Component | Description |
|---|---|
| ① | Twenty-four PoE+ 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One console port |
| ④ | One ETH management port |
| ⑤ | One USB port |
| ⑥ | One PNP button |
| ⑦ | Ground screw |
| ⑧ | Fan module slot 1 |
| ⑨ | Fan module slot 2 |
| ⑩ | Power module slot 1 |
| ⑪ | Power module slot 2 |
Compatible Accessories & Modules
| Product | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| SFP-10G-ER-SM1270-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX 1270nm/RX 1330nm, 40km, LC) |
Model Comparison
| Feature | S5731-S24P4X | S5731-S24T4X | S5731-S48P4X | S5731-S48T4X |
|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 442 mm x 420 mm x 43.6 mm | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 1 U | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
| Chassis Height | 1 U | 8.4 kg | 1 U | 1 U |
| Chassis Weight (with packaging) | 8.6 kg | • 150 W AC (pluggable) • 600 W AC (pluggable) • 1000 W DC (pluggable) | 8.8 kg | 8.55 kg |
| Power Supply Type | 1000 W PoE AC (pluggable) | • AC input (150 W AC): 100 V AC to 240 V AC, 50/60 Hz • AC input (600 W AC): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC | 1000 W PoE AC (pluggable) | • 150 W AC (pluggable) • 600 W AC (pluggable) • 1000 W DC (pluggable) |
| Rated Voltage Range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz | • AC input (150 W AC): 100 V AC to 240 V AC, 50/60 Hz • AC input (600 W AC): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC | |
| Maximum Power Consumption | • 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W) | 114 W | • 132 W (without PD) • 1750 W (with PD, PD power consumption of 1440 W) | 124 W |
Detailed Technical Specifications
Part Number: 02353AHX/02353AHX-001/02353AHX-003/02353AHX-004
Model: S5731-S24P4X
Memory (RAM): 2 GB
Flash Memory: 1 GB total (view available size using display version command)
Mean Time Between Failures (MTBF): 57.21 years
Mean Time To Repair (MTTR): 2 hours
Availability: > 0.99999
Service Port Surge Protection: Common mode: ±6 kV
Power Supply Surge Protection: Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode. Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D): Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.). Maximum: 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging): 8.6 kg (18.96 lb)
Stack Ports: 10GE SFP+ ports on the front panel
RTC: Supported
RPS: Not supported
PoE: Supported
Rated Voltage Range: AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz. High-Voltage DC input: 240 V DC. DC input: -48 V DC to -60 V DC
Maximum Voltage Range: AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz. High-Voltage DC input: 190 V DC to 290 V DC. DC input: -38.4 V DC to -72 V DC
Maximum Power Consumption (100% throughput, full speed of fans): Not providing PoE function: 121 W. 100% PoE loads: 977 W (PoE: 720 W)
Typical Power Consumption (30% traffic load, ATIS standard): 95 W
Operating Temperature: -5°C to +45°C (23°F to 113°F) at 0-1800 m (0-5906 ft.) altitude
Storage Temperature: -40°C to +70°C (-40°F to +158°F)
Noise (27°C, sound power): < 62.3 dB(A)
Relative Humidity: 5% to 95%, noncondensing
Operating Altitude: 0-5000 m (0-16404 ft.)
Certification: EMC certification, Safety certification, Manufacturing certification
