Huawei CloudEngine Switch S6730-H24X6Y with 24*10GE SFP+ Ports and 6*40GE QSFP28 Ports in 1U Chassis
Price:
$2658
MOQ:
1
Delivery Time:
3-5 work days
Brand:
Huawei
Product Description
Huawei CloudEngine Switch S6730-H24X6Y
Huawei S6730-H24X6Y (24*10GE SFP+ ports, 6*40GE QSFP ports, without power module)
Important Note: Please add 2 power supply units for S6730. View Power Supply Options
Quick Specifications
| Model | S6730-H24X6Y |
| Part Number | Bundle version: 02353GFC/02353GFC-001/02353GFC-003/02353GFC-004 Without bundle: 02353FSG/02353FSG-001/02353FSG-005/02353FSG-007 |
| Memory | 4 GB |
| Flash Memory | 2 GB total (view available size via display version command) |
| PoE Support | Not supported |
| Weight with Packaging | 8.9 kg (19.62 lb) |
| Weight without Packaging | 5.62 kg (12.39 lb) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |

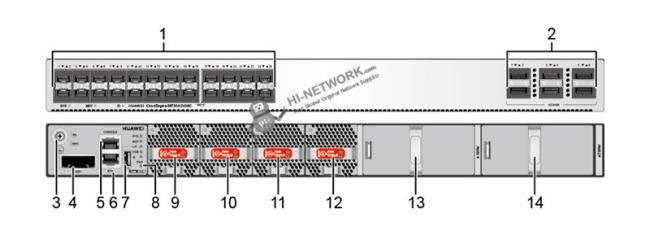

Front Panel Overview
Front Panel Components
| ① | Twenty-four 10GE SFP+ ports |
| ② | Six 40GE QSFP28 optical ports |
| ③ | Ground screw |
| ④ | SSD card slot |
| ⑤ | One console port |
| ⑥ | One ETH management port |
| ⑦ | One USB port |
| ⑧ | One PNP button |
| ⑨-⑫ | Four fan module slots |
| ⑬-⑭ | Two power module slots |
Recommended Accessories
Compatible Optical Transceivers
| Model | Description |
|---|---|
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| OSX040N01 | Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-ER-1310 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC) |
| SFP-10G-BXU1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC) |
Model Comparison
| Feature | S6730-H24X6Y | S6730-H48X6C |
|---|---|---|
| Fixed Ports | 24 x 10 Gig SFP+ 6 x 40G QSFP28 | 48 x 10 Gig SFP+ 6 x 40/100 Gig QSFP28 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
| Chassis Height (U) | 1U | 1U |
| Input Voltage | AC: 100-240V AC, 50/60 Hz DC: -48V to -60V DC | AC: 100-240V AC, 50/60 Hz DC: -48V to -60V DC |
| Input Current | AC 600W: Max 8A DC 1000W: Max 30A | AC 600W: Max 8A DC 1000W: Max 30A |
| Maximum Power Consumption | 231W | 274W |
| Minimum Power Consumption | 97W | 97W |
Technical Specifications
Part Number: Bundle: 02353GFC series / Without bundle: 02353FSG series
Model: S6730-H24X6Y
Dimensions: 442 mm x 420 mm x 43.6 mm
Chassis Height: 1U
Weight with Packaging: 8.9 kg (19.62 lb)
Weight without Packaging: 5.62 kg (12.39 lb)
Typical Power Consumption: 149W
Maximum Power Consumption: 254W
Typical Heat Dissipation: 508.4 BTU/hour
Maximum Heat Dissipation: 866.67 BTU/hour
Heat Dissipation Mode: Air cooling with intelligent fan control
Power Supply: Pluggable power modules
Rated Input Voltage: AC: 100-240V AC; DC: -48V to -60V DC
Input Voltage Range: AC: 90-290V AC; DC: -38.4V to -72V DC
Memory: 4 GB
Flash Memory: 2 GB total
Power Slots: 2
Redundant Power Supply: 1+1 (AC and DC modules compatible)
Fan Type: Pluggable
Noise Level: 52 dB(A) acoustic pressure, 65 dB(A) acoustic power
Airflow Direction: Front-to-rear
Operating Temperature: -5°C to +45°C (23°F to 113°F)
Storage Temperature: -40°C to +70°C (-40°F to +158°F)
Operating Humidity: 5% to 95% RH (non-condensing)
Operating Altitude: 0-5000 m (0-16404 ft)
MTBF: 62.27 years
MTTR: 2 hours
Availability: >0.99999
10GE Optical Interfaces: 24
100G Optical Interfaces: 6
USB: Supported
Console Port: RJ45
ETH Management Port: RJ45
PoE Support: Not supported
