Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn for 40W 60W 80W 100W 120W

Price Negotiable
Price: Contact us with details.
MOQ: 10
Delivery Time: 5-8 days
Brand: Kingconn
Product Description

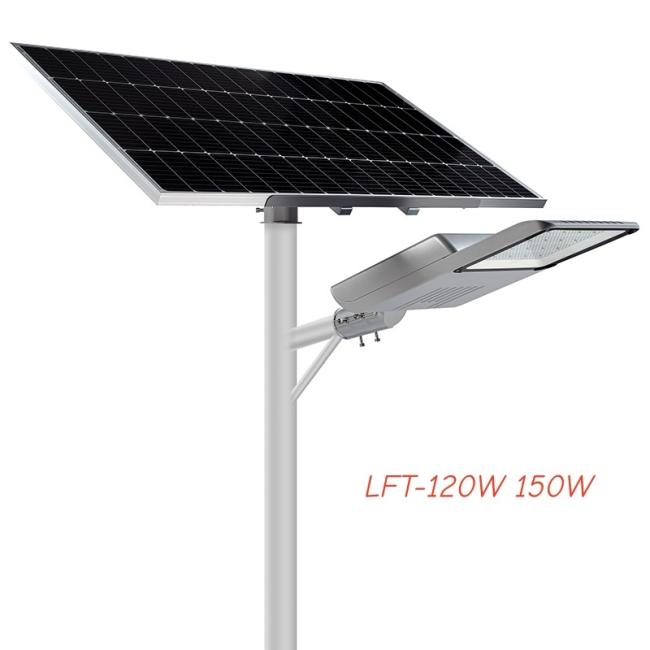

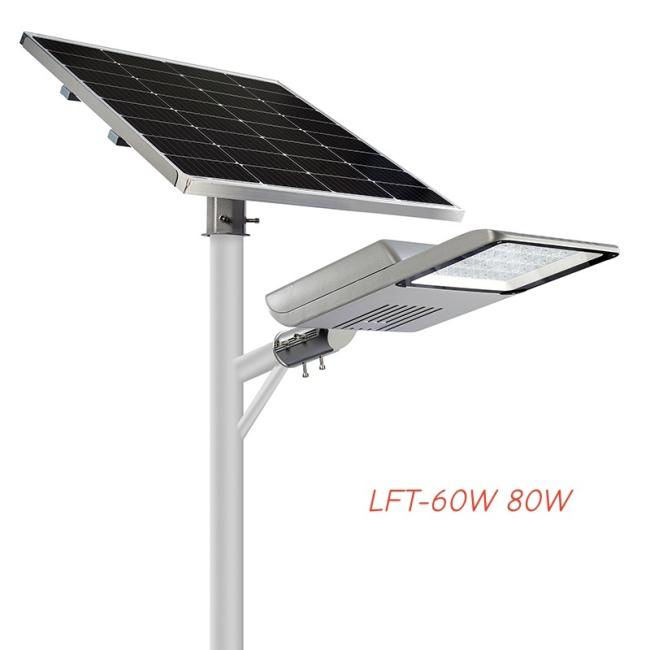

Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn for 40W 60W 80W 100W 120W


Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn, with separate solar panel, controller, battery and LED light source. It offers flexible installation, high efficiency and stable performance. The system uses high-efficiency monocrystalline solar panel and long-life LiFePO4 battery, charging automatically during the day and lighting at night. It features high brightness, low light decay, good heat dissipation, IP65 waterproof and easy maintenance. Widely used for roads, parks, communities, squares and other outdoor lighting projects.




1.Paremeter for Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn


MODEL

LFT-40W LFT-60W LFT-80W LFT-100W LFT-120W
 Type1

Batery:LiFePO412.8V,30AH,384WH
Solar panels:Mono 18V/80W

Solar panel size:550*760*25
4-core high luminous efficacySMD3030,192PCS

Battery:LiFePO4 12.8V,45AH,576WH
Solar panels:Mono 18V/120W          Solar panel size:800*760*30mm
4-core high luminous efficacy SMD3030,192PCS
Battery:LiFePO4 M12.8V,60AH,768WH
Solar panels:Mono 18V/160W        Solar panel size:1040*760*30mm
4-core high luminous efficacySMD3030,256PCS
Battery:LiFePO4  12.8V,75AH,960WHSolar panels:Mono 18V/200W            Solar panel size:1320*760*30mm
4-core high luminous efficacySMD3030,256PCS
Battery:LiFePO4  25.6V,45AH,1152WH
Solar panels:Mono 36V/240W               Solar panel size:1540*760*30mm
4-core high luminous efficacySMD3030,384PCS
Type2

Battery:LiFePO412.8V,45AH,576WH
Solar panels:Mono 18V/120W

solar panel size:
800*760*30*25
10-core high luminous efficacySMD5050,64PCS

Battery:LiFePO4  12.8V,60AH,768WH
Solar panels:Mono 18V/180W            solar panel size:1180*760*30*25
10-core high luminous efficacySMD5050,64PCS
Battery:LiFePO4  12.8V,75AH,960WH
Solar panels:Mono 18V/240W        solar panel size:1540*760*30*25
10-core high luminous efficacySMD5050,96PCS
Battery:LiFePO4  12.8V,90AH,1152WH
Solar panels:Mono 18V/260W  solar panel size:1720*770*35*25
10-core high luminous efficacySMD5050,96PCS
Battery:LiFePO4  12.8V,90AH,1152WH
Solar panels:Mono 36V/280W                 solar panel size:1720*770*35*25
10-core high luminous efficacySMD5050,128PCS
Light Size 810*95*320mm
 Lighting effects 196.23LM/W 193.84LM/W 192.75LM/W   194.16LM/W         193.02LM/W
Protection grade IP66
Solar panel
conversion efficiency
23.8%
Brightness 7850LM 11631LM 15420LM  19416LM     23163LM
Controller MPPT controller
Light angle T2 / 3 / 4 / 5 / transmittance: >95%
Cloud platform
system management
Iot Control Management System (optional)
Lighting Method 100% for the first 4 hours, 50% for the middle 2 hours, and 30% for the last 6 hours
Discharge time 3-5rainy days
Installation Height 6-7Meter     7-8 meter 8-10meter  10-12meter  12-15meter
Lamp pole sleeve interface 65MM


Solar panel mounting bracket (adjustable angle)

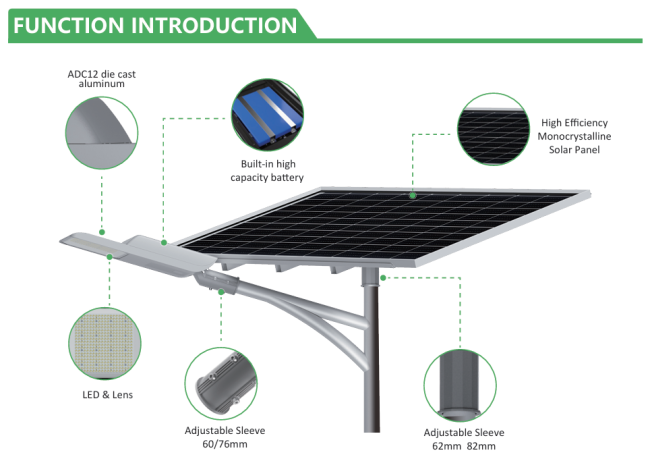

Feature for Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn


1. The heat sink is made of ADC12 aluminum with a thickened anti-corrosion paint finish.


2. No additional wiring is required, saving costs; multiple mounting brackets are available for tubular and arm mounting.


3. Direct light emission design, high-transmittance lens with tempered glass, light transmittance over 95%, selectable beam angle, high lighting effects.


4. Uses 4-core high-brightness LEDs, high lighting effects, low light decay, and high energy efficiency.


5. High thermal conductivity aluminum substrate and heat sink, low temperature rise, good overall lamp heat dissipation, and longer lifespan.


6. Our company solemnly promises a 3-year warranty and lifetime cost-based maintenance.


7. Assembly line operation, large-scale production, stable product performance, and guaranteed quality.
