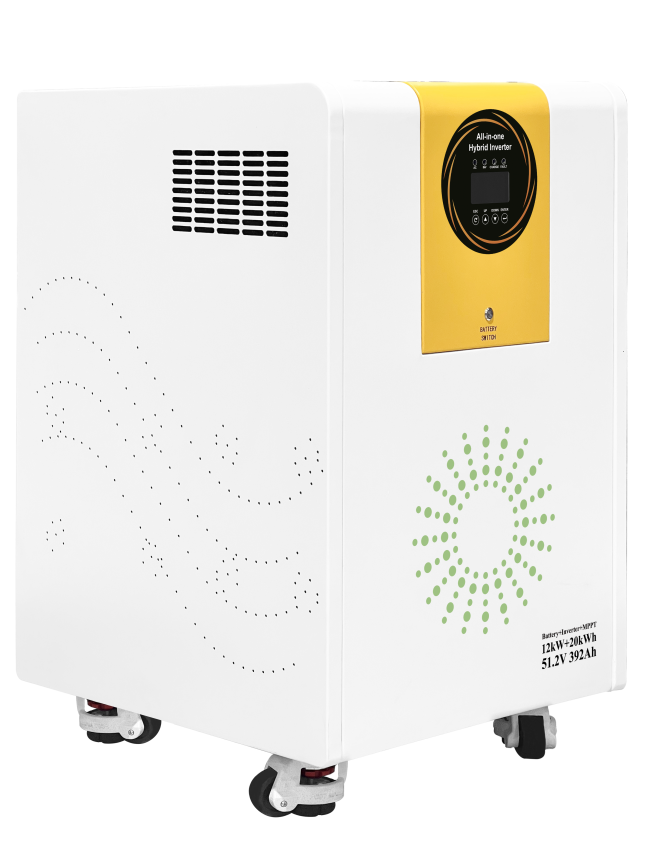

All-In-One 12kW 20kWh Hybrid Solar ESS — Pure Sine Wave, 96% Efficiency, 8000-Cycle LiFePO4 Backup Power for Home & Business
| Parameter | Specification |
|---|---|
| Rated Power | 12KVA / 12KW |
| Battery Energy | 20kWh (20,000Wh) |
| Nominal Voltage | 51.2V (16S) |
| Nominal Capacity | 392Ah |
| PV Input | Dual MPPT, up to 15,000W, 500VDC |
| Max Charging Current | 160A (PV) / 120A (Grid) |
| Max Discharge Current | 200A |
| Output Waveform / Voltage | Pure Sine Wave, 220/240VAC ±5% |
| Cycle Life | ≥8,000 cycles (80% DOD, 25°C) |
| Dimension / Net Weight | 520×463×760mm / 163kg |
1.Peak 96% PV-to-inverter efficiency and pure sine wave output slash energy loss, so more of every sunbeam and battery watt reaches your appliances and cuts daily power bills.
2.Grade-A LiFePO4 cells deliver 8,000+ charge cycles at 80% DOD — over 20 years of dependable service, far outlasting conventional batteries and slashing long-term replacement cost.
3.A 20kWh pack at 51.2V / 392Ah holds a full day of home or shop power. Run TVs, AC, and lighting through blackouts—grid-down backup you can actually live on.
1.A 10ms transfer keeps computers and sensitive electronics alive during outages; appliances switch within 20ms. No flicker, no downtime, seamless grid-to-battery backup.
2.Dual 7.5kW MPPT trackers accept up to 15,000W solar and 500VDC input, squeezing maximum harvest from rooftop arrays while staying compatible with 50/60Hz grids worldwide.
3.A compact 520×463×760mm cabinet on wheels with full voltage, current, and temperature protection. Plug-and-play for home, shop, farm, or emergency—installed in minutes.
