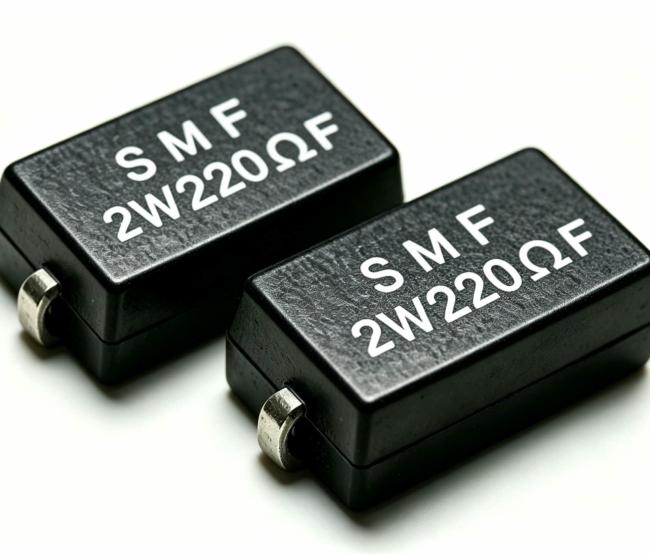

2WL 1% precision AEC-Q200 Qualified Power Metal Film Chip Resistor for Automotive Electronics
- Flameproof UL94V0 molded package with excellent heat and humidity resistance
- Designed for automatic SMT surface mounting processes
- Excellent mechanical strength and electrical stability
- Cost-effective assembly solution for industrial electronics
- AEC-Q200 qualified for automotive applications
The SMF-L Series Power Metal Film Chip Resistors are designed for automotive electronics, EV control systems, industrial automation equipment, and power supply applications that require stable and reliable high power SMD resistors.
Built with advanced metal film technology and a flameproof UL94V0 molded structure, this metal film chip resistor series delivers excellent electrical stability, heat resistance, and moisture resistance under continuous high-load operating conditions. The SMT-compatible design also supports automated assembly processes, helping manufacturers in Japan and Korea improve production efficiency and reduce assembly costs.
As an automotive grade resistor, the SMF-L Series is AEC-Q200 qualified and suitable for demanding automotive and industrial applications including electric vehicle systems, motor drives, power modules, and industrial control equipment. Compared with standard chip resistors, the series provides enhanced insulation performance and a maximum working voltage of up to 500V for high-reliability electronic systems.
With a temperature coefficient of ±100ppm/℃ and an operating temperature range from -55℃ to +150℃, this high power SMD resistor maintains stable resistance performance even in harsh environments. The product is especially suitable for the Japanese and Korean electronics industries where long-term reliability and stable electrical performance are critical.
| Item | Specification |
|---|---|
| Product Series | SMF-L Series |
| Resistor Type | Power Metal Film Chip Resistor |
| Rated Power | 2WL |
| Resistance Range | 10Ω ~ 2MΩ |
| Resistance Tolerance | ±1% (G) |
| Temperature Coefficient | ±100ppm/℃ |
| Maximum Working Voltage | 500V |
| Operating Temperature Range | -55℃ ~ +150℃ |
| Insulation Resistance | 10,000MΩ |
| Flameproof Rating | UL94V0 |
| Qualification | AEC-Q200 |
| Mounting Type | SMT Surface Mount |
Suitable for EV resistor applications, automotive ECU modules, battery management systems, and onboard power control circuits.
Widely used in industrial controllers, inverter circuits, motor drives, and automation systems.
Applicable to high-power power supplies, LED drivers, DC-DC converters, and power electronics systems.
Optimized for automatic SMT assembly lines to improve manufacturing consistency and productivity.
