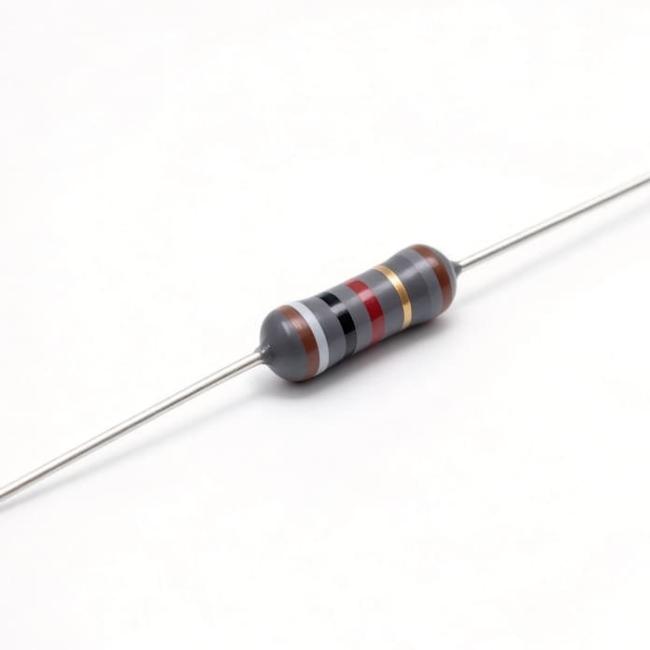

NRSS 1W 5% Tolerance Resistor with Inductance Below 1 μH

Features

1. High power, Small body size.
2. Excellent pulse characteristics.
3. Flameproof painting, resistant to heat & solvents.
4. Very low inductance (less than 1 μH).

Product Positioning and Core Applications

The NRSS 1W anti-pulse non-inductive resistor features a compact construction for electronic circuit designs where pulse characteristics, inductance and flameproof coating properties are relevant to component selection. With a rated power of 1W and a resistance tolerance of ±5%, it provides an option for electronic equipment manufacturers, component buyers and circuit design engineers evaluating resistor specifications.

The NRSS series is specified with inductance below 1 μH and a flameproof coating described as resistant to heat and solvents. As a low inductance resistor, it can be considered for designs requiring evaluation of inductive characteristics. Actual suitability depends on the selected resistance value, operating voltage, ambient temperature and pulse conditions of the application.

Product Specifications

Application Areas

1. Pulse-Related Electronic Circuits

The NRSS 1W pulse resistor can be considered during component selection for electronic circuits where pulse characteristics need to be evaluated. Engineers should verify pulse amplitude, duration, repetition rate and circuit energy conditions before finalizing the component.

2. Power Supply and Electronic Control Circuits

For resistor selection in power supply modules and electronic control boards, the NRSS non-inductive resistor can be assessed against the circuit topology, required resistance and operating voltage. Its exact circuit position and function depend on the equipment design; the product type alone does not establish suitability for every power protection application.

3. Industrial Electronic Equipment

The compact NRSS resistor may be evaluated for control boards and other resistor locations in industrial electronic equipment. Selection should account for ambient temperature, loading conditions, mounting requirements and the expected pulse environment.

4. Electronic Designs Requiring Flameproof Coating Properties

For projects where resistor coating characteristics are part of the component selection criteria, the NRSS series can be evaluated based on its specified flameproof coating. Equipment-level safety requirements, system certifications and actual operating conditions must be verified separately.
