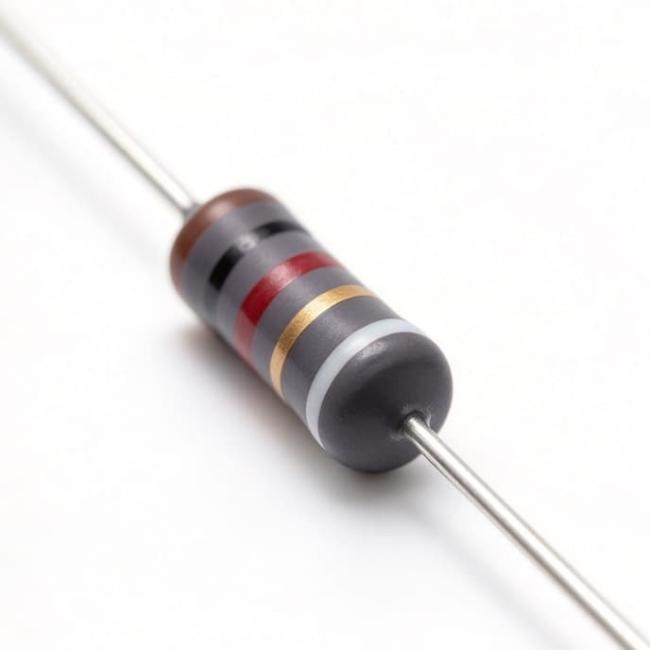

1/2W 5% Anti-Pulse Resistor NRSS Small Non-Inductive Type

1. High power, Small body size.

2. Excellent pulse characteristics.

3. Flameproof painting, resistant to heat & solvents.

4. Very low inductance (less than 1 μH).

The NRSS 1/2W 5% anti-pulse non-inductive resistor is a compact resistor designed for electronic circuit applications where pulse characteristics and low inductance are important selection considerations. It features flameproof coating with resistance to heat and solvents, making it a candidate component for power supply circuits, electronic equipment, and pulse-related circuit designs.

The NRSS non-inductive resistor can be considered for positions in power supply circuits where pulse characteristics and low inductance are relevant to component selection. Engineers should evaluate circuit voltage, current, transient waveform, and rated power before choosing a resistance value.

Its small-type construction makes the NRSS series a candidate for compact electronic assemblies and PCB component selection. Layout evaluation should include pad design, thermal conditions, and clearance from adjacent components.

For circuits exposed to pulse loads, the NRSS series can be evaluated as an anti-pulse resistor option. Suitability depends on pulse amplitude, duration, repetition rate, and energy.

The series may be evaluated for industrial control and general electronic equipment according to operating temperature, resistance value, and electrical load requirements.
